SIPLACE 80S/F/G Service Manual 9 Revolver Head Edition 04/97 9 - 145 9.19.6 Replacing the BERO Fig. 9. 19.3 B ERO of screwdriver 2 Key to F ig. 9 .19.3 ● Loosen t he M 1.6 x 4 fill ister he ad scr ews (see it em 3 in Fig…
9 Revolver Head SIPLACE 80S/F/G Service Manual
Edition 04/97
9 - 144
●
Fix the stop with the cover plate.
PLEASE NOTE:
When assembling the head, make sure that you align the screwdriver blade (see item 4 in Fig. 9.19.2)
with the 30° mark. If it is not aligned, the star will not be able to turn the segments after assembly.
●
Check the functioning of screwdriver 2 with reference to the adjustment instructions and using the SITEST
program.
9.19.4 Replacing the stop
●
Loosen the two M 1.6 x 8 countersunk head screws for fixing the cover plate (see item 3a in Fig. 9.19.1).
●
Reverse the above sequence to reassemble.
When assembling the head, make sure that you align the screwdriver blade (see item 4 in Fig. 9.19.2)
with the 30° mark. If it is not aligned, the star will not be able to turn the segments after assembly.
●
Check the functioning of screwdriver 2 with reference to the adjustment instructions and using the SITEST
program.
9.19.5 Replacing toothed wheel 1
Dismantling and assembly are described in Section 9.19.3 on page 9 - 141. When fitting the toothed wheel,
make sure that you align the screwdriver blade with the toothed wheel as shown in Fig. 9.19.2 on page 9 -
143.
SIPLACE 80S/F/G Service Manual 9 Revolver Head
Edition 04/97
9 - 145
9.19.6 Replacing the BERO

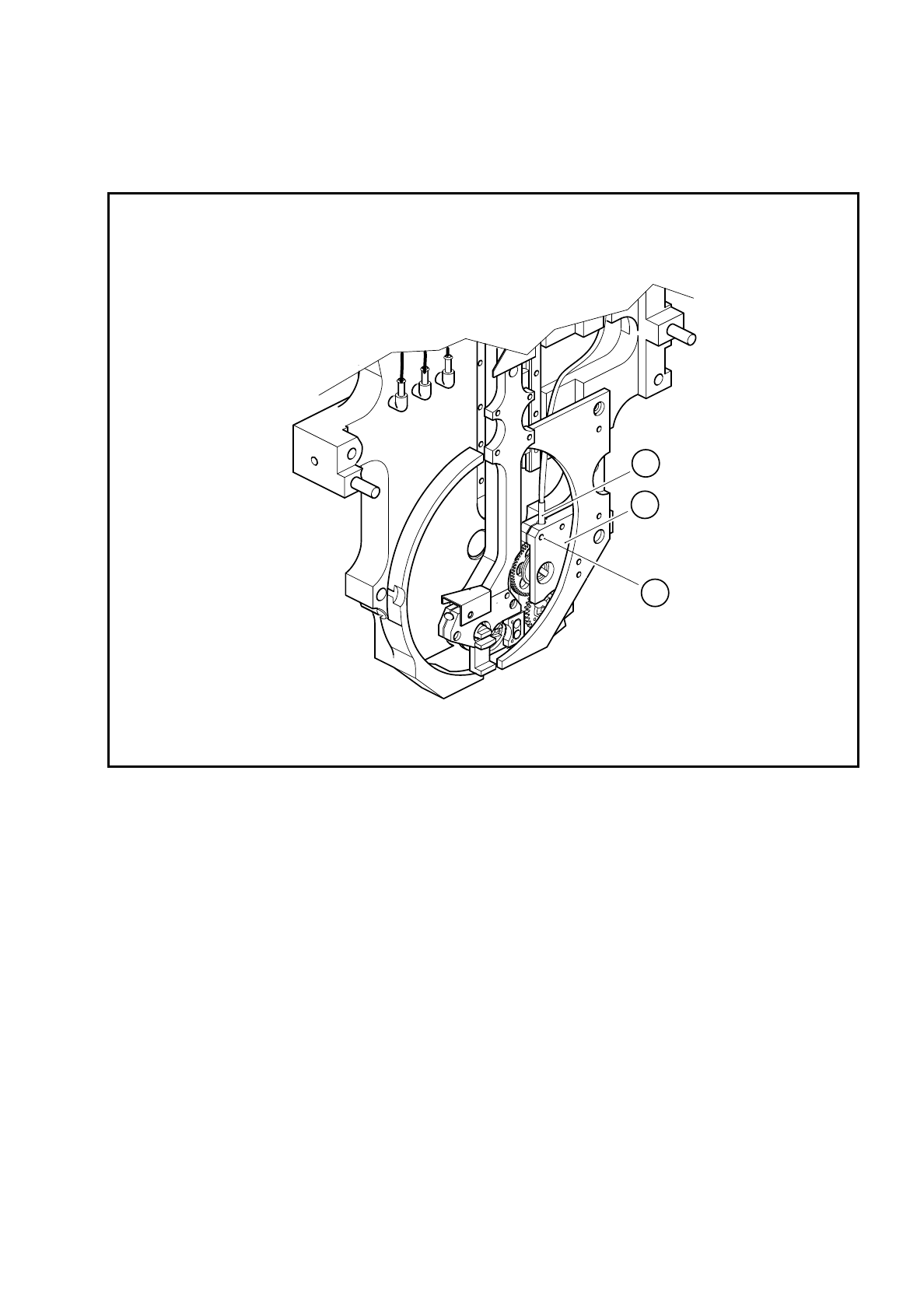

Fig. 9.19.3 BERO of screwdriver 2
Key to Fig. 9.19.3
●
Loosen the M 1.6 x 4 fillister head screws (see item 3 in Fig. 9.19.3) for clamping the BERO.
●
Pull the connecting wires out of the plug.
●
Connect the BERO cable to the plug using the locking clip contacts as shown in the following diagram:
1 3RG 4603-2AB00/3.0 mm/SN = 0.6 mm/1S BERO
2 Toothed wheel holder
3 M 1.6 x 4 fillister head screws for clamping the BERO
3
2
1
9 Revolver Head SIPLACE 80S/F/G Service Manual
Edition 04/97
9 - 146

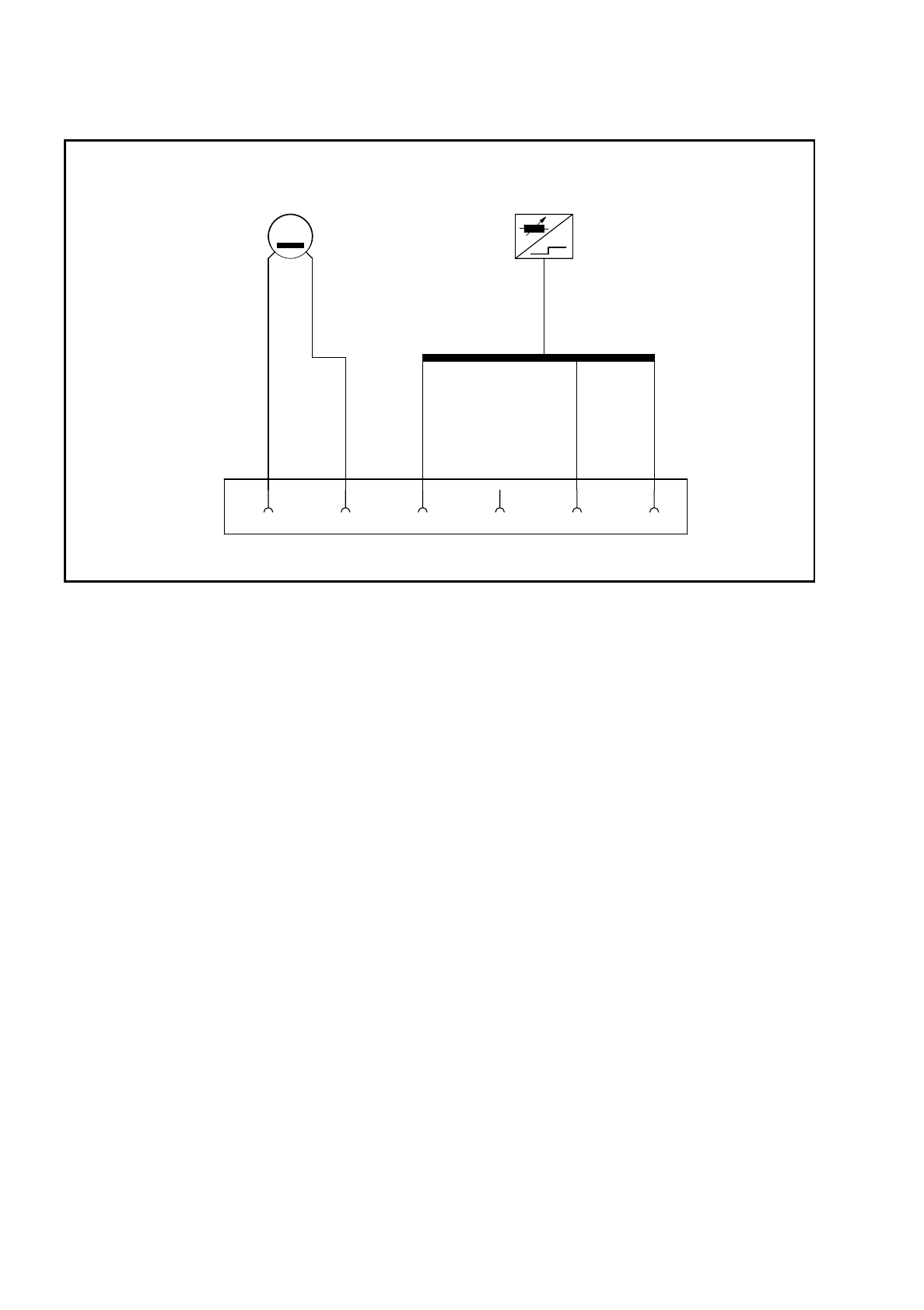

Fig. 9.19.4 Connecting the BERO to the plug
Key to Fig. 9.19.4
●
Set the operating distance to 0.2 mm as described for screwdriver 1 (see Fig. 9.18.5 on page 9 - 138 and
the text below).
●
Clamp the BERO in this position.
●
When assembling the head, make sure that you align the screwdriver blade (see item 4 in Fig. 9.19.2 on
page 9 - 143) with the 30° mark. If it is not aligned, the star will not be able to turn the segments after
assembly.
●
After assembly, check the functioning of the screwdriver with reference to the adjustment instructions and
using the SITEST program.
2 BERO cable: brown B1 BERO
3 BERO cable: blue X1 Plug for slot X17 on conversion board Y0005
6 BERO cable: black (see Fig. 9.12.1 on page 9 - 98)
M
+-
B1
X1
456123
