OPERATIONAL BENEFITS Direct solenoid and solenoid pilot operated valves HOW TO ORDER 147 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. 36 32 37 38 33 34 52 67 46 44 47 42 400 48 92 93…

10 0

MONTHS

WARRANTY

PRODUCTION

TESTED

146

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

Series

SPOOL CONFIGURATIONS

REGULATOR CONFIGURATIONS

MANIFOLD WITH REGULATOR - SINGLE PRESSURE

MANIFOLD WITH REGULATOR - DUAL PRESSURE

SINGLE REGULATOR - SINGLE PRESSURE

Pressure supplied to the individual or manifold base passes through the regulator.

Regulated pressure is supplied to the pressure path of the valve.

Note: For both single and dual pressure, air supply to the pilot system is never regulated.

DUAL REGULATOR - DUAL PRESSURE

Pressure supplied from each regulator is divided in the block.

Regulated pressure from “A” regulator supplies cylinder port “A”.

Regulated pressure from “B” regulator supplies cylinder port “B”.

Dual pressure regulators require dual pressure spool in valve.

B A

EXHAINBEXH

2 POSITION SINGLE PRESSURE

SHOWN WITH "B" OPERATOR ENERGIZED

B A

INAEXHBIN

2 POSITION DUAL PRESSURE

SHOWN WITH "B" OPERATOR ENERGIZED

B A

EXHAINBEXH

3 POSITION OPEN CENTER

3 POSITION SINGLE PRESSURE, PRESSURE CENTER

B A

EXHAINBEXH

3 POSITION CLOSED CENTER

SPRING CENTERING

EXH. EXH.IN. AB INEXH. ABIN

OPERATIONAL BENEFITS

Direct solenoid and solenoid pilot operated valves

HOW TO ORDER

147

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

400

ISO 1

ISO 2

ISO 3

48P

ISO 01

ISO 02

Series

Function Port size Flow (Max) Individual mounting Series

5/2, 5/3

1/8” - 1/4” - 3/8”

1.2 C

Sub-base

non “plug-in”

1. The 4-way pilot develops maximum shifting

forces both ways.

2. Memory spring available.

3. Balanced spool, immune to variations of

pressure, also provides high flow.

4. Short stroke with high flow.

5. Bonded seal spool with minimum friction,

shifting in a glass-like finished bore.

6. Pilot with balanced poppet, high flow; short

and consistent response times.

DM-D

XXX

SOLENOID OPERATOR

Voltage

110 /50, 120/60 (2.9W)

220/50, 240/60 (2.9W)

24/60 (2.9W)

24 VDC (1.8W)

24 VDC (5.4W)

24 VDC (12.7W)

Wire length

18” (Flying leads)

24” (Flying leads)

Connector

Manual operator

Non-locking recessed

Locking recessed

Electrical connection

Flying leads

Flying leads with diode

Flying leads with M.O.V.

Flying leads with ground

Rectangular connector

Rectangular connector with light

Square connector

XX X X XX

* Other options available, see page 309.

Other options available for the 92 series valves, see page 155.

5/2

Single operator

92B-ABA-000-DM-D

XXX

92B-ABA-AAG-DM-D

XXX

92B-ABA-BAG-DM-D

XXX

92B-ABA-CAG-DM-D

XXX

92B-ABA-AAH-DM-D

XXX

92B-ABA-BAH-DM-D

XXX

92B-ABA-CAH-DM-D

XXX

5/2

Double operator

92B-BBA-000-DM-D

XXX

92B-BBA-AAG-DM-D

XXX

92B-BBA-BAG-DM-D

XXX

92B-BBA-CAG-DM-D

XXX

92B-BBA-AAH-DM-D

XXX

92B-BBA-BAH-DM-D

XXX

92B-BBA-CAH-DM-D

XXX

5/3

Closed center

92B-EBA-000-DM-D

XXX

92B-EBA-AAG-DM-D

XXX

92B-EBA-BAG-DM-D

XXX

92B-EBA-CAG-DM-D

XXX

92B-EBA-AAH-DM-D

XXX

92B-EBA-BAH-DM-D

XXX

92B-EBA-CAH-DM-D

XXX

5/3

Open center

92B-FBA-000-DM-D

XXX

92B-FBA-AAG-DM-D

XXX

92B-FBA-BAG-DM-D

XXX

92B-FBA-CAG-DM-D

XXX

92B-FBA-AAH-DM-D

XXX

92B-FBA-BAH-DM-D

XXX

92B-FBA-CAH-DM-D

XXX

5/3

Pressure center

92B-GBA-000-DM-D

XXX

92B-GBA-AAG-DM-D

XXX

92B-GBA-BAG-DM-D

XXX

92B-GBA-CAG-DM-D

XXX

92B-GBA-AAH-DM-D

XXX

92B-GBA-BAH-DM-D

XXX

92B-GBA-CAH-DM-D

XXX

Port size

Valve less base

1/8” NPTF

1/4” NPTF

3/8” NPTF

1/8” NPTF

1/4” NPTF

3/8” NPTF

Pilot air

Internal

External

SINGLE PRESSURE MODELS

5/2

Single operator

92B-CBA-000-DM-D

XXX

92B-CBA-AAG-DM-D

XXX

92B-CBA-BAG-DM-D

XXX

92B-CBA-CAG-DM-D

XXX

92B-CBA-AAH-DM-D

XXX

92B-CBA-BAH-DM-D

XXX

92B-CBA-CAH-DM-D

XXX

5/2

Double operator

92B-DBA-000-DM-D

XXX

92B-DBA-AAG-DM-D

XXX

92B-DBA-BAG-DM-D

XXX

92B-DBA-CAG-DM-D

XXX

92B-DBA-AAH-DM-D

XXX

92B-DBA-BAH-DM-D

XXX

92B-DBA-CAH-DM-D

XXX

Port size

Valve less base

1/8” NPTF

1/4” NPTF

3/8” NPTF

1/8” NPTF

1/4” NPTF

3/8” NPTF

Pilot air

Internal

External

DUAL PRESSURE MODELS (REQUIRE SANDWICH REGULATOR – SEE "REGULATORS" SECTION)

Above models are shown with side ports.

10 0

MONTHS

WARRANTY

PRODUCTION

TESTED

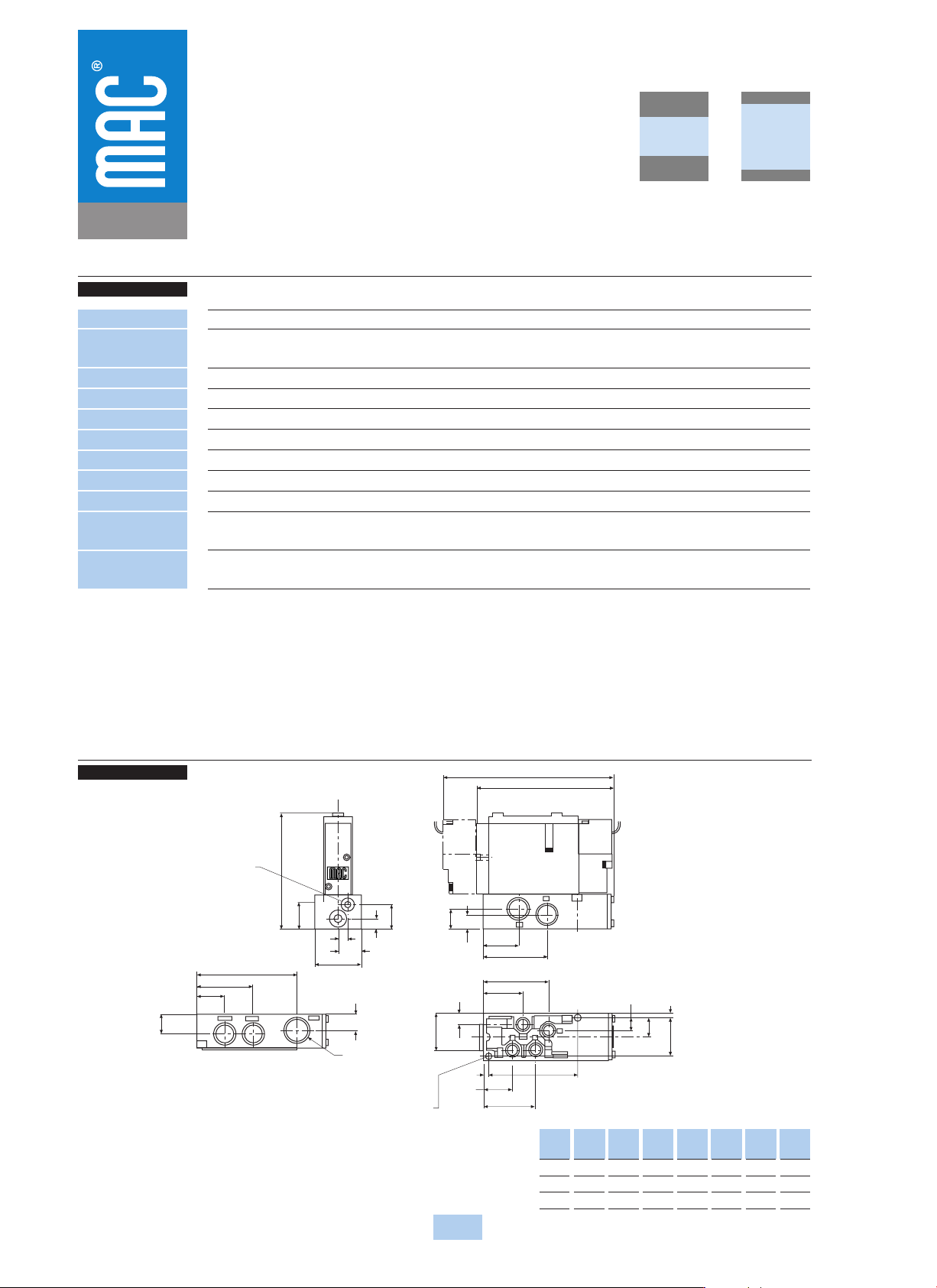

DIMENSIONS

TECHNICAL DATA

Dimensions shown are metric (mm)

148

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

Series

Fluid :

Pressure range :

Lubrication :

Filtration :

Temperature range :

Flow :

Coil :

Voltage range :

Protection :

Power :

Response times :

Compressed air, vacuum, inert gases

Internal pilot : 20 to 120 PSI 3 position : 35 to 120 PSI

External pilot : vacuum to 120 PSI 3 position : 35 to 120 PSI

Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)

40 µ

0°F to 120°F (-18°C to +50°C)

1/8": (1.0 C

) – 1/4": (1.1 C

) – 3/8": (1.2 C

)

Class A continuous duty, #22 AWG x 18 lead wire

-15% to +10% of nominal voltage

Consult factory

~Inrush 7.6 VA Holding : 4.8 VA

= 1.8 to 12.7 W

24V=/5.4W Energize : 8 ms De-energize : 7 ms

120/60 Energize : 7-13 ms De-energize : 12-20 ms

• BSPP threads • Sandwich flow control: FC92B-CA

• Pilot valve DM-Dxxx-xxx • Valve blanking plate: M-92002

• Pressure seal between valve and base : 16543. • Mounting screws valve to base (X2) : 35050.

Options :

Spare parts :

97,5

23.0

TYP.

6.0

20.0

40.0

9.0

21.0

55.6

33.3

15.0

4.0

16.0

32.0

76.0

9.5

31.0

4.0

43.8

24.5

84.5

14.5

145.3

115.8

1/8" external

pilot port

Double operator

Single operator

1/2" NPSM

conduit connection

4.25 dia.

Mtg Holes

DIM.

1/8"

1/4"

3/8"

12.5

12.0

18.0

17.0

31.0

30.0

54.0

23.5

46.5

47.5

18.0

17.0
