18 18 10 0 % 10 0 % 10 0 % 10 0 % MONTHS W ARRANTY OF PRODUCTION TESTED DIMENSIONS TECHNICAL DATA Dimensions shown are metric (mm) 266 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Se…
HOW TO ORDER
265
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B
Series PR93A
Sandwich pressure regulator with manual adjust knob
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
Gage port only (plugged)
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR93A-GAAA
PR93A-GABA
PR93A-GACA
Regulator B end
Single pressure
PR93A-GBAA
PR93A-GBBA
PR93A-GBCA
Regulator A
*
end with
by-pass end plate B end
PR93A-GCAA
PR93A-GCBA
PR93A-GCCA
Regulator B
*
end with
by-pass end plate A end
PR93A-GDAA
PR93A-GDBA
PR93A-GDCA
Regulator
*
both ends
PR93A-GEAA
PR93A-GEBA
PR93A-GECA
REGULATORS FOR "PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
* For use with dual pressure valves.
Note: Regulating range for above models is 0 to 120 PSI. For other ranges, see technical data page.
Note: Above models may be used with either single or double solenoid valves.
Gage
Gage port only (plugged)
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR93A-HAAA
PR93A-HABA
PR93A-HACA
Regulator B end
Single pressure
PR93A-HBAA
PR93A-HBBA
PR93A-HBCA
Regulator A
*
end with
by-pass end plate B end
PR93A-HCAA
PR93A-HCBA
PR93A-HCCA
Regulator B
*
end with
by-pass end plate A end
PR93A-HDAA
PR93A-HDBA
PR93A-HDCA
Regulator
*
both ends
PR93A-HEAA
PR93A-HEBA
PR93A-HECA
REGULATORS FOR "NON PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
PR93A-
X
0
XX
OPTIONS
J Knob
C Slotted stem
M Slotted stem with locknut
Regulator less sandwich block
PR93A-
XXXX
A Slotted stem, plug-in
B Slotted stem, non plug-in
K Slotted stem w/ locknut, plug-in
L Slotted stem w/ locknut, non plug-in
Other adjustment
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED

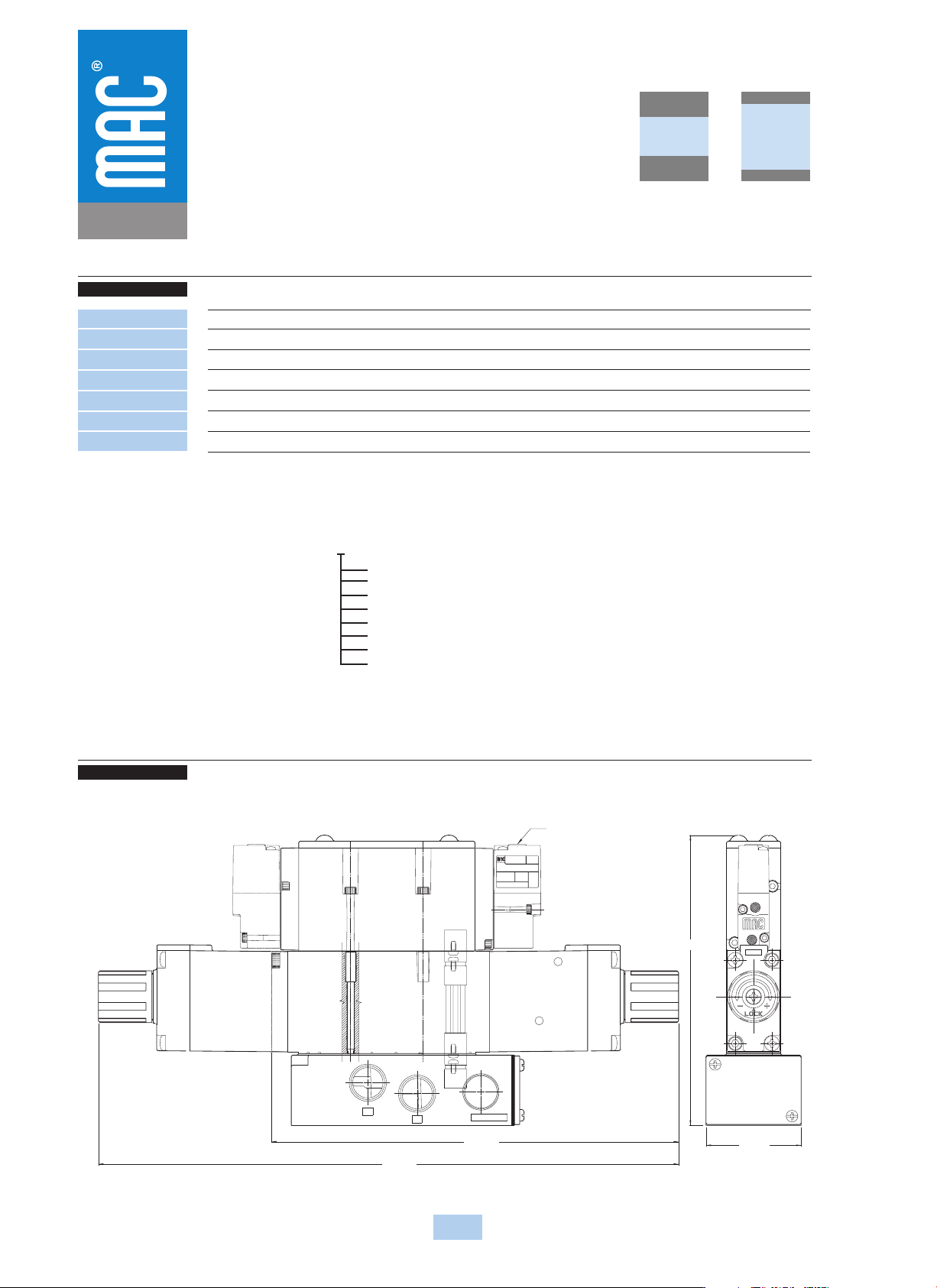

DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
266
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series PR93A
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
2.4 C
v
IN
EX
CONDUIT
MODIF.
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI.USA
MODEL
ELECTRICAL
WATTS
VAC TO 120 PSI
GAGE
347.30
243.65
SINGLE REGULATOR
APPROX. WITH
DOUBLE REGULATOR
APPROX. WITH
173.60
APPROX.
57.00
MANUAL
OPERATOR
• Regulator end plate kit :R-93004 • Regulator by-pass end plate kit : R-93004-01.
• Gage kit 0 – 160 PSI : N-92006-01 • Gage kit 0 – 100 PSI : N-92006-02
• Gage kit 60 PSI : N-92006-03
• Pressure range: PR93A-xxxA (A 0 to 120 PSI)
B 0 to 80 PSI
C 0 to 30 PSI
D 0 to 120 PSI “A” end, 0 to 80 PSI “B” end
E 0 to 120 PSI “B” end, 0 to 80 PSI “A” end
F 0 to 120 PSI “A” end, 0 to 30 PSI “B” end
G 0 to 120 PSI “B” end, 0 to 30 PSI “A” end
H 0 to 80 PSI “A” end, 0 to 30 PSI “B” end
J 0 to 80 PSI “B” end, 0 to 30 PSI “A” end
Spare parts :
Option:
HOW TO ORDER
267
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B

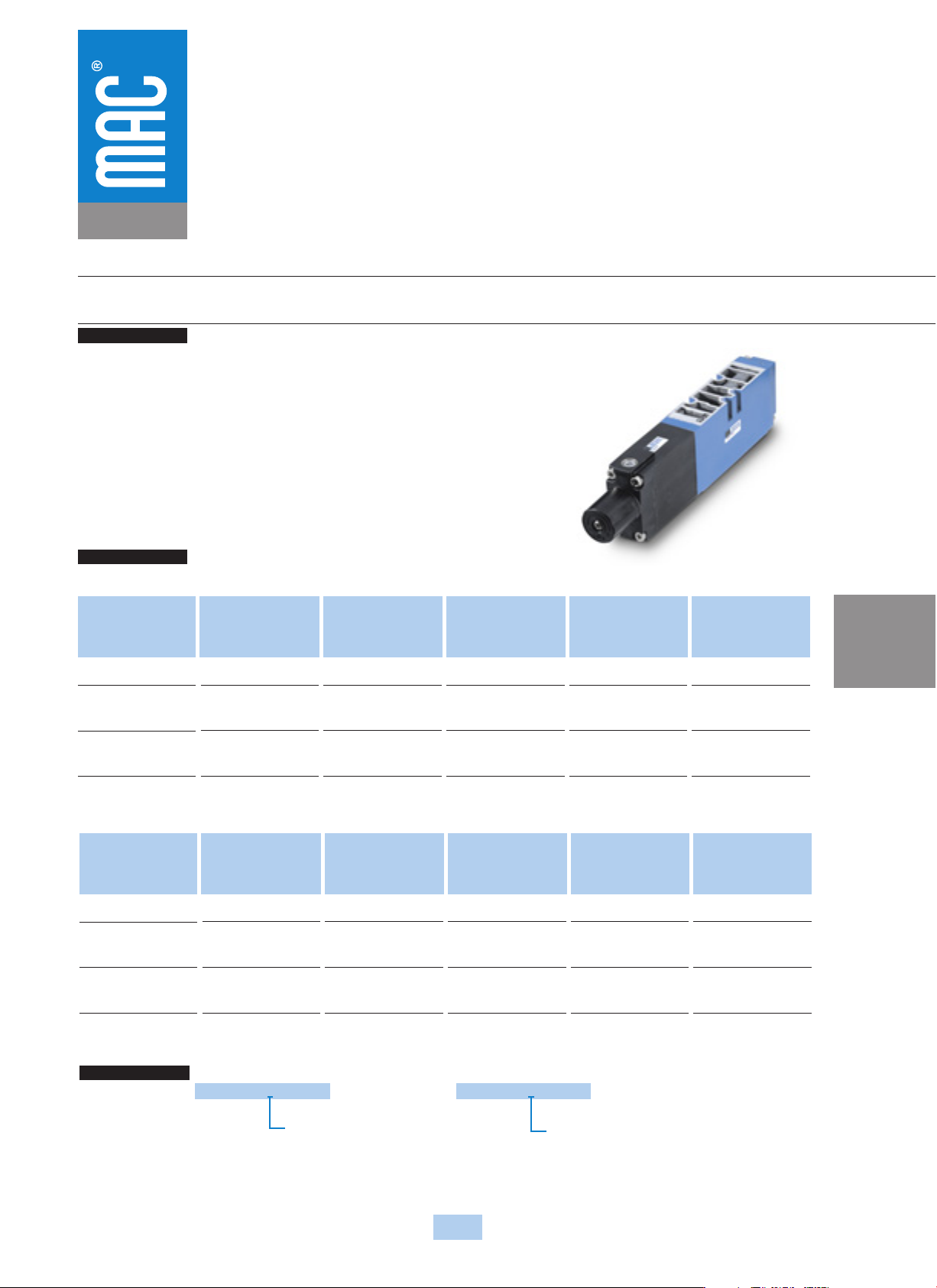

Series PR93A
Sandwich selector pressure regulator with manual adjust knob
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
Gage port only (plugged)
Gage with face
perpendicular to
manual operator
Gage with face
parallel to
manual operator
Select to A port
Regulator A end
By-pass plate B end
PR93A-GPAA
PR93A-GPBA
PR93A-GPCA
Select to B port
Regulator B end
By-pass plate A end
PR93A-GRAA
PR93A-GRBA
PR93A-GRCA
Select to A port Reg. both ends
A end low press.
B end high press.
PR93A-GSAA
PR93A-GSBA
PR93A-GSCA
Select to B port Reg. both ends
A end high press.
B end low press.
PR93A-GTAA
PR93A-GTBA
PR93A-GTCA
REGULATORS FOR "PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
PR93A-
X
0
XX
OPTIONS
J Knob
C Slotted stem
M Slotted stem with locknut
Regulator less sandwich block
PR93A-
XXXX
A Slotted stem, plug-in
B Slotted stem, non plug-in
K Slotted stem w/ locknut, plug-in
L Slotted stem w/ locknut, non plug-in
Other adjustment
Gage
Gage port only (plugged)
Gage with face
perpendicular to
manual operator
Gage with face
parallel to
manual operator
Select to A port
Regulator A end
By-pass plate B end
PR93A-HPAA
PR93A-HPBA
PR93A-HPCA
Select to B port
Regulator B end
By-pass plate A end
PR93A-HRAA
PR93A-HRBA
PR93A-HRCA
Select to A port Reg. both ends
A end low press.
B end high press.
PR93A-HSAA
PR93A-HSBA
PR93A-HSCA
Select to B port Reg. both ends
A end high press.
B end low press.
PR93A-HTAA
PR93A-HTBA
PR93A-HTCA
REGULATORS FOR "NON PLUG-IN" VALVES
Notes: - Regulating range for above models is 0 to 120 PSI. For other ranges, see technical data page
- Use single pressure valve for all above models.
Note: Above models may be used with either single or double solenoid valves.
