18 18 10 0 % 10 0 % 10 0 % 10 0 % MONTHS W ARRANTY OF PRODUCTION TESTED DIMENSIONS TECHNICAL DATA Dimensions shown are metric (mm) 260 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Se…
HOW TO ORDER
259
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B
Series PR92C
Sandwich pressure regulator with manual adjust knob
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
No Gage
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR92C-JAAA
PR92C-JABA
PR92C-JACA
Regulator B end
Single pressure
PR92C-JBAA
PR92C-JBBA
PR92C-JBCA
Regulator A
*
end with
by-pass end plate B end
PR92C-JCAA
PR92C-JCBA
PR92C-JCCA
Regulator B
*
end with
by-pass end plate A end
PR92C-JDAA
PR92C-JDBA
PR92C-JDCA
Regulator
*
both ends
PR92C-JEAA
PR92C-JEBA
PR92C-JECA
REGULATORS FOR “PLUG-IN” VALVES (CODED FOR KNOB ADJUSTMENT)
Note: above models are coded for use with single solenoid valves
PR92C-
X
0
XX
OPTIONS
M Knob
D Slotted stem
S Slotted stem with locknut
Regulator less sandwich block
PR92C-
XX
XXX
A Slotted stem, single solenoid
B Slotted stem, double solenoid
C Slotted stem, non plug-in
K Knob, double solenoid
N Slotted stem w/ locknut, single solenoid
P Slotted stem w/ locknut, double solenoid
R Slotted stem w/ locknut, non plug-in
Other adjustment
Gage
No Gage
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR92C-LAAA
PR92C-LABA
PR92C-LACA
Regulator B end
Single pressure
PR92C-LBAA
PR92C-LBBA
PR92C-LBCA
Regulator A
*
end with
by-pass end plate B end
PR92C-LCAA
PR92C-LCBA
PR92C-LCCA
Regulator B
*
end with
by-pass end plate A end
PR92C-LDAA
PR92C-LDBA
PR92C-LDCA
Regulator
*
both ends
PR92C-LEAA
PR92C-LEBA
PR92C-LECA
REGULATORS FOR “NON PLUG-IN” VALVES (CODED FOR KNOB ADJUSTMENT)
*
For use with dual pressure valves.
Notes: - Regulating range for above models is 0 to 120 PSI. For other ranges, see technical data page.
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED

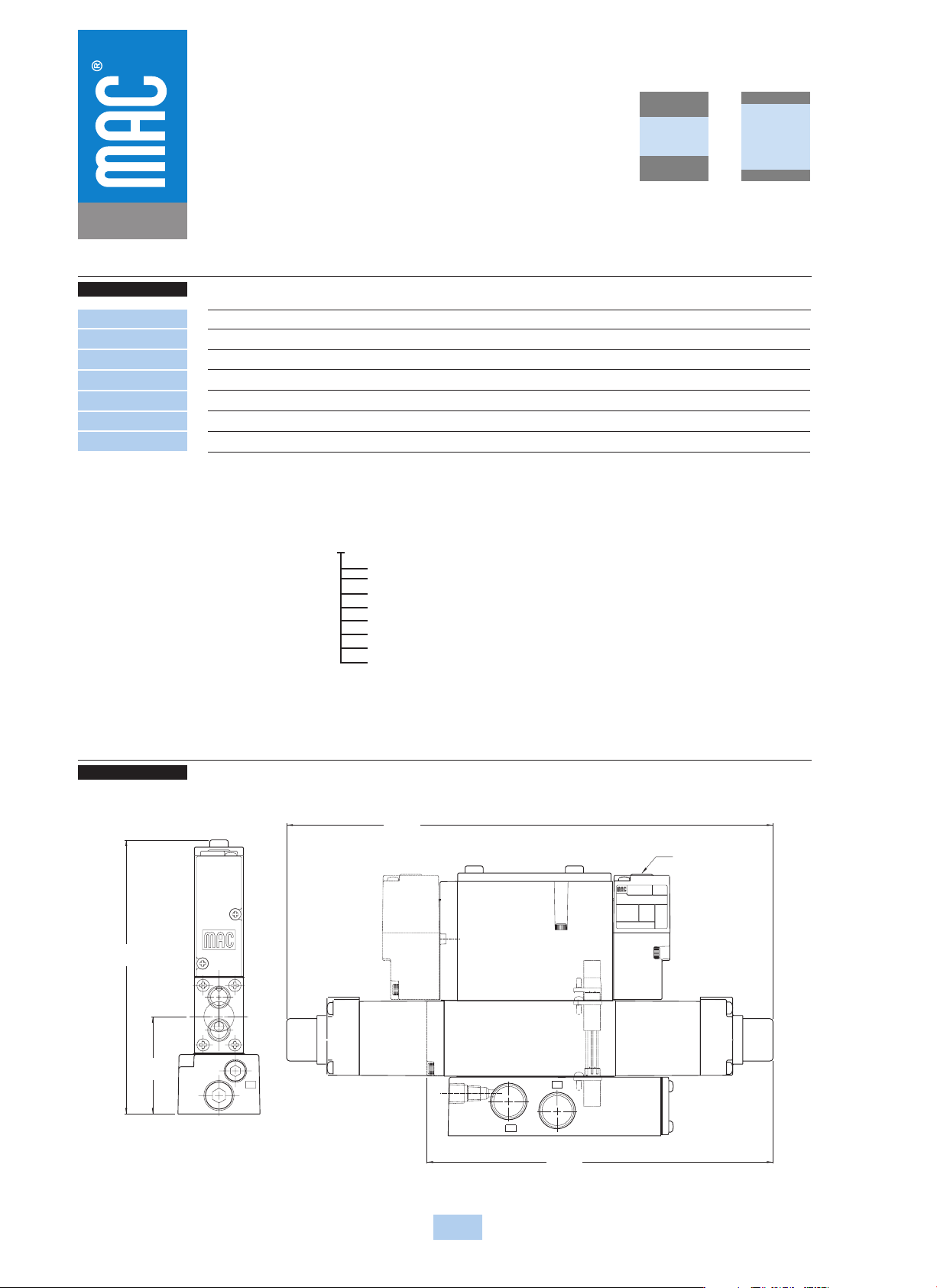

DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
260
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series PR92C
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
0.8 C
v
EX
IN
VAC TO 120 PSI
WATTS
ELECTRICAL
MODEL
MODIF.
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI. USA
171.5
W/ DOUBLE REGULATOR
APPROX.
241.0
EP
GAGE
PILOT
APPROX.
47.5
APPROX.
135.0
MANUAL
OPERATOR
• R-92003 : end plate kit • R-92003-01: by-pass end plate kit
• Gage kit 0 – 160 PSI : N-92006-01 • Gage kit 0 – 100 PSI : N-92006-02
• Gage kit 0 – 60 PSI : N-92006-03
• Pressure range: PR92C-xxxA (A 0 to 120 PSI)
B 0 to 80 PSI
C 0 to 30 PSI
D 0 to 120 PSI “A” end, 0 to 80 PSI “B” end
E 0 to 120 PSI “B” end, 0 to 80 PSI “A” end
F 0 to 120 PSI “A” end, 0 to 30 PSI “B” end
G 0 to 120 PSI “B” end, 0 to 30 PSI “A” end
H 0 to 80 PSI “A” end, 0 to 30 PSI “B” end
J 0 to 80 PSI “B” end, 0 to 30 PSI “A” end
Spare parts :
Options:
HOW TO ORDER
261
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B

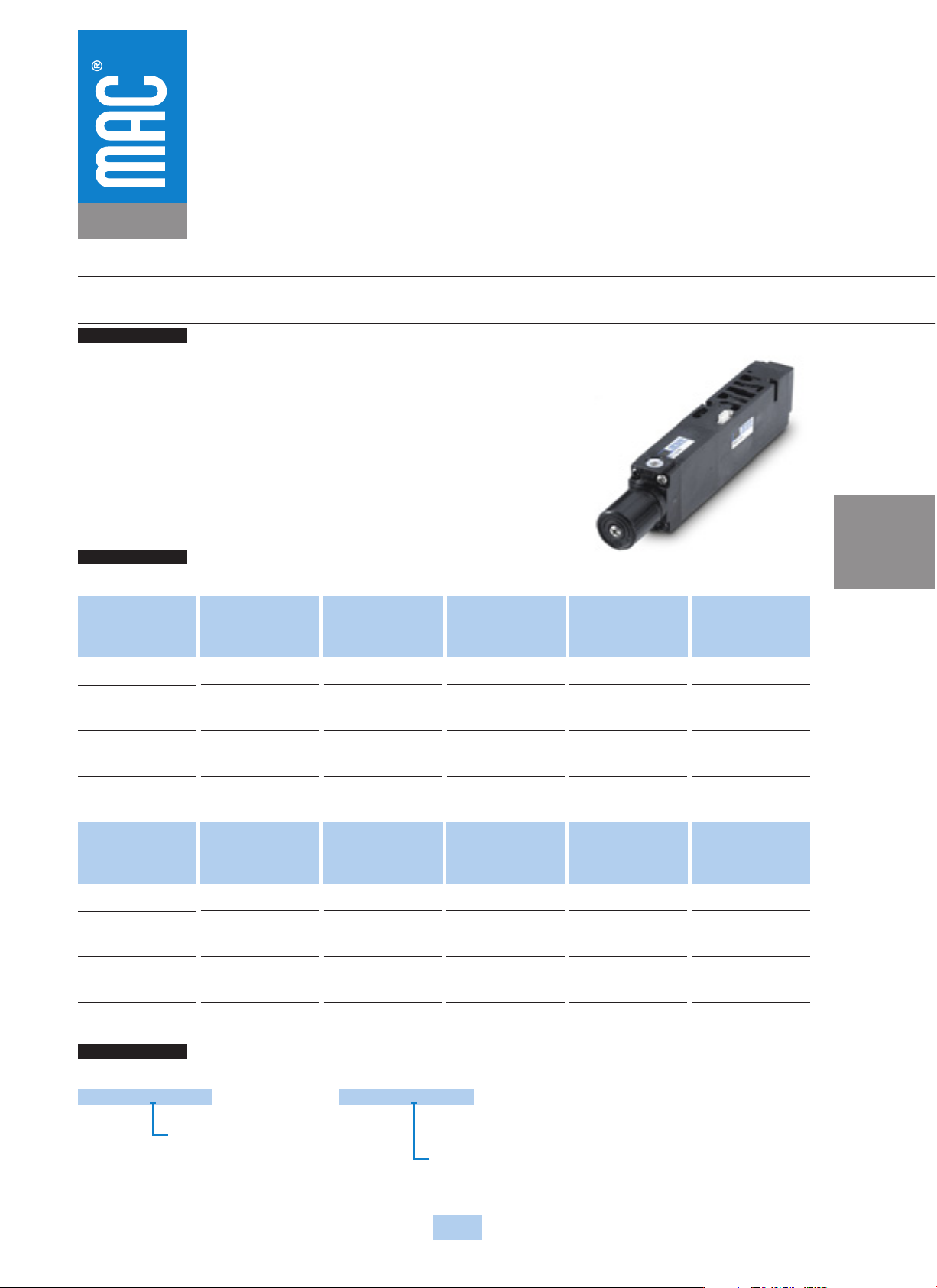

Series PR92C
Sandwich selector pressure regulator with manual adjust knob
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
No Gage
Gage with face
perpendicular to
manual operator
Gage with face
parallel to
manual operator
Select to A port
Regulator A end
By-pass plate B end
PR92C-JPAA
PR92C-JPBA
PR92C-JPCA
Select to B port
Regulator B end
By-pass plate A end
PR92C-JRAA
PR92C-JRBA
PR92C-JRCA
Select to A port Reg. both ends
A end low press.
B end high press.
PR92C-JSAA
PR92C-JSBA
PR92C-JSCA
Select to B port Reg. both ends
A end high press.
B end low press.
PR92C-JTAA
PR92C-JTBA
PR92C-JTCA
REGULATORS FOR "PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
Note: above models are coded for use with single solenoid valves
Notes: - Regulating range for above models is 0 to 120 PSI. For other ranges, see technical data page
- Use single pressure valve for all above models.
Gage
No Gage
Gage with face
perpendicular to
manual operator
Gage with face
parallel to
manual operator
Select to A port
Regulator A end
By-pass plate B end
PR92C-LPAA
PR92C-LPBA
PR92C-LPCA
Select to B port
Regulator B end
By-pass plate A end
PR92C-LRAA
PR92C-LRBA
PR92C-LRCA
Select to A port Reg. both ends
A end low press.
B end high press.
PR92C-LSAA
PR92C-LSBA
PR92C-LSCA
Select to B port Reg. both ends
A end high press.
B end low press.
PR92C-LTAA
PR92C-LTBA
PR92C-LTCA
REGULATORS FOR "NON PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
PR92C-
X
0
XX
OPTIONS
M Knob
D Slotted stem
S Slotted stem with locknut
Regulator less sandwich block
PR92C-
XXXX
A Slotted stem, single solenoid
B Slotted stem, double solenoid
C Slotted stem, non plug-in
K Knob, double solenoid
N Slotted stem w/ locknut, single solenoid
P Slotted stem w/ locknut, double solenoid
R Slotted stem w/ locknut, non plug-in
Other adjustment
