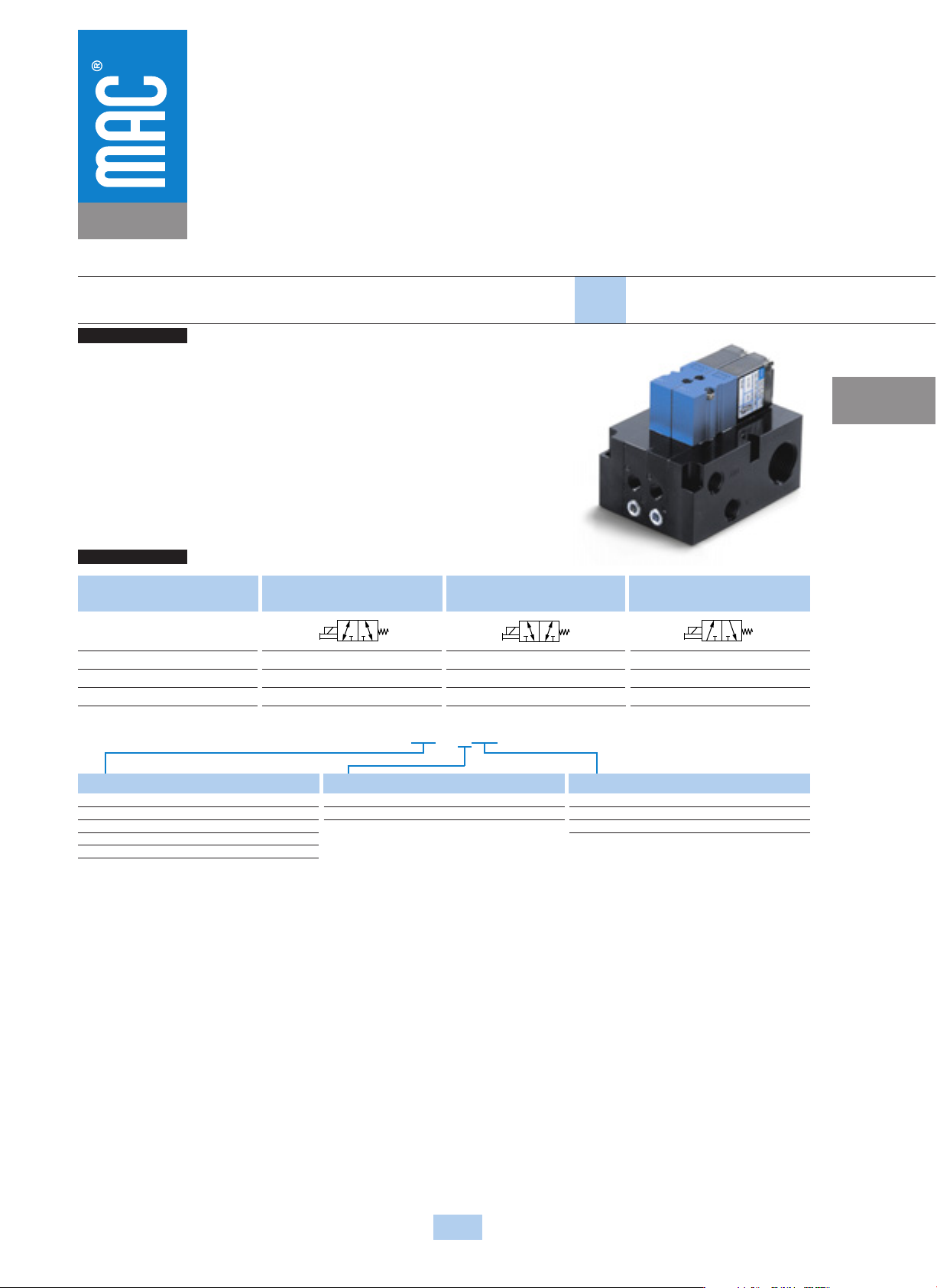

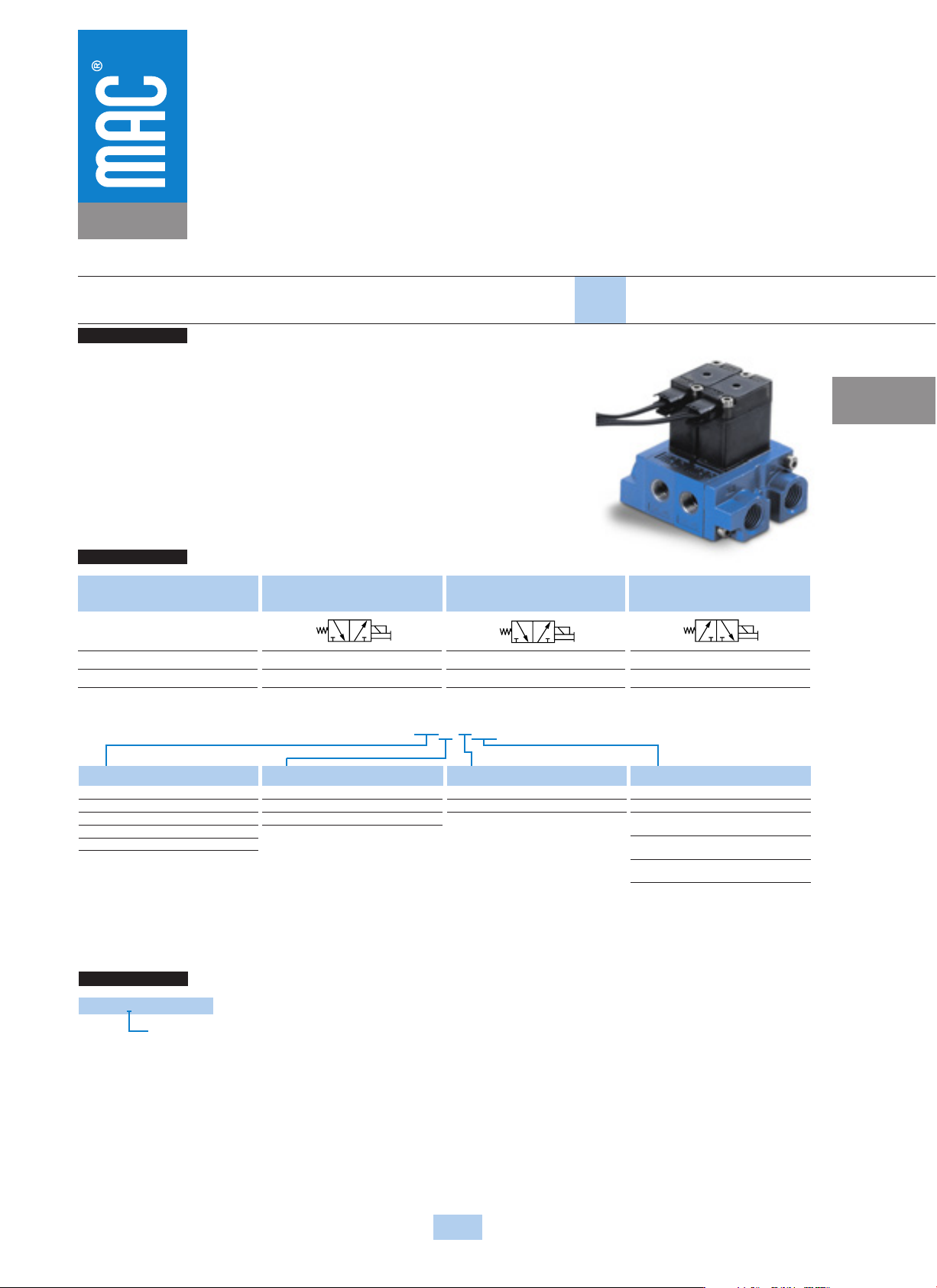

Function Port size Flow (Max) Individual mounting Series
OPERATIONAL BENEFITS
Direct solenoid and solenoid pilot operated valves
HOW TO ORDER
25
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Series
36
3/2 1/8" – # 10-32 0.3 C
v
Stacking
1. Balanced poppet, immune to variations of
pressure.
2. Patented solenoid develops high shifting
forces.
3. Short stroke with high flow.
4. Higher forces result in lower wattages for
given flow.
5. Powerful return spring.
Port size
1/8” NPTF
# 10-32
NC only stacking
36A-SAB-J
XXX-XXX
36A-SBB-J
XXX-XXX
NC stacking
Universal poppet
36A-SAC-J
XXX-XXX
36A-SBC-J
XXX-XXX
NO stacking
Universal poppet
36A-SAD-J
XXX-XXX
36A-SBD-J
XXX-XXX
CYL
IN EXH
CYL
INEXH
CYL
INEXH
J
XXX
-
XXX
*
(-G) Add "G" for ground
SOLENOID OPERATOR
®
Voltage
AA
120 VAC (5.4W)
DA
24 VDC (5.4W)
DB
12 VDC (5.4W)
DC
24 VDC (2.4W)
DD
12 VDC (2.4W)
Lead wire length
A
18”
B
24”
C
36”
Manual operator
1
Non-locking recessed
2
Locking recessed
Electrical connection
BA
Flying leads
GA
MAC JAC solenoid plug-in
GB
MAC JAC solenoid plug-in
with diode
GD
MAC JAC solenoid plug-in
with light
GG
MAC JAC solenoid plug-in
with rectifier
XX X X XX
* Other options available, see page 317.
Note : - AC voltage requires connector with rectifier.
- With the MAC JAC, washdown capability is possible. Consult
factory for washdown modification number.
End plate kit required (port size 1/4") : M-36001-01.
36A-SAB-J
XXX
-
XXX
BODY TYPE OPTIONS
S Stacking body
T Stacking body with bottom inlet

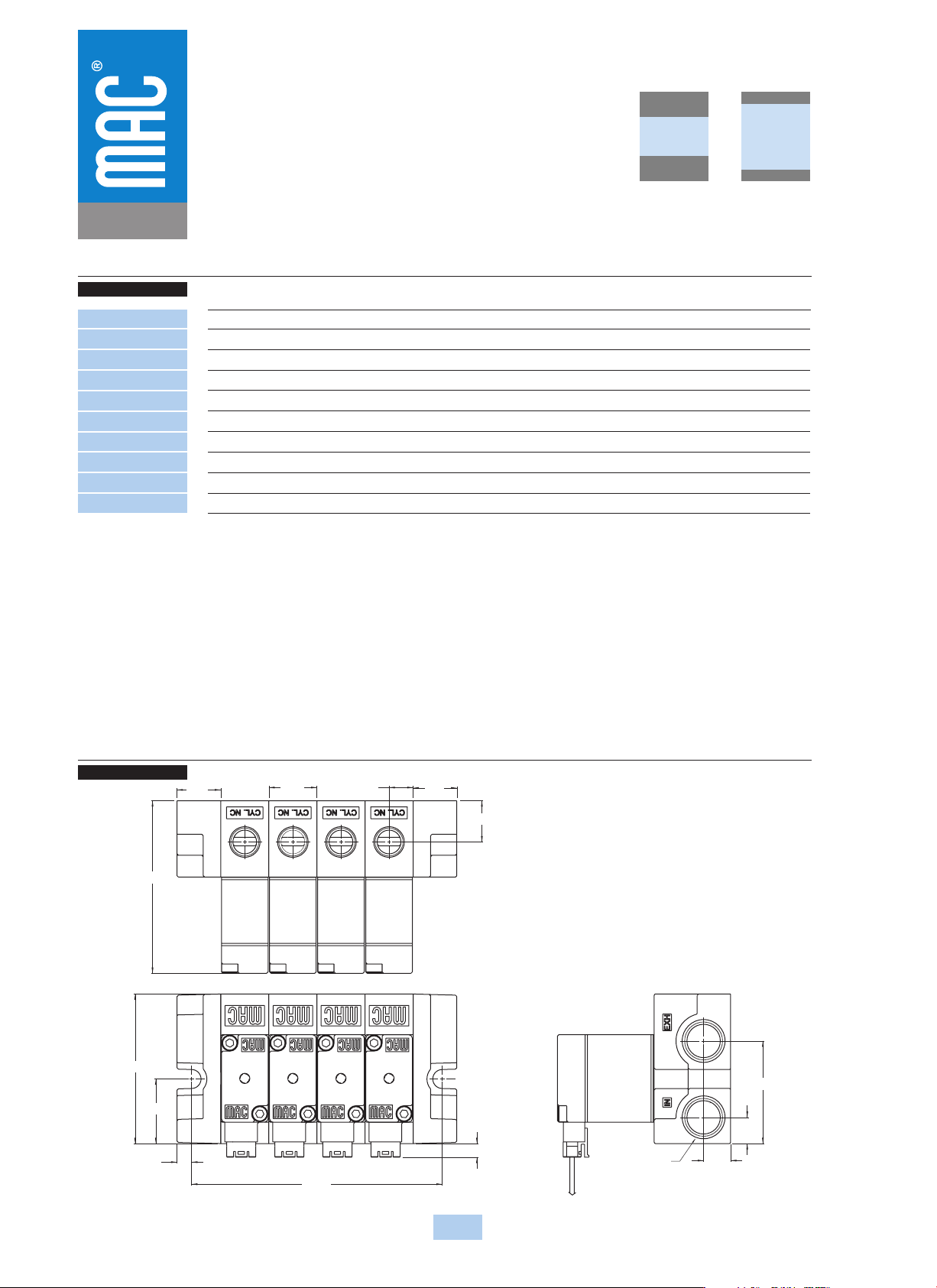

1/4" COMMONS
TYP. TYP.
86.0
15.0
16.5
15.0
8.3
5.0
22.2
59.2
51.3
14.1
9.0
35.2
9.3
4.7
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
26
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
36
Fluid :
Pressure range :
Lubrication :
Filtration :
Temperature range :
Flow :
Coil :
Voltage range :
Protection :
Power :
Compressed air, vacuum, inert gases
Vacuum to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
1.8 Watt: (0.15 C
v
), 2.4 Watt: (0.15 C
v
), 5.4 Watt: (0.30 C
v
)
Class A wire (#22 AWG x 12), continuous duty
-15% to +10% of nominal voltage
Consult factory
5.4 W – 2.4 W – 1.8 W
• BSPP threads
• Inlet & exhaust isolator plate : N-36001 • Inlet isolator : N-36002
• Exhaust isolator : N-36003 • Tie rod (x2) : 79411
Option :
Spare parts :
Note: Isolator adds 2.5 mm
to length of stack.
Function Port size Flow (Max) Individual mounting Series
OPERATIONAL BENEFITS
Direct solenoid and solenoid pilot operated valves
HOW TO ORDER
27
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Series
36
3/2 1/8" - 5/32 Pressed-in 0.3 C
v
tube receptacle
Manifold base
“plug-in”
1. Balanced poppet, immune to variations of
pressure.
2. Patented solenoid develops high shifting
forces.
3. Short stroke with high flow.
4. Higher forces result in lower wattages for
given flow.
5. Powerful return spring.
Port size
Valve less base
1/8” NPTF
5/32 tube receptacle
Universal Valve
Normally Closed
36A-J00-00-J
XX
P
-XXX
36A-JSA-AE-J
XX
P
-XXX
36A-JSF-AE-J
XX
P
-XXX
Universal Valve
Normally Open
36A-K00-00-J
XX
P
-XXX
36A-KSA-AF-J
XX
P
-XXX
36A-KSF-AF-J
XX
P
-XXX
Normally Closed Only
36A-L00-00-J
XX
P
-XXX
36A-LSA-AE-J
XX
P
-XXX
36A-LSF-AE-J
XX
P
-XXX
2
13
2
13
2
13
Voltage
AA
120 VAC (5.4W)
DA
24 VDC (5.4W)
DB
12 VDC (5.4W)
DC
24 VDC (2.4W)
DD
12 VDC (2.4W)
Manual operator
1
Non-locking recessed
2
Locking recessed
Electrical connection
FA
Base plug-in
FB
Base plug-in with diode
FG
Base plug-in with rectifier
J
XX
P-
XXX
*
(-G) Add “G” for ground
SOLENOID OPERATOR
®
XX X XX
* Other options available, see page 317.
Note : AC voltage requires connector with rectifier.
Example : Manifold base only : 36A-0SA-AE (Normally closed manifold base).
End plate kit required (port size 1/4") : M-46003-01.
