HOW TO ORDER 289 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Pressure regulators OPERATIONAL BENEFITS Series PR37A PR42B PR46A PR47A PR48B PRA02A PR92C PR93A PRA1A PRA01A PRP1A PRA2…
276.9
186.1
299.3
388.9
11
55
33
COND
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
288
Consult “Precautions” page 327 before use, installation or service of MAC Valves..

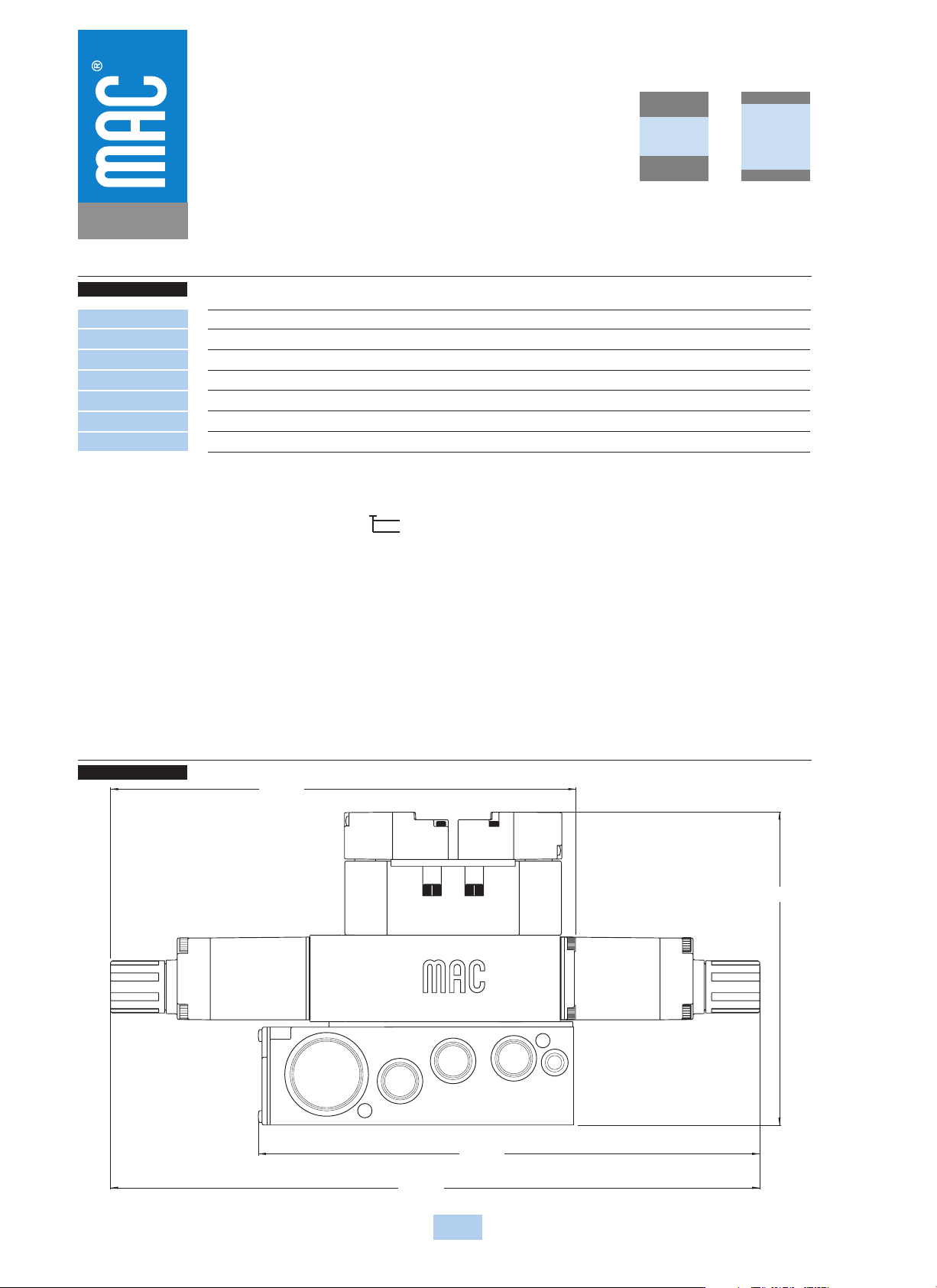

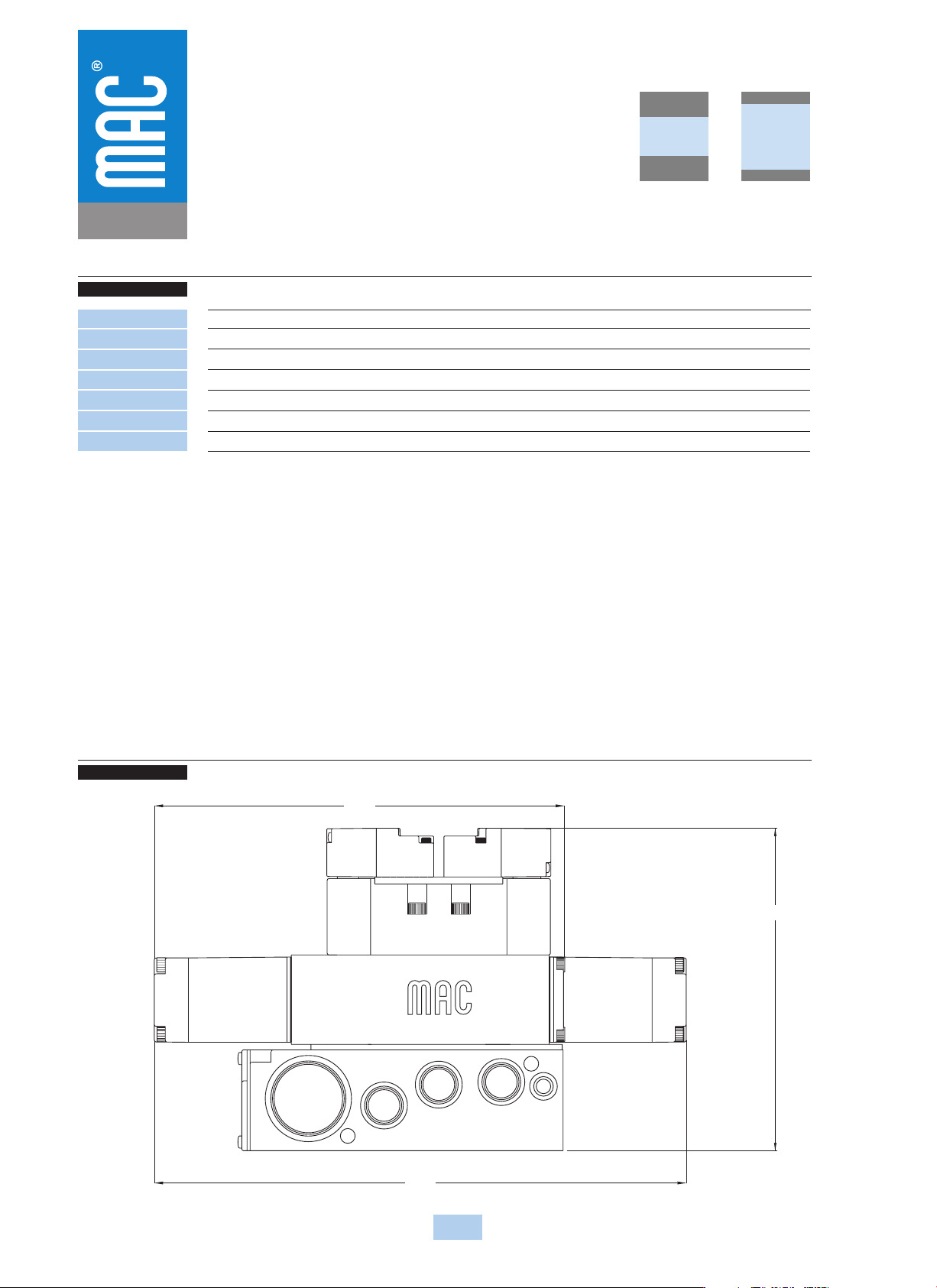

Series PRP2B
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 150 PSI
0 to 150 PSI (other ranges see below)
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
3.1 C
v
• Pressure regulator (less sandwich block) : PRP2B-C0AA (knob), PRP2B-J0AA (slotted stem), PRP2B-M0AA (slotted stem with locknut)
• Regulator block to base mounting screw: 19177
• Regulating range option: PRP2B-xxxA
Replace by B for 0 to 100 PSI
Replace by C for 0 to 45 PSI
Spare parts :
HOW TO ORDER
289
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B

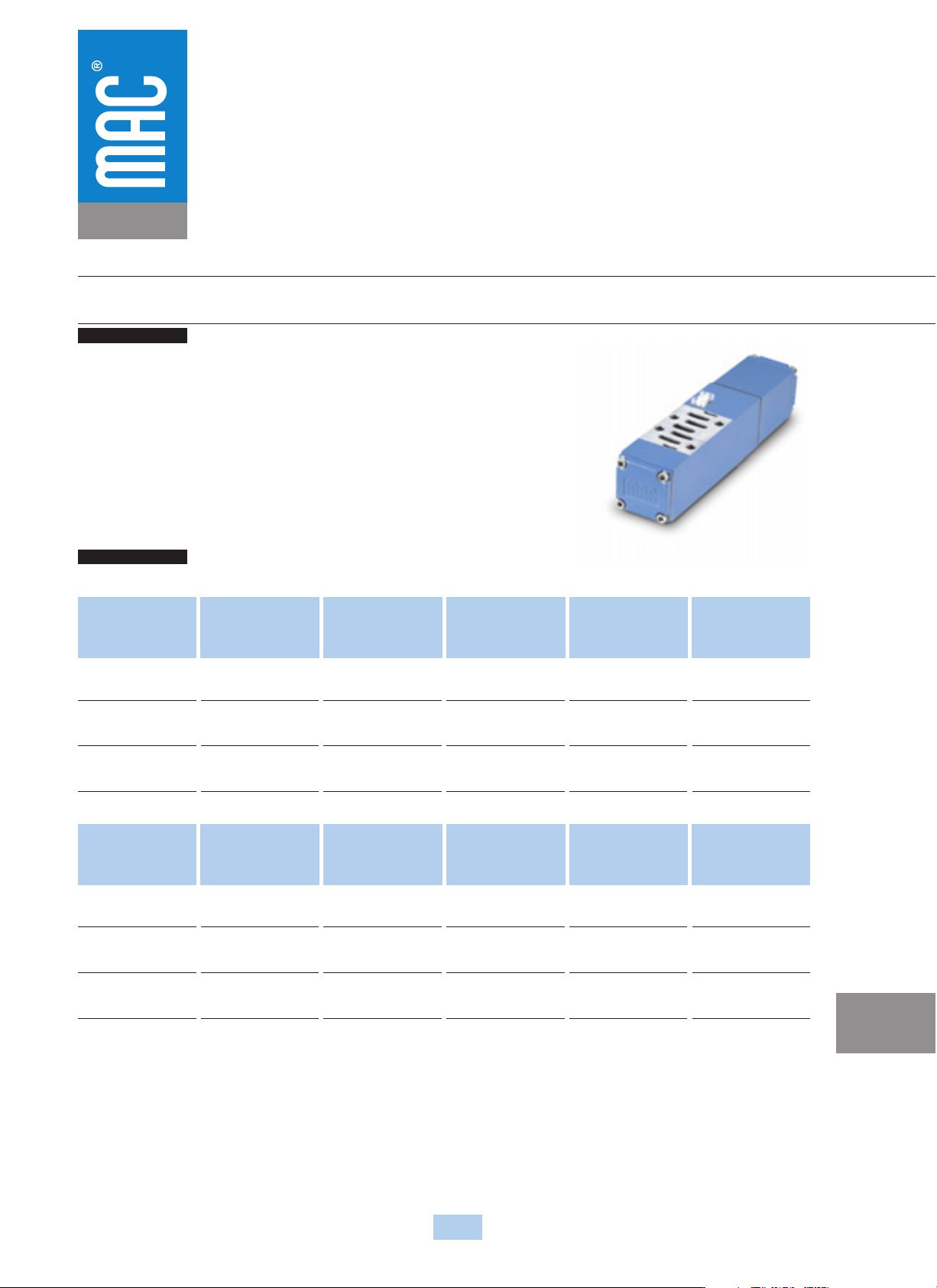

Series PRP2B
Plug-in sandwich pressure regulator with air pilot adjust
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
*
- To be used with dual pressure valves.
Notes:
1. Valves used with above models must be external pilot models.
2. Cannot field convert regulator block from single pressure to dual pressure.
3. Cannot field convert from internal pilot to external pilot.
4. Wired for double solenoid valves.
Gage
No gage
Glycerine gage
Non-filled gage
Single pressure
Regulator 14 end
Same regulated pressure
to ports 2 and 4
PRP2B-DAAA
PRP2B-DABA
PRP2B-DADA
Single pressure
Regulator 12 end
Same regulated pressure
to ports 2 and 4
PRP2B-DEAA
PRP2B-DEBA
PRP2B-DEDA
Dual pressure
Regulator 14 end
Regulated pressure
to port 4
PRP2B-DBAA
PRP2B-DBBA
PRP2B-DBDA
Dual pressure
Regulator 12 end
Regulated pressure
to port 2
PRP2B-DFAA
PRP2B-DFBA
PRP2B-DFDA
Dual pressure
Dual regulator
Two regulated pressures
to ports 2 and 4
PRP2B-DJAA
PRP2B-DJCA
PRP2B-DJEA
REGULATORS FOR INTERNAL PILOT
Gage
No gage
Glycerine gage
Non-filled gage
Single pressure
Regulator 14 end
Same regulated pressure
to ports 2 and 4
PRP2B-EAAA
PRP2B-EABA
PRP2B-EADA
Single pressure
Regulator 12 end
Same regulated pressure
to ports 2 and 4
PRP2B-EEAA
PRP2B-EEBA
PRP2B-EEDA
Dual pressure
Regulator 14 end
Regulated pressure
to port 4
PRP2B-EBAA
PRP2B-EBBA
PRP2B-EBDA
Dual pressure
Regulator 12 end
Regulated pressure
to port 2
PRP2B-EFAA
PRP2B-EFBA
PRP2B-EFDA
Dual pressure
Dual regulator
Two regulated pressures
to ports 2 and 4
PRP2B-EJAA
PRP2B-EJCA
PRP2B-EJEA
REGULATORS FOR EXTERNAL PILOT AND REMOTE AIR
***
***
305.9
235.9
186.1
1
5
3
COND
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
290
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series PRP2B
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 150 PSI
0 to 150 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
3.1 C
v
• Pressure regulator (less sandwich block): PRP2B-F0AA
• Body/block to base mounting screw: 19177
Spare parts :
