Bases according to ISO 154079/1 HOW TO ORDER 227 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. ISO 01 ISO 02 ISO 1 ISO 2 ISO 3 Series Series ISO 01 Port size 1/4” NPTF Pilot air Inter…

100%1 / 280
225
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Bases according to ISO STANDARDS
Non plug-in
base /
manifold
Series
ISO 01
ISO 02
ISO 1
ISO 2
ISO 3
P. 239
P. 235
P. 231
Non plug-in
individual /
manifold base
P. 229
P. 227
Plug-in base /
manifold
P. 241
P. 237
P. 233

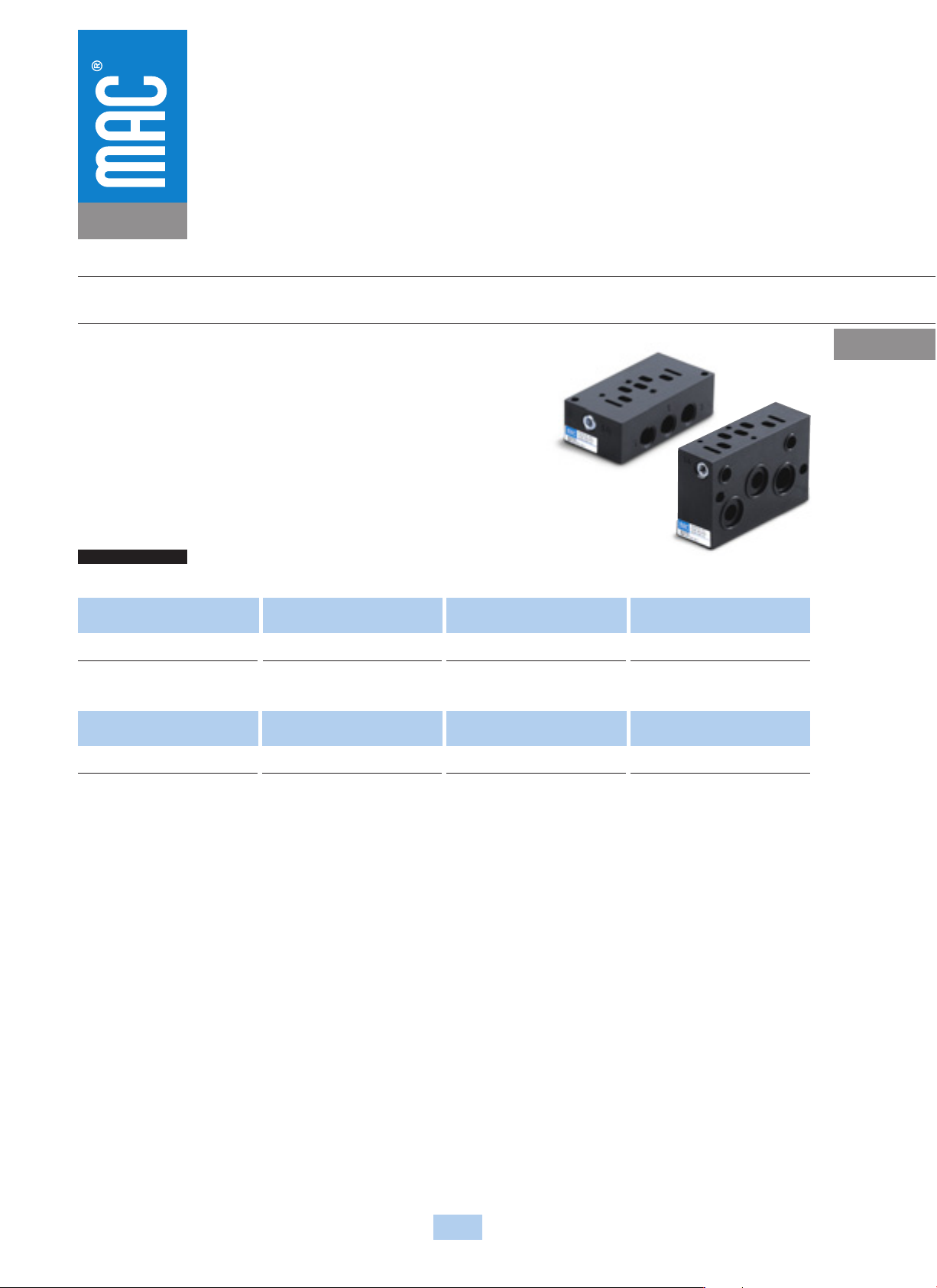

Bases according to ISO 154079/1
HOW TO ORDER
227
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
ISO 01
ISO 02
ISO 1
ISO 2
ISO 3
Series
Series
ISO 01
Port size
1/4” NPTF
Pilot air
Internal
Side ports
MB-A01A-121
Bottom 2 & 4 ports
With all side ports
MB-A01A-122
INDIVIDUAL BASE
Port size
1/4” NPTF
Pilot air
Internal
Side ports
MM-A01A-121
Bottom 2 & 4 ports
With side 1, 3 & 5 ports
MM-A01A-122
MANIFOLD BASE
Notes:
- For manifold bases external pilot is common
- A base is ordered as internal pilot and can be changed into external pilot by removing pipe plugs from the external pilot ports (individual base).
- Manifold base: same base for internal and external pilot, different end plate kits.
End plate kit: Internal pilot M-00017-01-01
External pilot M-00017-02-01
Inlet/exhaust isolator: 28413
Non plug-in individual / manifold base
20.30
3/8"-18 N.P.T.F. TYP. (3)
3/8"-18 N.P.T.F. TYP. (3)
RIGHT SIDE
LEFT SIDE
55.00
47.50
34.00
9.50
55.00
47.00
67.60
46.40
22.40
17.75
73.55
21.75
29.10
17.20
43.50
43.50
21.75
29.10
17.20
67.60
22.40
46.40
17.75
73.55
1/8"-27 N.P.T.F.
27.00
7.50
1/4"-18 N.P.T.F. TYP. (2)
1/8"-27 N.P.T.F
8.00
17.50
25.50
1/8"-27 N.P.T.F. TYP. (2)
1/8"-27 N.P.T.F. TYP. (2)
P
TYP.(2)

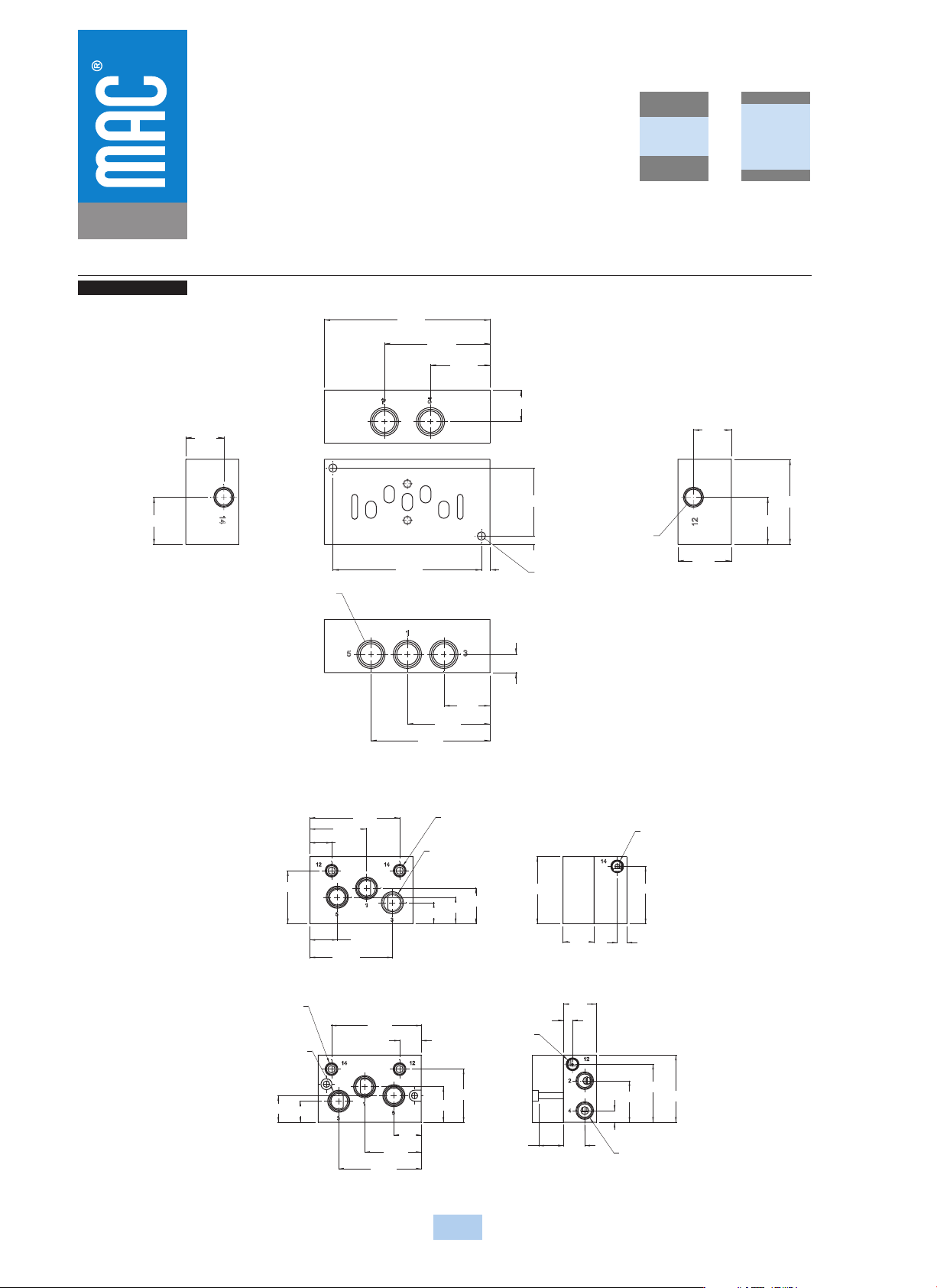

DIMENSIONS
Dimensions shown are metric (mm)
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
228
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
ISO 01
1/8"-27 N.P.T.F. TYP. (2)
1/4"-18 N.T.P.F. TYP. (3)
35.45
4.50
4.577.45
4.30 DIA. DRILL - THRU
16.40
31.10
55.10
86.45
19.80
24.70
44.45
27.80
9.50
24.10
43.10
62.10
19.80
24.70
TYP. (2)
TYP. (3)
Individual
Manifold
