OPERATIONAL BENEFITS Direct solenoid and solenoid pilot operated valves HOW TO ORDER 111 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. 36 32 37 38 33 34 52 67 46 44 47 42 400 48 92 93…
109
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Individual mounting Series
Direct solenoid and solenoid pilot operated valves
SERIES FEATURES
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Inline
Sub-base
non “plug-in”
Manifold base
“plug-in”
Stacking
Series
47
Manifold mounting
• Short stroke solenoid produces high energization shifting force.
• High force return spring due to high force solenoid maximizes
both energization and de-energization shifting forces.
• Built-in wear compensation - valve stroke is shorter than solenoid stroke.
• Four (4) bonded balanced poppets on a one-piece valve stem.
• End poppets seal first on conical seats and cushion inlet poppet, eliminating cutting.
• Exhaust seals are not under inlet pressure thus reducing friction.
• Short stroking balanced poppet allows for direct solenoid operation with high shifting forces,
minimized friction, fast response and high flow in a small package.
4
2
1
5
3
Push pin
Manual operator
Armature
Coil
“D” seal
Poppet
Valve return spring
Pole piece
Conical seat
OPERATIONAL BENEFITS
Direct solenoid and solenoid pilot operated valves
HOW TO ORDER
111
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Series
47
Function Port size Flow (Max) Individual Mounting Series
5/2 1/8” - 1/4” 0.5 C
v
Inline
1. Short stroke solenoid produces high
energization shifting force.
2. High force return spring due to high force
solenoid maximizes both energization and
de-energization shifting forces.
3. Built-in wear compensation – valve stroke is
shorter than solenoid stroke.
4. Four bonded balanced poppets on a one-
piece valve stem.
5. End poppets seal first on conical seats and
cushion inlet poppet, eliminating cutting.
6. Exhaust seals are not under inlet pressure thus
reducing friction.
7. Integral non-rising flow controls available on
inline models.
8. Short stroking balanced poppet allows for
direct solenoid operation with high shifting
forces, minimized friction, fast response and
high flow in a small package.
Port size
1/8” NPTF
1/4” NPTF
Without flow controls
47A-AA0-H
XXX-XXX
47A-AB0-H
XXX-XXX
With flow controls
47A-BA0-H
XXX-XXX
47A-BB0-H
XXX-XXX
3
4
1
2
5
1412
3
4
1
2
5
1412
H
XXX
-
XXX
*
SOLENOID OPERATOR
®
Voltage
DA
24 VDC (5.2W)
DB
24 VDC (2.4W)
DC
24 VDC (1.8W)
DD
24 VDC (1.0W)
AA
120 VAC (6.7W)
Lead Wire length
A
18”
B
24”
C
36”
Manual operator
1
Non-locking recessed
2
Locking recessed
Electrical connection
MA
Plug-in wire assembly
MC
Plug-in wire assembly with
light
BA
Flying leads
BC
Flying leads with light
MT
Plug-in wire assembly with
rectifier & light
XX X X XX
* Other options available, see page 319.
*
Other options available, see page 315.
Note: AC voltage requires connector with rectifier.
47A-C
X
O-H
XXX
-
XXX
A 1/8” NPTF
B 1/4” NPTF
Namur Mount Option (w/o flow controls)
OPTIONS
24
9.75
19.5
29.5
3 1 5
(2)
TYP
9.0
9.75
TYP. (2)
MTG. HOLES
4.25 DIA.
116.85
40.5
+
+
-
-
56.55
10.5
52.5
(2)
TYP
9.8
12
14
OPTIONAL
FLOW CONTROL COVER
B
30.2
A
21.75
41.25
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED

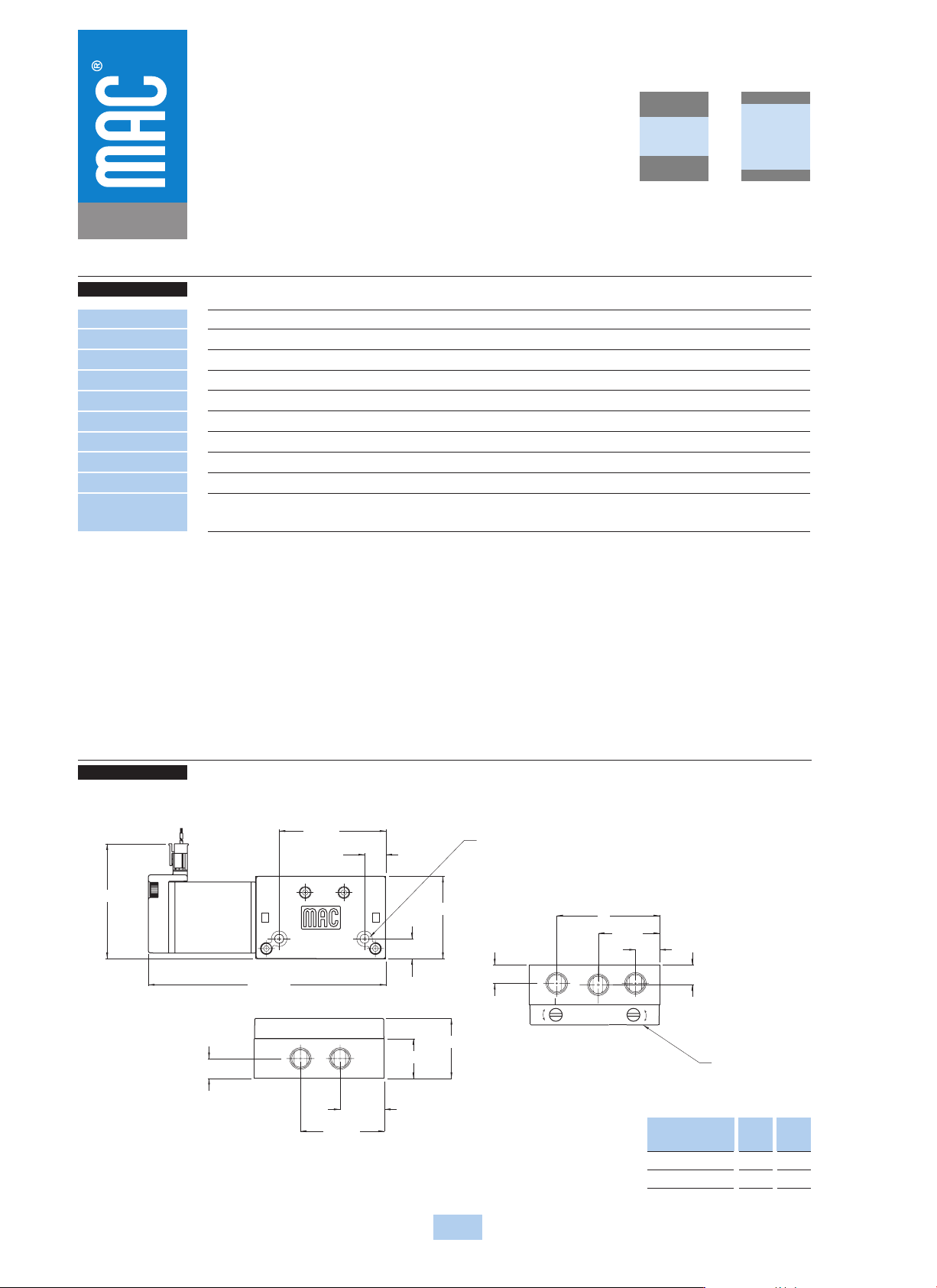

DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
112
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
47
Fluid :
Pressure range :
Lubrication :
Filtration :
Temperature range :
Flow :
Coil :
Voltage range :
Power :
Response times :
(with 5.2 W coil)
Compressed air, vacuum, inert gases
Vacuum to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
5.2W : (0.50 C
v
) – 2.4W : (0.35 C
v
) – 1.0W : (0.30 C
v
)
Class A wire (#22 AWG x 18), continuous duty
-15% to +10% of nominal voltage
5.2W – 2.4W – 1.0W
Energize : 17.4 ms
De-energize : 3.8 ms
• BSPP threads
• Flow control assembly : N-47004
Options :
Spare parts :
Dim
1/8”
1/4”
A
50.6
49.2
B
11.95
11.2
