3 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. MAC VALVES INC. has earned a reputation as an innovator in solenoid air valve technology as is evidenced by our numerous global patents…
1
Introduction
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
3
Direct solenoid and solenoid pilot operated valves
9
Remote air valves
197
Bases according to ISO 5599
223
Pressure regulators
243
Intrinsically safe valves
299
Options
307
Supplemental technical information
321
Page
3
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
MAC VALVES INC. has earned a reputation as an innovator in solenoid air valve technology as is evidenced by our numerous global
patents.
MAC’s designs focus on offering customers the best performing products available on the market. Some of the key features MAC’s
products offer are:
- reliability - compact packaging
- speed - modularity
- repeatability - specific application modifications
- non lube service - low wattage
- ease of maintenance - broad electrical options
Many of these performance advantages are based on MAC’s high shifting forces. MAC’s patended oval shaped armature solenoid
and 4-way pilot technologies are two new concepts which result in extremely high shifting forces in small packages.
The patented Latching Solenoid is another new offering to the MAC product line. The latching solenoid provides the function of a
double solenoid operated valve utilizing only one solenoid.
I. OVAL SHAPED ARMATURE SOLENOID – Maximized Shifting Forces
Compared with typical round armature solenoids, the oval shaped armature design results in much higher shifting forces due to the
following:
• Increased coil windings (amp turns)
• Increased core iron volume
With more amp turns and core iron than conventional round armature designs, more shifting force is available to shift through
contaminated air resulting in reliable shifting valves.
Introduction
Oval Armature
Round Armature
Optimized
Use of space
Push Pin
Oval Shaped Armature New Concept
Oval Shaped Armature
Wasted space
Available space
used for increased
AMP Turns and Core
Iron Volume
=
Higher Magnetism
=
Higher Force
4
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Introduction
EAINEB
BA
•
Balanced poppet, with no seals of any kind in a bore - no friction
•
New patented MAC solenoid
®
with “oval” shaped armature - provides high
shifting force through more core iron and magnet wire
•
Balanced poppet - high shifting forces - unaffected by fluctuations in air pressure
•
Short stroke direct operated poppet valve (patented adjustable inlet seat controls
stroke) - high shifting force - without small piston and no minimum operating
pressure
•
Large orifice “0.0024 in
2
”minimum - resists clogging
•
Strong return spring - high shifting force - even at low pressure
•
Few parts - simple design
•
Patented conical shaped exhaust seats act as cushions
- eliminates cutting - long life
•
Every valve calibrated for flow for a given coil wattage - consistent flow

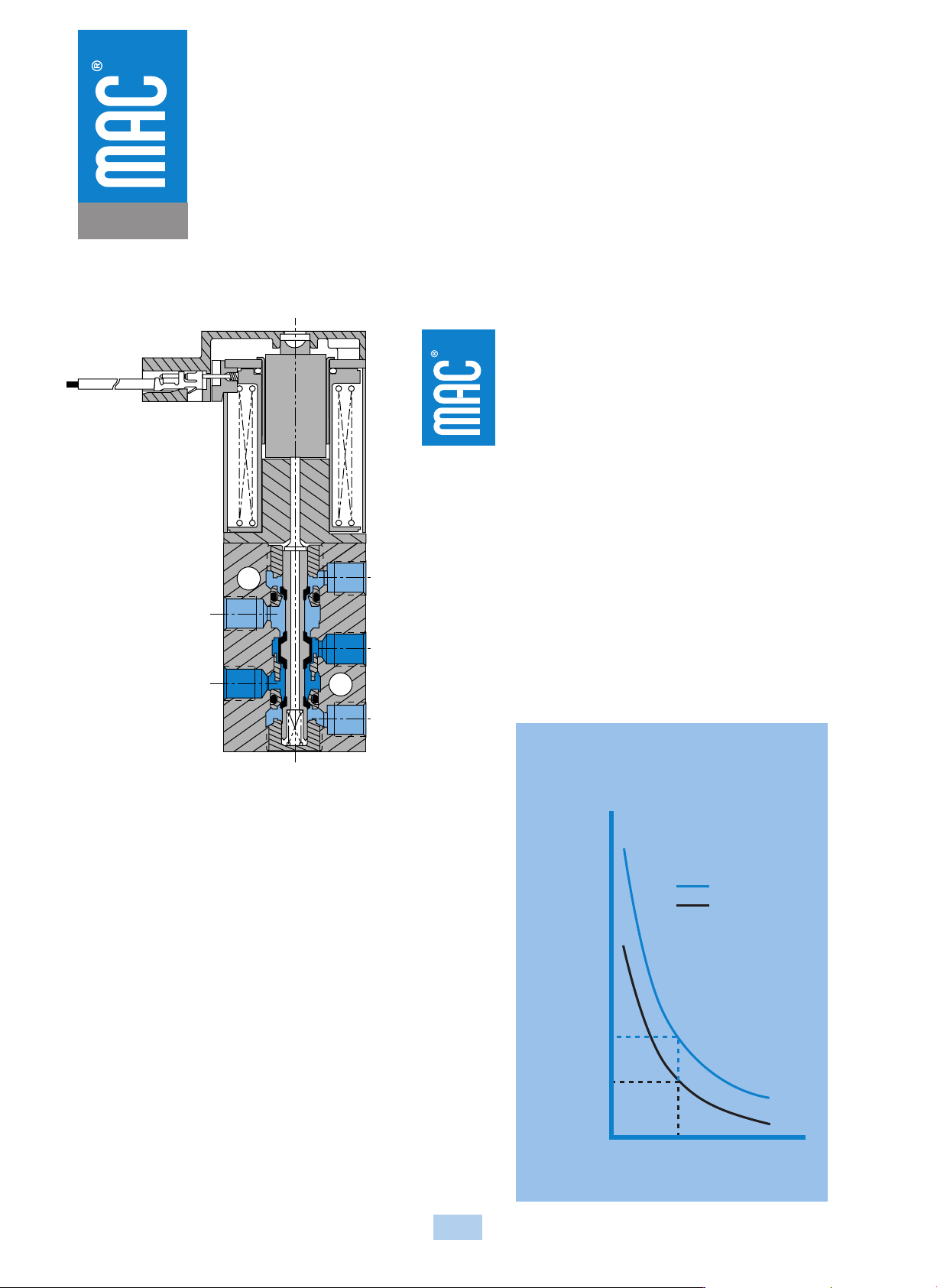

DIRECT OPERATED 10 MM DESIGN
WITH OVAL SHAPED ARMATURE
DIRECT SOLENOID POPPET VALVE
Short Stroke = High solenoid force
Short Stroke = High return spring force
Short Stroke = Low current to shift solenoid
SHORT STROKE
SOLENOID FORCE
SOLENOID STROKE
Oval Armature
Additional Net
Shifting Force
OVAL ARMATURE
ROUND ARMATURE
{
solenoid force curve
