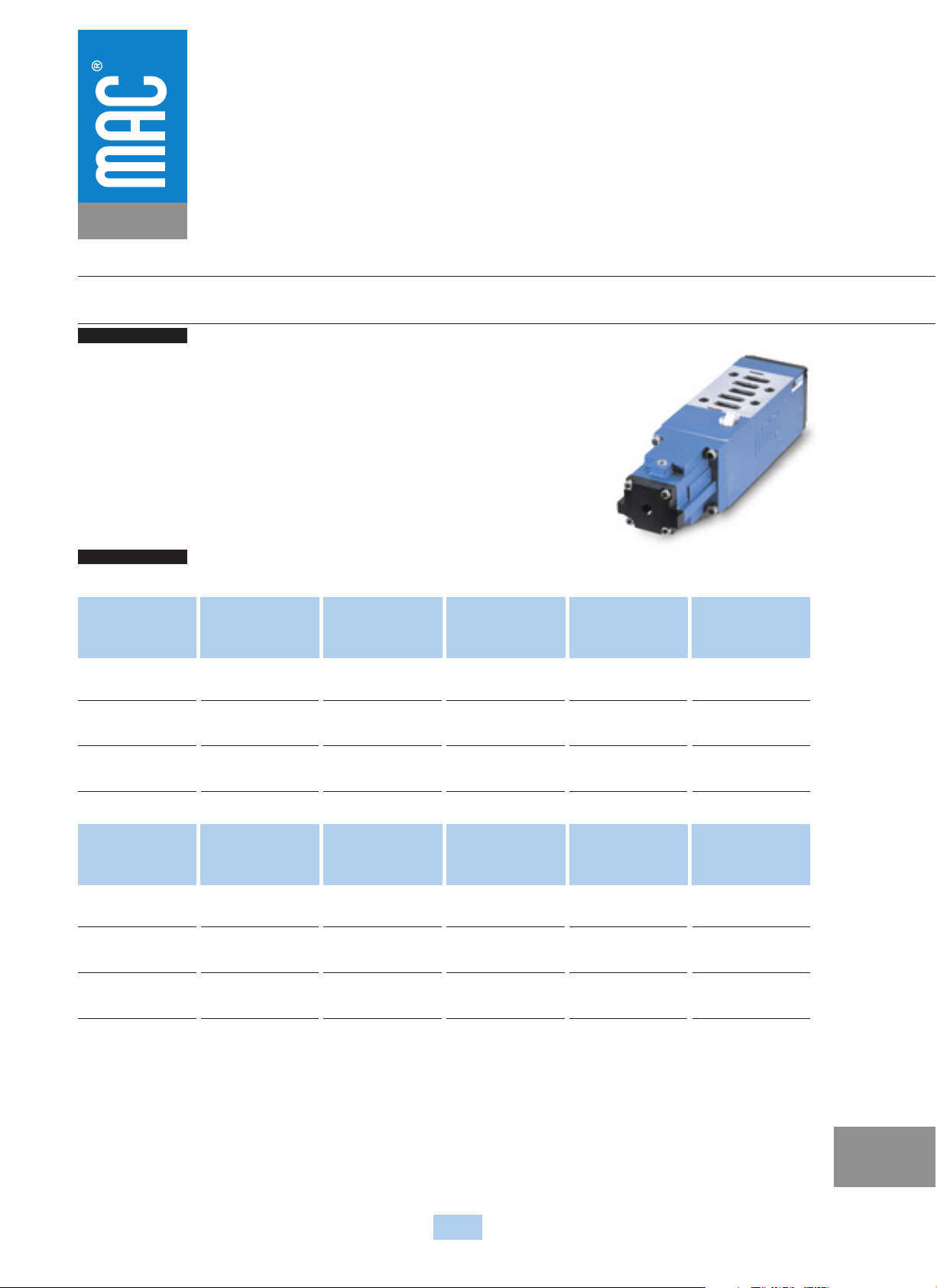

ntcat.pdf - 第252页
REGULATOR "12" END INDIVIDUAL BASE WITH REGULATOR "14" END INDIVIDUAL BASE WITH WITH DOUBLE REGULATOR MANIFOLD & INDIVIDUAL BASE 274.8 274.8 351.3 212.0 18 18 10 0 % 10 0 % 10 0 % 10 0 % MONTHS W …
HOW TO ORDER
297
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B
Series PRP3B
Plug-in sandwich pressure regulator with air pilot adjust
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
*
- To be used with dual pressure valves.
Notes:
1. Valves used with above models must be external pilot models.
2. Cannot field convert regulator block from single pressure to dual pressure.
3. Cannot field convert from internal pilot to external pilot.
4. Wired for double solenoid valves.
Gage
No gage
Glycerine gage
Non-filled gage
Single pressure
Regulator 14 end
Same regulated pressure
to ports 2 and 4
PRP3B-DAAA
PRP3B-DABA
PRP3B-DADA
Single pressure
Regulator 12 end
Same regulated pressure
to ports 2 and 4
PRP3B-DEAA
PRP3B-DEBA
PRP3B-DEDA
Dual pressure
Regulator 14 end
Regulated pressure
to port 4
PRP3B-DBAA
PRP3B-DBBA
PRP3B-DBDA
Dual pressure
Regulator 12 end
Regulated pressure
to port 2
PRP3B-DFAA
PRP3B-DFBA
PRP3B-DFDA
Dual pressure
Dual regulator
Two regulated pressures
to ports 2 and 4
PRP3B-DJAA
PRP3B-DJCA
PRP3B-DJEA
REGULATORS FOR INTERNAL PILOT
Gage
No gage
Glycerine gage
Non-filled gage
Single pressure
Regulator 14 end
Same regulated pressure
to ports 2 and 4
PRP3B-EAAA
PRP3B-EABA
PRP3B-EADA
Single pressure
Regulator 12 end
Same regulated pressure
to ports 2 and 4
PRP3B-EEAA
PRP3B-EEBA
PRP3B-EEDA
Dual pressure
Regulator 14 end
Regulated pressure
to port 4
PRP3B-EBAA
PRP3B-EBBA
PRP3B-EBDA
Dual pressure
Regulator 12 end
Regulated pressure
to port 2
PRP3B-EFAA
PRP3B-EFBA
PRP3B-EFDA
Dual pressure
Dual regulator
Two regulated pressures
to ports 2 and 4
PRP3B-EJAA
PRP3B-EJCA
PRP3B-EJEA
REGULATORS FOR EXTERNAL PILOT AND REMOTE AIR
***
***
REGULATOR "12" END
INDIVIDUAL BASE WITH
REGULATOR "14" END
INDIVIDUAL BASE WITH
WITH DOUBLE REGULATOR
MANIFOLD & INDIVIDUAL BASE
274.8
274.8
351.3
212.0
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
298
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series PRP3B
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 150 PSI
0 to 150 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
5.4 C
v
• Pressure regulator (less sandwich block): PRP3B-F0AA
• Regulator block to base mounting screw: 19457
Spare parts :
