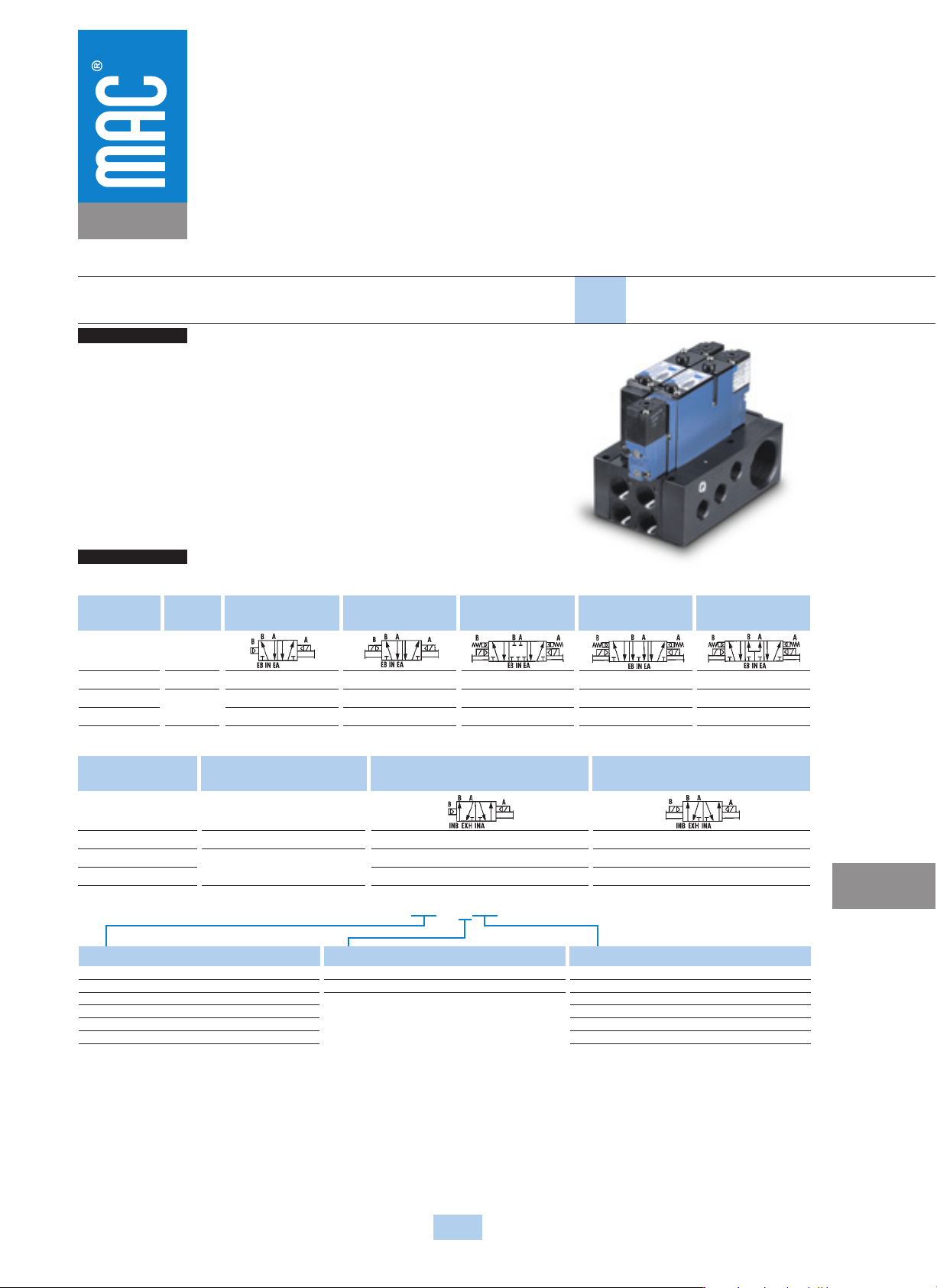

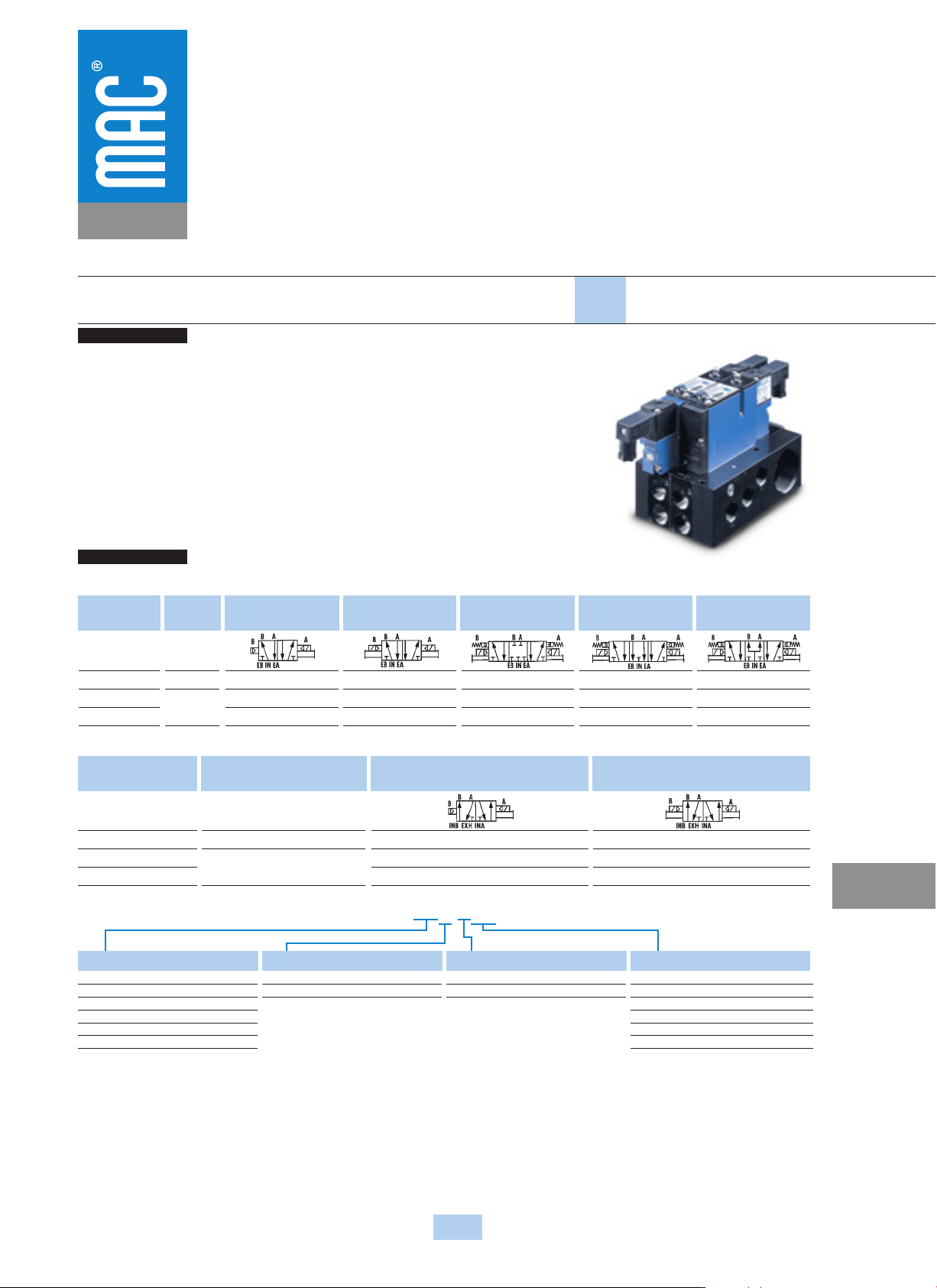

OPERATIONAL BENEFITS
Direct solenoid and solenoid pilot operated valves
HOW TO ORDER
151
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Series
92
Function Port size Flow (Max) Manifold mounting Series
5/2, 5/3
1/4” - 3/8”
1.2 C
v
Sub-base
non “plug-in”
1. The 4-way pilot develops maximum shifting
forces both ways.
2. Memory spring available.
3. Balanced spool, immune to variations of
pressure, also provides high flow.
4. Short stroke with high flow.
5. Bonded seal spool with minimum friction,
shifting in a glass-like finished bore.
6. Pilot with balanced poppet, high flow; short
and consistent response times.
7. Wiping effect eliminates sticking.
8. Long service life.
DM-D
XXX
-
XXX
*
SOLENOID OPERATOR
®
Voltage
JA
110 /50, 120/60 (2.9W)
JB
220/50, 240/60 (2.9W)
JC
24/60 (2.9W)
FB
24 VDC (1.8W)
DA
24 VDC (5.4W)
DF
24 VDC (12.7W)
Wire length
A
18” (flying leads)
J
Connector
Manual operator
1
Non-locking recessed
2
Locking recessed
Electrical connection
KA
Square connector
KD
Square connector with light
JB
Rectangular connector
JD
Rect. connector with light
BA
Flying leads
BK
Flying leads with diode
XX X X XX
* Other options available, see page 309.
End plate kit required (port size 3/8"): M-92004-01-01 (internal pilot)
M-92004-02-01 (External pilot)
Other options available for the 92 series valves, see page 155.
5/2
Single operator
92B-ABA-000-DM-D
XXX
-
XXX
92B-ABA-BJG-DM-D
XXX
-
XXX
92B-ABA-CJG-DM-D
XXX
-
XXX
5/2
Double operator
92B-BBA-000-DM-D
XXX
-
XXX
92B-BBA-BJG-DM-D
XXX
-
XXX
92B-BBA-CJG-DM-D
XXX
-
XXX
5/3
Closed center
92B-EBA-000-DM-D
XXX
-
XXX
92B-EBA-BJG-DM-D
XXX
-
XXX
92B-EBA-CJG-DM-D
XXX
-
XXX
5/3
Open center
92B-FBA-000-DM-D
XXX
-
XXX
92B-FBA-BJG-DM-D
XXX
-
XXX
92B-FBA-CJG-DM-D
XXX
-
XXX
5/3
Pressure center
92B-GBA-000-DM-D
XXX
-
XXX
92B-GBA-BJG-DM-D
XXX
-
XXX
92B-GBA-CJG-DM-D
XXX
-
XXX
Port size
Valve less base
1/4” NPTF
3/8” NPTF
Pilot air
Internal
SINGLE PRESSURE MODELS
5/2
Single operator
92B-CBA-000-DM-D
XXX
-
XXX
92B-CBA-BJG-DM-D
XXX
-
XXX
92B-CBA-CJG-DM-D
XXX
-
XXX
5/2
Double operator
92B-DBA-000-DM-D
XXX
-
XXX
92B-DBA-BJG-DM-D
XXX
-
XXX
92B-DBA-CJG-DM-D
XXX
-
XXX
Port size
Valve less base
1/4” NPTF
3/8” NPTF
Pilot air
Internal
DUAL PRESSURE MODELS (REQUIRE SANDWICH REGULATOR – SEE "REGULATORS" SECTION)
Above models are shown with side ports.
14.0
148.3
115.5
73.1
51.2
27.0
25.5
25.6
42.0
36.5
25.5
21.5
118.7
33.0
11.0
28.5
26.5
Ø 6.3
87.0
5.5
15.0 22.0
25.0
9.0
A
B
VAC TO XXX PSI
MODIF.
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI.USA
MODEL
MODEL
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI.USA
MODIF.
VAC TO XXX PSI
B
A
A
B
B
A
B
A
EXT.P
COND
EA
IN
EB
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI. USA
MODIF.
MODEL
ELECTRICAL
WATTS
VAC TO 120 PSI
MODEL
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI.USA
MODIF.
VAC TO XXX PSI
B
A
18
18
100
%
100
%
100
%
100
%
M O NTH S
WARRANTY
O F
P ROD U CTION
TESTED

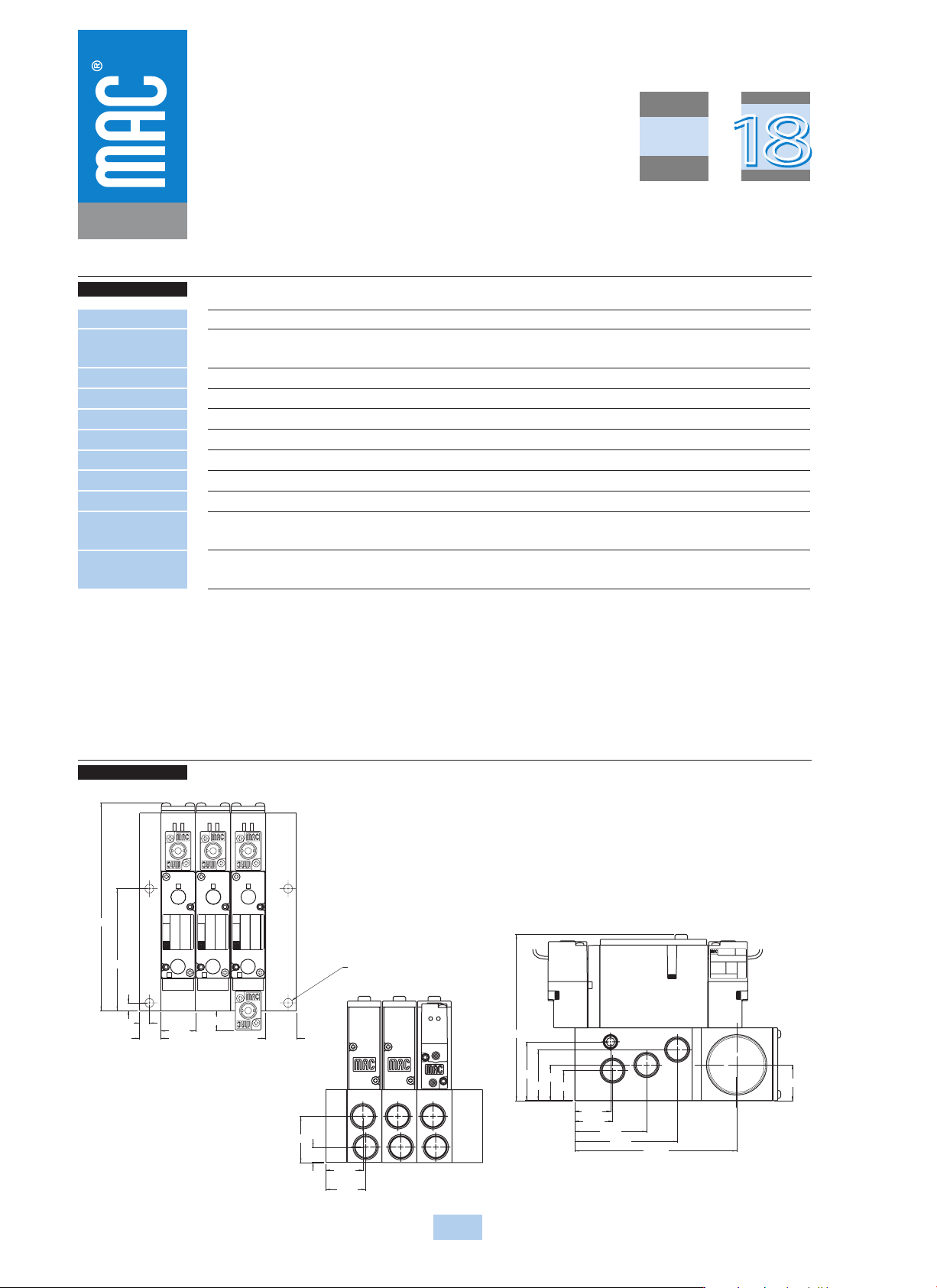

DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
152
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
92
Fluid :
Pressure range :
Lubrication :
Filtration :
Temperature range :
Flow :
Coil :
Voltage range :
Protection :
Power :
Response times :
Compressed air, vacuum, inert gases
Internal pilot : 20 to 120 PSI 3 position : 35 to 120 PSI
External pilot : vacuum to 120 PSI 3 position : 35 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
1/4": (1.1 C
v
) – 3/8": (1.2 C
v
)
Class A continuous duty, #22 AWG x 18 leads
-15% to +10% of nominal voltage
Consult factory
~Inrush 7.6 VA Holding : 4.8 VA
= 1.8 to 12.7 W
24V=/5.4W Energize : 8 ms De-energize : 7 ms
120/60 Energize : 7-13 ms De-energize : 12-20 ms
• BSPP threads • Sandwich ow controls: FC92B-CA
• Pilot valve: DM-Dxxx-xxx • Valve blanking plate: M-92002 • Pressure seal, valve to base 16543
• Inlet/Exhaust isolator disc: N-92018.
Options :
Spare parts :
OPERATIONAL BENEFITS
