Function Port size Flow (Max) Individual mounting Series OPERATIONAL BENEFITS Direct solenoid and solenoid pilot operated valves HOW TO ORDER 23 Consult “Precautions” page 327 before use, installation or service of MAC V…
21
Consult “Precautions” page 327 before use, installation or service of MAC Valves..

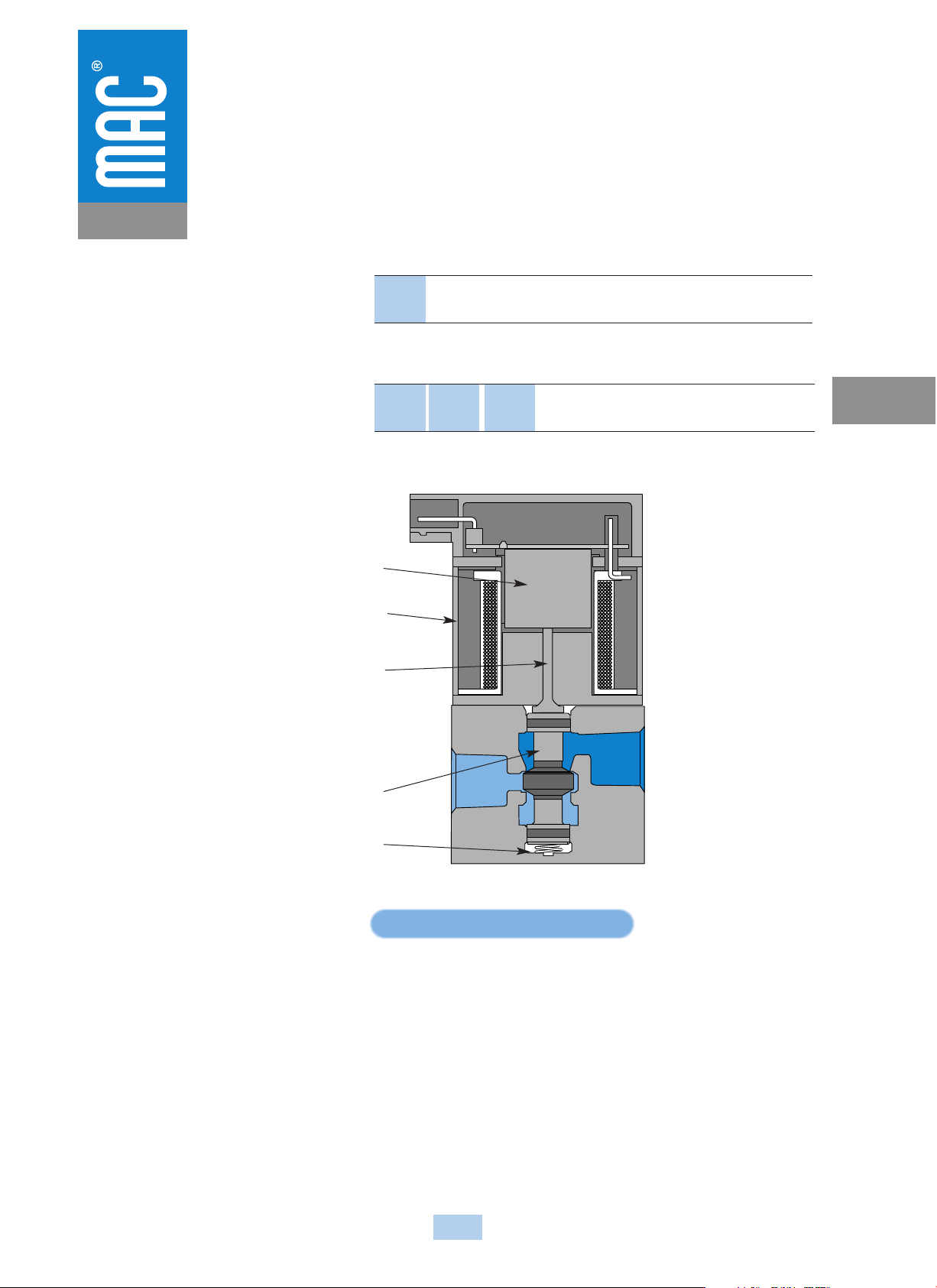

Individual mounting Series
Direct solenoid and solenoid pilot operated valves
SERIES FEATURES
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Inline
Manifold base
“plug-in”
Manifold base
“plug-in” with
pressure
regulators
Stacking
Series
36
Manifold mounting
• Patented high force MACSOLENOID
®
for fastest possible response times.
• Bonded balanced poppet for high flow, precise repeatability, and consistent operation.
• Balanced poppet permits versatility in function — may be used as 3-way or 2-way normally open or
normally closed and may be used for vacuum, divertor, or selector applications.
• Extremely high cycle rate capability.
• Use on lube or non-lube service.
• Manual overrides as standard.
• Various solenoid enclosures and plug-in connectors.
• Optional surge suppression available.
• Low wattage DC solenoids — down to 1.8 watts.
• Rectified AC voltage.
2
1
3
Push pin
Oval shaped armature
Encapsulated coil
Bonded balanced poppet
Return spring

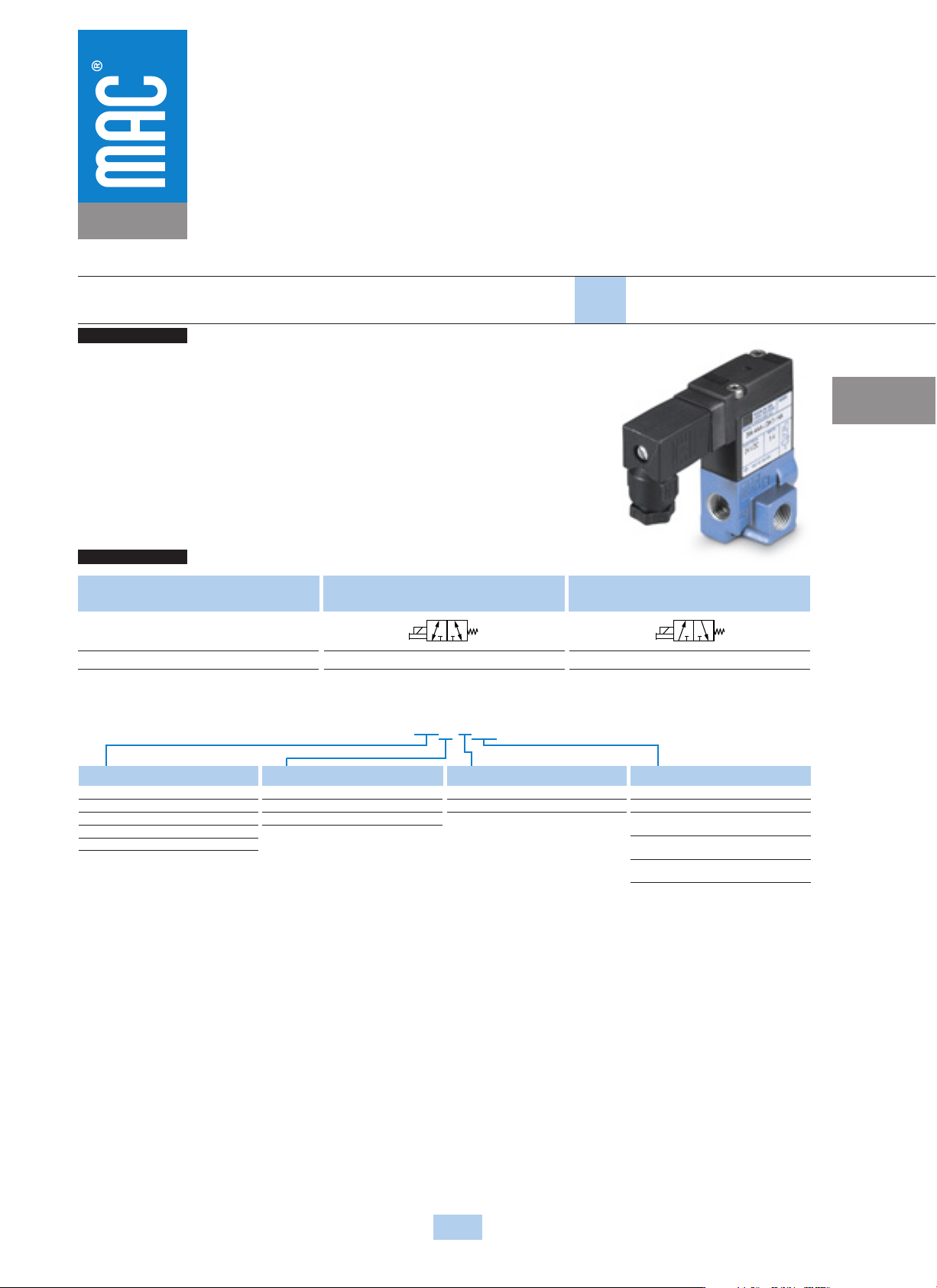

Function Port size Flow (Max) Individual mounting Series
OPERATIONAL BENEFITS
Direct solenoid and solenoid pilot operated valves
HOW TO ORDER
23
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
36
32
37
38
33
34
52
67
46
44
47
42
400
48
92
93
ISO 1
ISO 2
ISO 3
69
48P
ISO 01
ISO 02
Series
36
3/2 1/8” 0.3 C
v
Inline
1. Balanced poppet, immune to variations of
pressure.
2. Patented solenoid develops high shifting
forces.
3. Short stroke with high flow.
4. Higher forces result in lower wattages for
given flow.
5. Powerful return spring.
Port size
1/8” NPTF
Universal valve
36A-AAA-J
XXX-XXX
NC only valve
36A-AAB-J
XXX-XXX
2
13
2
13
J
XXX
-
XXX
*
(-G) Add "G" for ground
SOLENOID OPERATOR
®
Voltage
AA
120 VAC (5.4W)
DA
24 VDC (5.4W)
DB
12 VDC (5.4W)
DC
24 VDC (2.4W)
DD
12 VDC (2.4W)
Lead wire length
A
18”
B
24”
C
36”
Manual operator
1
Non-locking recessed
2
Locking recessed
Electrical connection
BA
Flying leads
GA
MAC JAC solenoid plug-in
GB
MAC JAC solenoid plug-in
with diode
GD
MAC JAC solenoid plug-in
with light
GG
MAC JAC solenoid plug-in
with rectifier
XX X X XX
* Other options available, see page 317.
Note : - AC voltage requires connector with rectifier.
- With the MAC JAC, washdown capability is possible. Consult
factory for washdown modification number.
21.5
30.5
42.3
23.3
58.2
13.1
8.2
4.5
15.3
3.3
8.0
Ø 3.4
16.6
10.1
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED

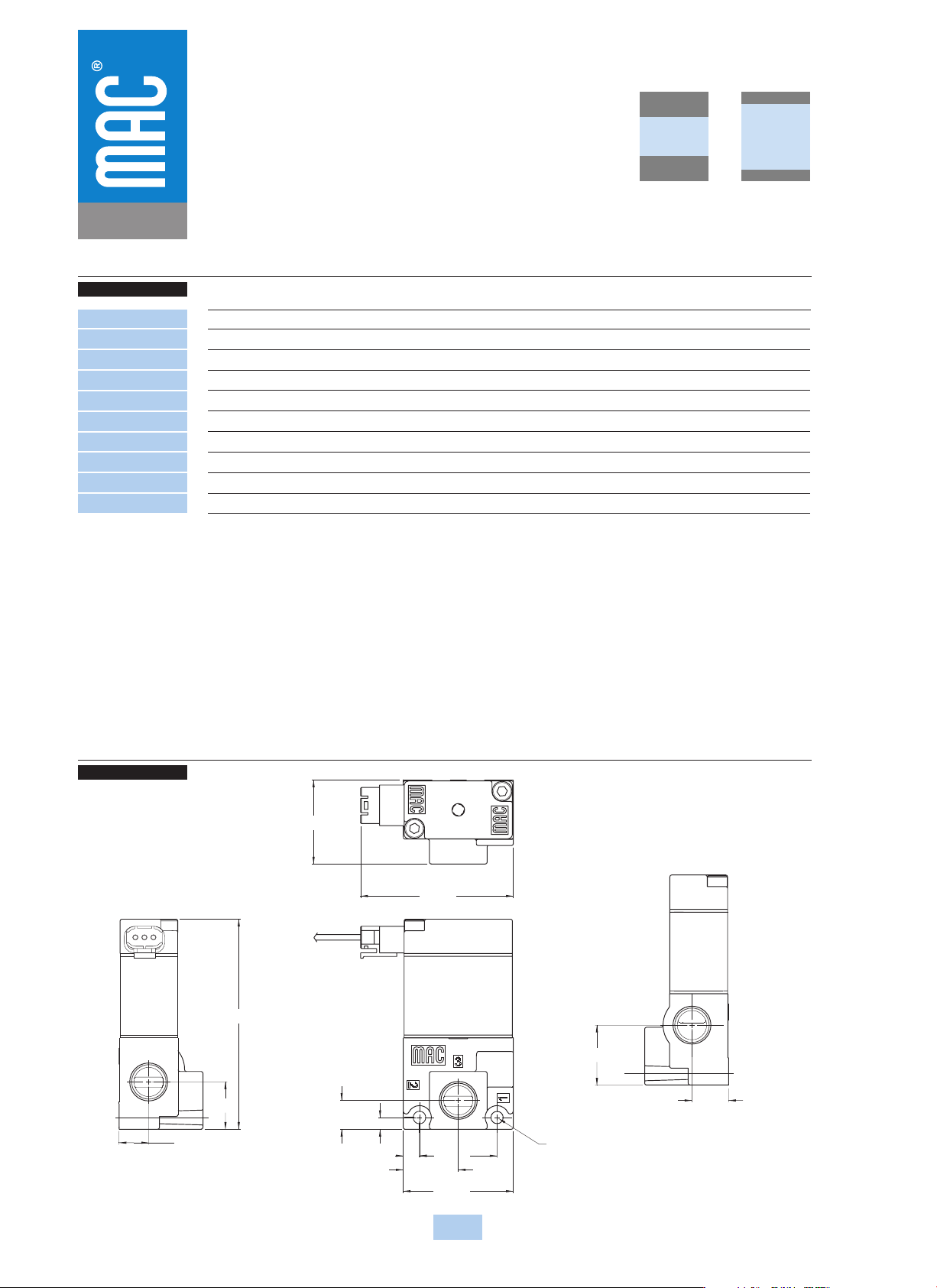

DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
24
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
36
Fluid :
Pressure range :
Lubrication :
Filtration :
Temperature range :
Flow :
Coil :
Voltage range :
Protection :
Power :
Compressed air, vacuum, inert gases
Vacuum to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
1.8 Watt: (0.15 C
v
), 2.4 Watt: (0.15 C
v
), 5.4 Watt: (0.30 C
v
)
Class A wire (#22 AWG x 12), continuous duty
-15% to +10% of nominal voltage
Consult factory
5.4 W – 2.4 W – 1.8 W
• BSPP threadsOption :
