18 18 10 0 % 10 0 % 10 0 % 10 0 % MONTHS W ARRANTY OF PRODUCTION TESTED DIMENSIONS TECHNICAL DATA Dimensions shown are metric (mm) 262 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Se…
HOW TO ORDER
261
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B

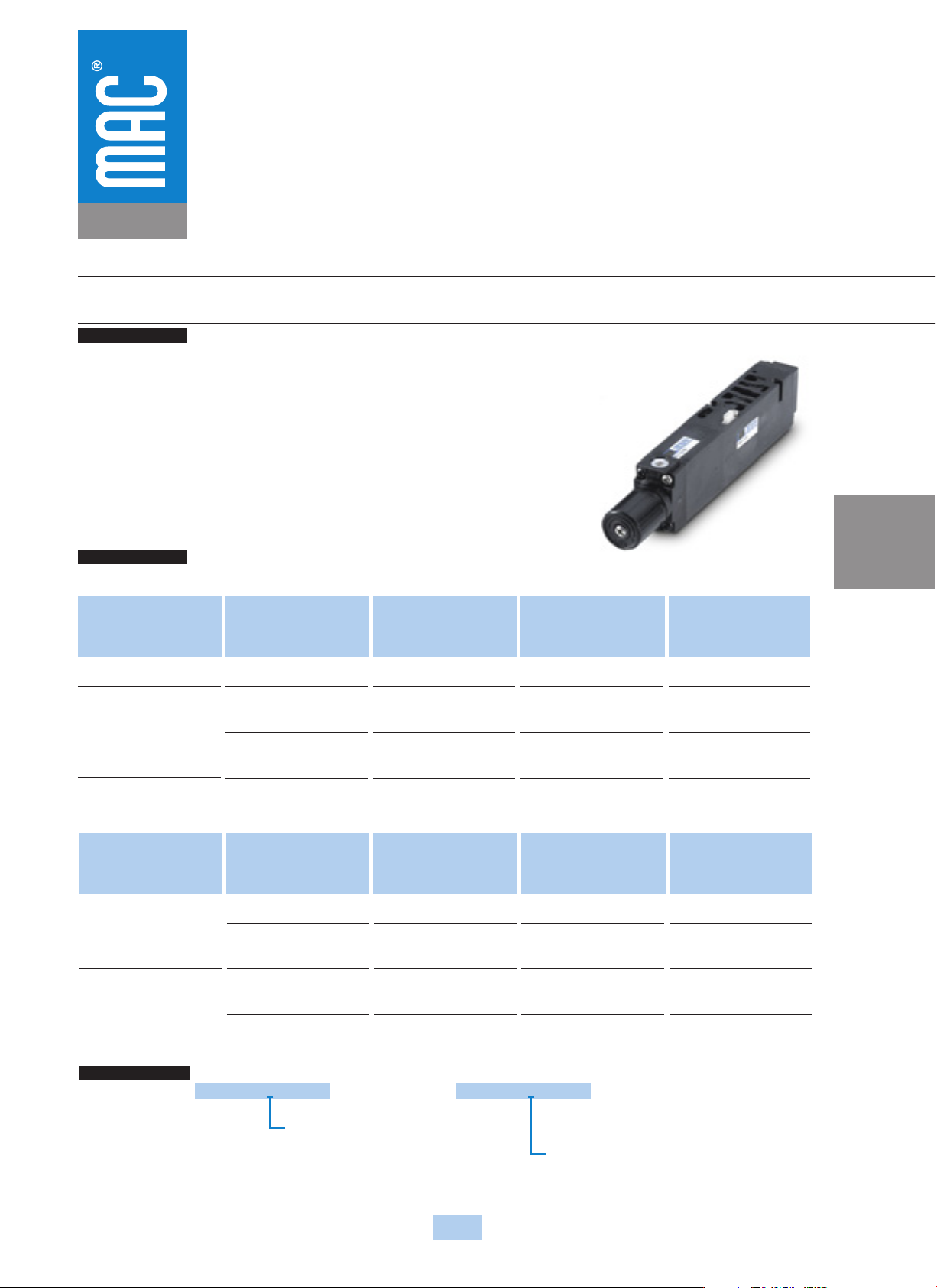

Series PR92C
Sandwich selector pressure regulator with manual adjust knob
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
No Gage
Gage with face
perpendicular to
manual operator
Gage with face
parallel to
manual operator
Select to A port
Regulator A end
By-pass plate B end
PR92C-JPAA
PR92C-JPBA
PR92C-JPCA
Select to B port
Regulator B end
By-pass plate A end
PR92C-JRAA
PR92C-JRBA
PR92C-JRCA
Select to A port Reg. both ends
A end low press.
B end high press.
PR92C-JSAA
PR92C-JSBA
PR92C-JSCA
Select to B port Reg. both ends
A end high press.
B end low press.
PR92C-JTAA
PR92C-JTBA
PR92C-JTCA
REGULATORS FOR "PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
Note: above models are coded for use with single solenoid valves
Notes: - Regulating range for above models is 0 to 120 PSI. For other ranges, see technical data page
- Use single pressure valve for all above models.
Gage
No Gage
Gage with face
perpendicular to
manual operator
Gage with face
parallel to
manual operator
Select to A port
Regulator A end
By-pass plate B end
PR92C-LPAA
PR92C-LPBA
PR92C-LPCA
Select to B port
Regulator B end
By-pass plate A end
PR92C-LRAA
PR92C-LRBA
PR92C-LRCA
Select to A port Reg. both ends
A end low press.
B end high press.
PR92C-LSAA
PR92C-LSBA
PR92C-LSCA
Select to B port Reg. both ends
A end high press.
B end low press.
PR92C-LTAA
PR92C-LTBA
PR92C-LTCA
REGULATORS FOR "NON PLUG-IN" VALVES (CODED FOR KNOB ADJUSTMENT)
PR92C-
X
0
XX
OPTIONS
M Knob
D Slotted stem
S Slotted stem with locknut
Regulator less sandwich block
PR92C-
XXXX
A Slotted stem, single solenoid
B Slotted stem, double solenoid
C Slotted stem, non plug-in
K Knob, double solenoid
N Slotted stem w/ locknut, single solenoid
P Slotted stem w/ locknut, double solenoid
R Slotted stem w/ locknut, non plug-in
Other adjustment
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
262
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series PR92C
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
0.8 C
v
EX
IN
VAC TO 120 PSI
WATTS
ELECTRICAL
MODEL
MODIF.
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI. USA
171.5
W/ DOUBLE REGULATOR
APPROX.
241.0
EP
GAGE
PILOT
APPROX.
47.5
APPROX.
135.0
MANUAL
OPERATOR
• R-92003 : end plate kit • R-92003-01: by-pass end plate kit
• Gage kit 0 – 160 PSI : N-92006-01 • Gage kit 0 – 100 PSI : N-92006-02
• Gage kit 0 – 60 PSI : N-92006-03
• Pressure range: PR92C-xxxA (A 0 to 120 PSI)
B 0 to 80 PSI
C 0 to 30 PSI
D 0 to 120 PSI “A” end, 0 to 80 PSI “B” end
E 0 to 120 PSI “B” end, 0 to 80 PSI “A” end
F 0 to 120 PSI “A” end, 0 to 30 PSI “B” end
G 0 to 120 PSI “B” end, 0 to 30 PSI “A” end
H 0 to 80 PSI “A” end, 0 to 30 PSI “B” end
J 0 to 80 PSI “B” end, 0 to 30 PSI “A” end
Spare parts :
Options :
HOW TO ORDER
263
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B
Series PR93A
Sandwich pressure regulator with air pilot adjust
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
Gage port only (plugged)
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR93A-DAAA
PR93A-DABA
PR93A-DACA
Regulator B end
Single pressure
PR93A-DBAA
PR93A-DBBA
PR93A-DBCA
Regulator A
*
end with
by-pass end plate B end
PR93A-DCAA
PR93A-DCBA
PR93A-DCCA
Regulator B
*
end with
by-pass end plate A end
PR93A-DDAA
PR93A-DDBA
PR93A-DDCA
Regulator
*
both ends
PR93A-DEAA
PR93A-DEBA
PR93A-DECA
REGULATORS FOR "PLUG-IN" VALVES
Note: Above models may be used with either single or double solenoid valves.
* For use with dual pressure valves.
Gage
Gage port only (plugged)
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR93A-EAAA
PR93A-EABA
PR93A-EACA
Regulator B end
Single pressure
PR93A-EBAA
PR93A-EBBA
PR93A-EBCA
Regulator A
*
end with
by-pass end plate B end
PR93A-ECAA
PR93A-ECBA
PR93A-ECCA
Regulator B
*
end with
by-pass end plate A end
PR93A-EDAA
PR93A-EDBA
PR93A-EDCA
Regulator
*
both ends
PR93A-EEAA
PR93A-EEBA
PR93A-EECA
REGULATORS FOR "NON PLUG-IN" VALVES
