DIMENSIONS Dimensions shown are metric (mm) 18 18 10 0 % 10 0 % 10 0 % 10 0 % MONTHS W ARRANTY OF PRODUCTION TESTED 238 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Series ISO 2 173.…
Bases according to ISO 5599/1
HOW TO ORDER
237
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
ISO 01
ISO 02
ISO 1
ISO 2
ISO 3
Series
Series
ISO 2
Series
Port size
3/8” NPTF
1/2” NPTF
Wired for
Single solenoid
Double solenoid
Single solenoid
Double solenoid
Side ports
MB-P2A-221-A
MB-P2A-221-B
MB-P2A-231-A
MB-P2A-231-B
Side ports w/ bottom
2 & 4 ports
MB-P2A-222-A
MB-P2A-222-B
MB-P2A-232-A
MB-P2A-232-B
All side & bottom ports
MB-P2A-223-A
MB-P2A-223-B
MB-P2A-233-A
MB-P2A-233-B
Port size
3/8” NPTF
1/2” NPTF
Wired for
Single solenoid
Double solenoid
Single solenoid
Double solenoid
Side ports
MM-P2A-221-A
MM-P2A-221-B
MM-P2A-231-A
MM-P2A-231-B
Side ports w/ bottom
2 & 4 ports
MM-P2A-222-A
MM-P2A-222-B
MM-P2A-232-A
MM-P2A-232-B
All side & bottom ports
(see note)
MM-P2A-223-A
MM-P2A-223-B
MM-P2A-233-A
MM-P2A-233-B
INDIVIDUAL BASE
MANIFOLD BASE
Accessories: M-P2001 Valve blanking plate.
N-P2004-01 Manifold fastening kit.
32839 Inlet/exhaust isolator plug.
Plug-in base / manifold
MM-P2A-22
X
-
X
OPTIONS
25 for 3/8" port – common external pilot
26 for 1/2" port – common external pilot
MM-P2A-
XXX
-A
J wired for sgl solenoid
K wired for double solenoid
MX-P2A-
XXX
-
X
JA
JA 110/120 volt
JB 220/240 volt
DA 24 volt
Manifold options :
Base / Manifold option: light(s)
External pilot
Terminal strip
(N/A with light)
Note : Ports 1, 3 & 5 are always 1/2”

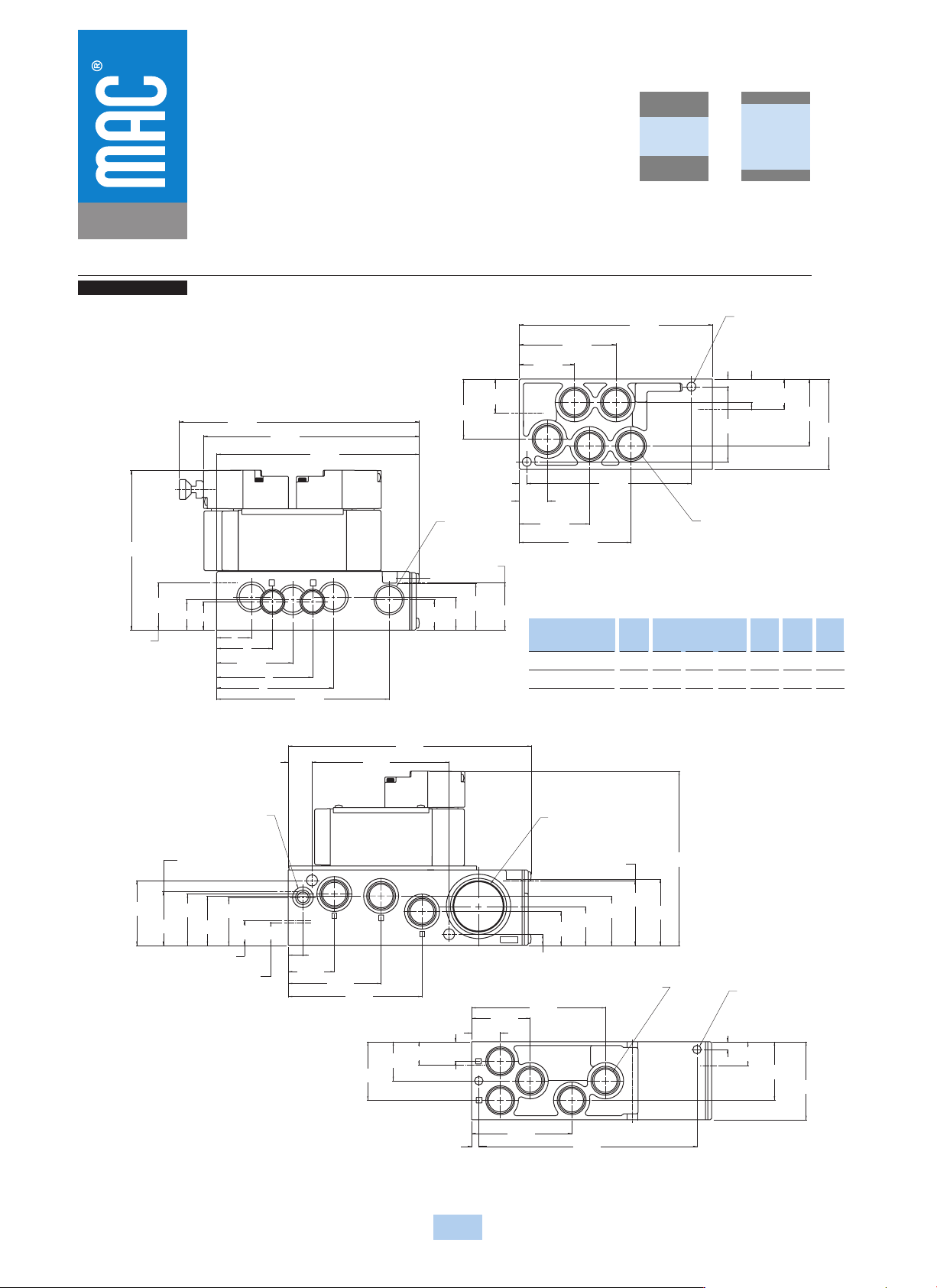

DIMENSIONS
Dimensions shown are metric (mm)
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
238
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
ISO 2
173.8
34.0
B
PORTS
OPTIONAL BOTTOM
CONDUIT
1/2" N.P.S.M.
(2)MTG HOLES
6.5 DIA. THRU
54.50
5.5
#14
#12
22.0
24.5
PILOT 1/8"
#14 EXTERNAL
34.5
34.5
PILOT 1/8"
#12 EXTERNAL
119.25
5.5
SINGLE SOLENOID
DOUBLE SOLENOID
146.8
22.0
125.0
55.0
A
C
G
F
E
65.5
17.0
48.5
81.0
51.0
20.5
43.5
40.0
70.0
140.0
1
3
2
4
5
115.9
156.1
4
2
COND
3
5
1
5
1
3
4
2
SIDE CYL.
CENT. OF 1/2"
SIDE CYL.
CENT. OF 3/8"
SOLENOID
SINGLE & DOUBLE
187.0
18.3
105.5
50.0
39.5
38.0
37.0
19.0
17.5
11.3
35.5
71.5
103.0
26.0
30.0
38.0
103.0
45.0
22.0
15.0
30.0
45.0
77.0
168.00 5.50
45.0
60.0
(2)MTG HOLES
6.5 DIA. THRU
18.5
#14
PILOT 1/8"
#14 EXTERNAL
#12
18.0
8.5
50.0
41.5
134.1
PILOT 1/8"
#12 EXTERNAL
CONDUIT
1-1/4" N.P.S.M.
EXTERNAL PILOT 1/8"
OPTIONAL COMMON
PORTS
OPTIONAL BOTTOM
51.0
6.0
Individual
Manifold
Dim
3/8” NPTF
1/2” NPTF
A
25.2
24.0
B
22.7
21.0
C
20.6
19.0
D
26.7
25.5
E
40.5
40.0
F
69.4
70.0
G
83.3
84.5
Bases according to ISO 5599/1
HOW T O ORDER
239
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
ISO 01
ISO 02
ISO 1
ISO 2
ISO 3
Series
ISO 3
Series
Port size
1/2” NPTF
3/4” NPTF
Side ports
MB-A3B-221
MB-A3B-231
Bottom ports
MB-A3B-223
MB-A3B-233
Bottom cylinder
ports 2 and 4.
MB-A3B-222
MB-A3B-232
Bottom inlet port 1
MB-A3B-224
MB-A3B-234
INDIVIDUAL BASE
Port size
1/2” NPTF
3/4” NPTF
Side ports
MM-B3A-221-A
MM-B3A-231-A
Bottom ports
MM-B3A-223-A
MM-B3A-233-A
Bottom cylinder
ports 2 and 4.
MM-B3A-222-A
MM-B3A-232-A
Bottom inlet port 1
MM-B3A-224-A
MM-B3A-234-A
MANIFOLD BASE
Manifold fastening kit: N-P3003-01.
Valve blanking plate: M-P3001.
Inlet/exhaust isolator plug: 32845.
Non plug-in base / manifold
Individual Base Options:
MB-A3B-XXXF
Optional Integral Flow Controls
