DIMENSIONS Dimensions shown are metric (mm) 18 18 10 0 % 10 0 % 10 0 % 10 0 % MONTHS W ARRANTY OF PRODUCTION TESTED 236 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Series ISO 2 3 1 …

100%1 / 280

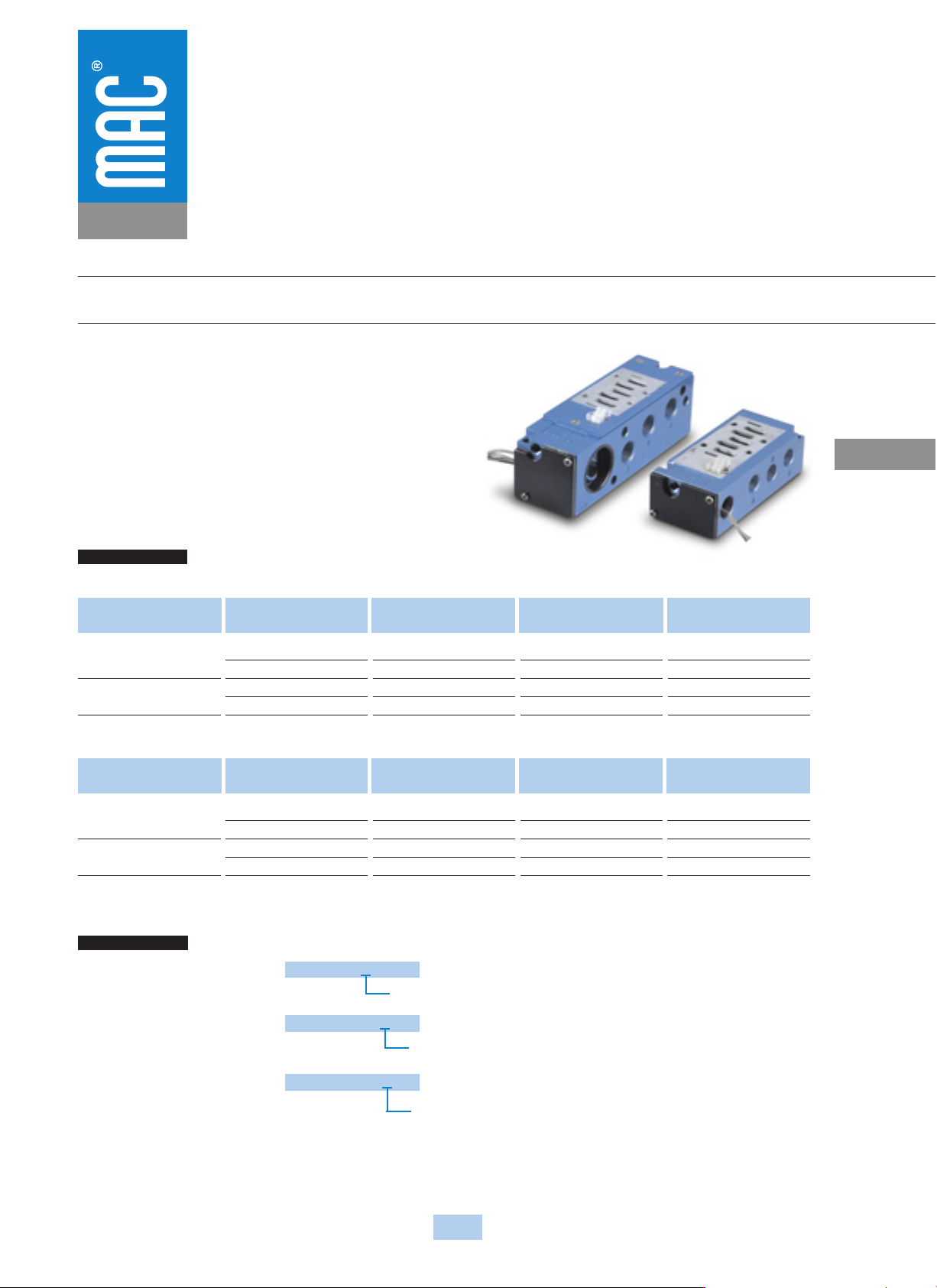

Bases according to ISO 5599/1
HOW TO ORDER
235
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
ISO 01
ISO 02
ISO 1
ISO 2
ISO 3
Series
Series
ISO 2
Series
Port size
3/8” NPTF
1/2” NPTF
Side ports
MB-A2B-221
MB-A2B-231
Bottom ports
MB-A2B-223
MB-A2B-233
Bottom cylinder
ports 2 and 4.
MB-A2B-222
MB-A2B-232
Bottom inlet port 1
MB-A2B-224
MB-A2B-234
INDIVIDUAL BASE
Port size
3/8” NPTF
1/2” NPTF
Side ports
MM-A2B-221
MM-A2B-231
Bottom ports
MM-A2B-223
MM-A2B-233
Bottom cylinder
ports 2 and 4.
MM-A2B-222
MM-A2B-232
Bottom inlet port 1
MM-A2B-224
MM-A2B-234
MANIFOLD BASE
Manifold fastening kit : N-63002-01.
Valve blanking plate: MA2003.
Inlet/exhaust isolator plug: 32839.
Non plug-in base / manifold

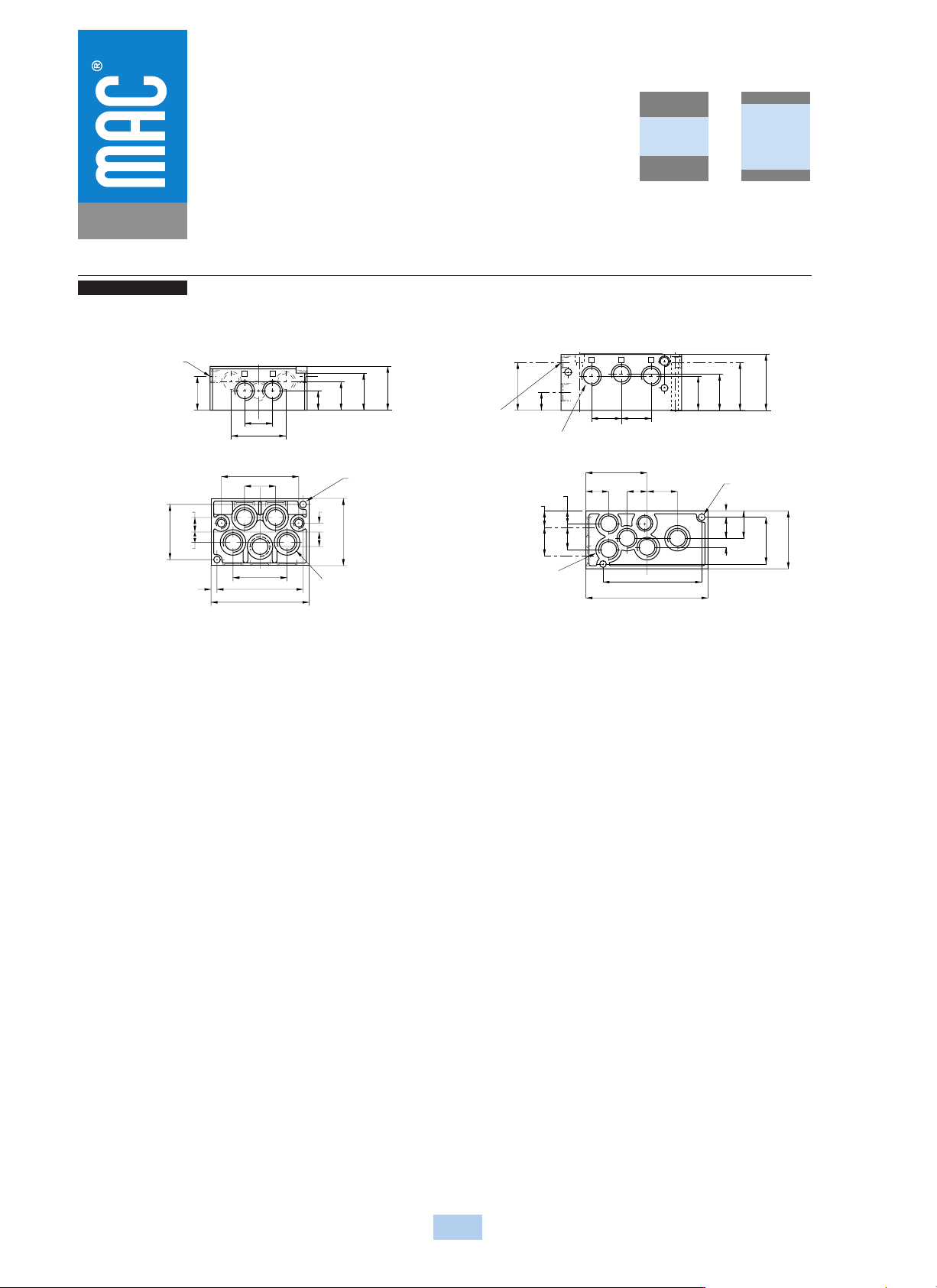

DIMENSIONS
Dimensions shown are metric (mm)
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
236
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series
ISO 2
3 1 5
2 4
4
3
2
1
5
26,0
112,0
139,0
9,0
30,5
52,0
64,0
± 0,2
7,0
14,0
14,5
32,0
30,0
23,0 34,0
70,0
34,0 34,0
39,0
42,0
50,5
38,0
32,0
60,0
88,0
36,0
16,0
62,0
12,0
62,0
16,0
10,0
75,0
98,0
7,0
112,0
23,0
32,0
42,0
49,0
62,1
54,0
20,0
24
53
1
DIN 5599/1
OPTIONAL
BOTTOM PORTS
Ø 7,5
2 MTG. HOLES
OPTIONAL
BOTTOM PORTS
1/8”
EXTERNAL PILOT
1/2”-3 PORTS
EACH SIDE
Ø 6,5
2 MTG. HOLES
1/8”
EXTERNAL PILOT
Individual Manifold
Bases according to ISO 5599/1
HOW TO ORDER
237
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
ISO 01
ISO 02
ISO 1
ISO 2
ISO 3
Series
Series
ISO 2
Series
Port size
3/8” NPTF
1/2” NPTF
Wired for
Single solenoid
Double solenoid
Single solenoid
Double solenoid
Side ports
MB-P2A-221-A
MB-P2A-221-B
MB-P2A-231-A
MB-P2A-231-B
Side ports w/ bottom
2 & 4 ports
MB-P2A-222-A
MB-P2A-222-B
MB-P2A-232-A
MB-P2A-232-B
All side & bottom ports
MB-P2A-223-A
MB-P2A-223-B
MB-P2A-233-A
MB-P2A-233-B
Port size
3/8” NPTF
1/2” NPTF
Wired for
Single solenoid
Double solenoid
Single solenoid
Double solenoid
Side ports
MM-P2A-221-A
MM-P2A-221-B
MM-P2A-231-A
MM-P2A-231-B
Side ports w/ bottom
2 & 4 ports
MM-P2A-222-A
MM-P2A-222-B
MM-P2A-232-A
MM-P2A-232-B
All side & bottom ports
(see note)
MM-P2A-223-A
MM-P2A-223-B
MM-P2A-233-A
MM-P2A-233-B
INDIVIDUAL BASE
MANIFOLD BASE
Accessories: M-P2001 Valve blanking plate.
N-P2004-01 Manifold fastening kit.
32839 Inlet/exhaust isolator plug.
Plug-in base / manifold
MM-P2A-22
X
-
X
OPTIONS
25 for 3/8" port – common external pilot
26 for 1/2" port – common external pilot
MM-P2A-
XXX
-A
J wired for sgl solenoid
K wired for double solenoid
MX-P2A-
XXX
-
X
JA
JA 110/120 volt
JB 220/240 volt
DA 24 volt
Manifold options :
Base / Manifold option: light(s)
External pilot
Terminal strip
(N/A with light)
Note : Ports 1, 3 & 5 are always 1/2”
