HOW TO ORDER 249 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Pressure regulators OPERATIONAL BENEFITS Series PR37A PR42B PR46A PR47A PR48B PRA02A PR92C PR93A PRA1A PRA01A PRP1A PRA2…
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
248
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
F
E
98.4
APPROX
APPROX
APPROX
84.3
102.8
Series PR37A
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
0.4 C
v
• Pressure regulator (less sandwich block) : PR37A-G0AA (knob), PR37A-C0AA (slotted stem), PR37A-L0AA (slotted stem with locknut)
• Gages : 24177-160 (0 to 160 PSI, 23 mm)
24177-100 (0 to 100 PSI, 23 mm)
24177-060 (0 to 60 PSI, 23 mm)
Spare parts :
HOW TO ORDER
249
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B

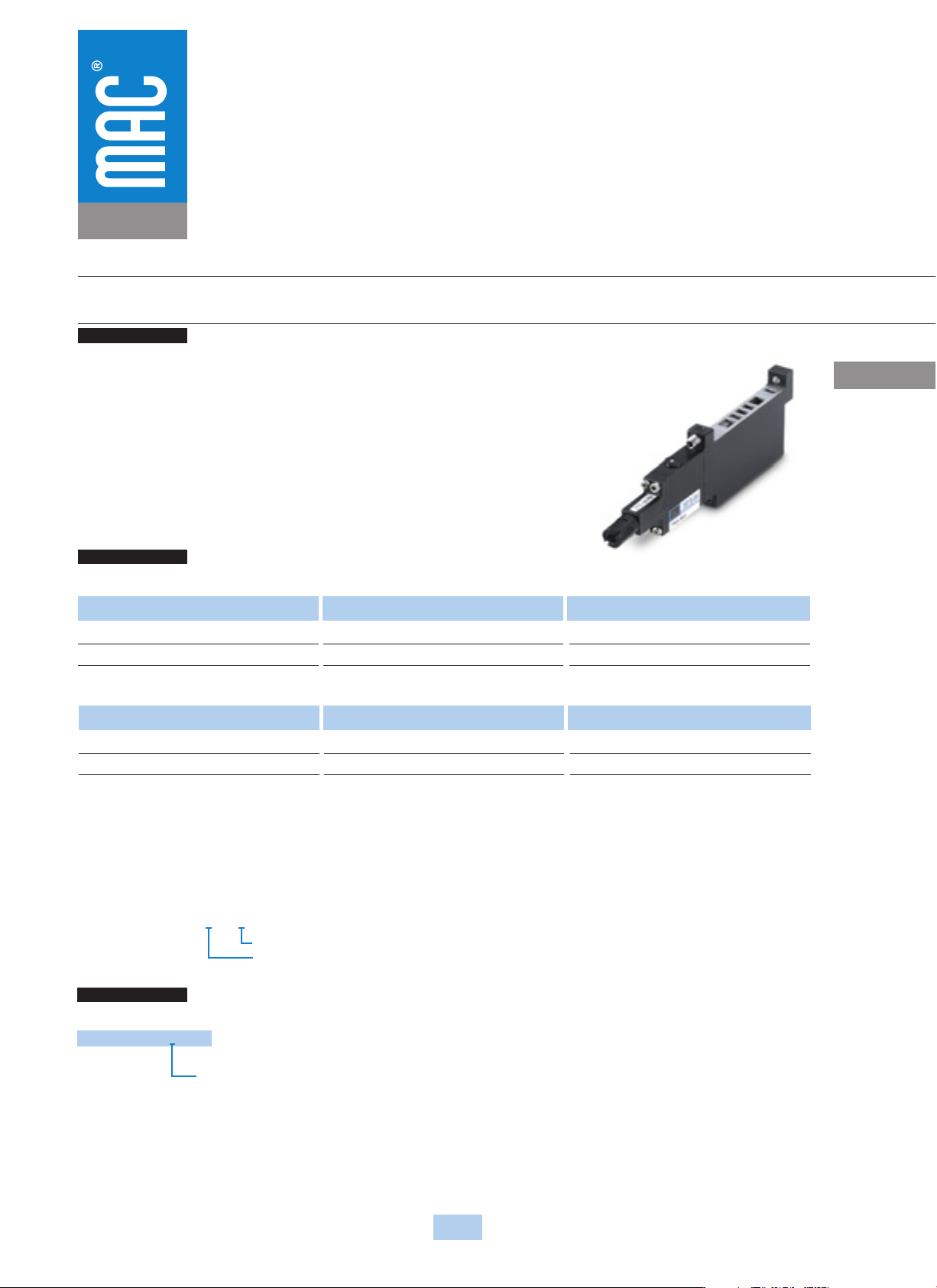

Series PR42B
Sandwich pressure regulator with manual adjust knob
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
OPTIONS
Notes:
- External pilot regulator required only when supply pressure (primary) to the valve is below the
minimum operating pressure of the 42 series valve.
- When an internal pilot regulator is used with the 42 series valve, the valve should be ordered
as external pilot and the base should be ordered as internal pilot. This ensures that the pilot
supply is not regulated. If an internal pilot valve and base are used with an internal pilot
regulator, the pilot supply is regulated.
Example: Valve 42B-AM D -AA A -GxxP-xxx with PR42B-AAAA
PR42B-AAA
A
A 0 to 120 PSI
B 0 to 80 PSI
C 0 to 40 PSI
Pressure range :
External pilot option in valve
Internal pilot option in base
Gage
No gage port
With gage Port
Regulator "12” end Internal pilot
PR42B-BAAA
PR42B-BABA
Regulator "12” end External pilot
PR42B-BBAA
PR42B-BBBA
NON PLUG-IN SANDWICH REGULATORS
Gage
No gage port
With gage Port
Regulator "12” end Internal pilot
PR42B-AAAA
PR42B-AABA
Regulator "12” end External pilot
PR42B-ABAA
PR42B-ABBA
PLUG-IN SANDWICH REGULATORS
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
250
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Series PR42B
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
0.25 C
v
166.6
180.6
-+
L
O
C
K
-+
L
O
C
K
-+
L
O
C
K
-+
L
O
C
K
2
4
2
4
4
2
4
2
X
5
3
1
101.7
3
1
5
113.2
• Pressure regulator (less sandwich block) : PR42B-C0xx • Gage port plug: N-PE003
• #10 -32 to 1/8” adapter : N-35005 • Gage: 24177-160 (0 to 160 PSI, 23 mm)
24177-100 (0 to 100 PSI, 23 mm)
24177-060 (0 to 60 PSI, 23 mm)
Spare parts :
NON PLUG-IN
PLUG-IN
