OPERATIONAL BENEFITS Direct solenoid and solenoid pilot operated valves HOW TO ORDER 159 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. 36 32 37 38 33 34 52 67 46 44 47 42 400 48 92 93…

10 0

MONTHS

WARRANTY

PRODUCTION

TESTED

158

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

Series

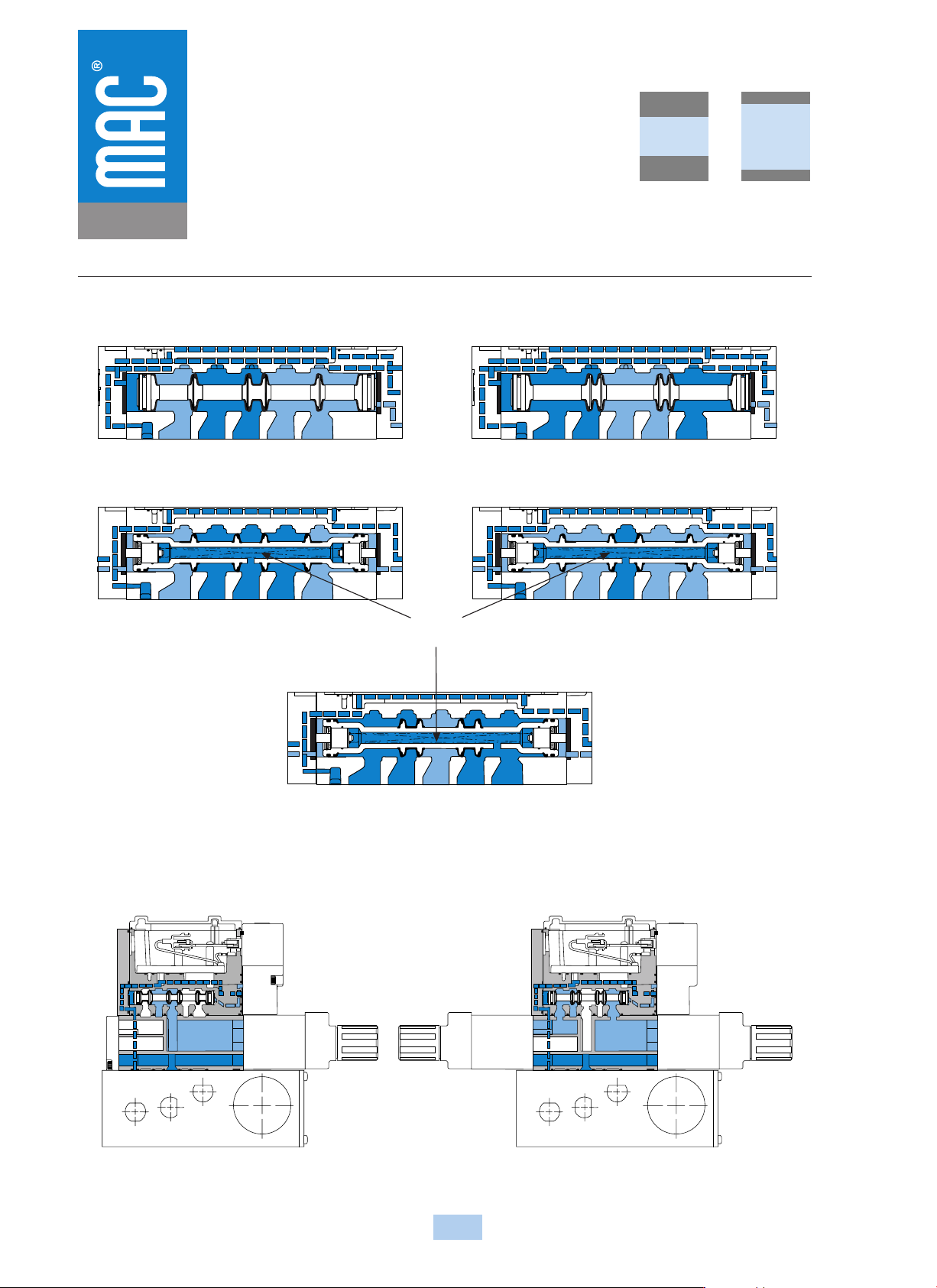

SPOOL CONFIGURATIONS

B A

2 POSITION SINGLE PRESSURE

SHOWN WITH "B" OPERATOR ENERGIZED

2 POSITION DUAL PRESSURE

SHOWN WITH "B" OPERATOR ENERGIZED

3 POSITION OPEN CENTER

3 POSITION DUAL PRESSURE, PRESSURE CENTER

3 POSITION CLOSED CENTER

EXH B IN A EXH

B A

EXH B IN A EXH

B A

IN B EXH A IN

B A

EXH B IN A EXH

B A

IN B EXH A IN

SPRING CENTERING

REGULATOR CONFIGURATIONS

MANIFOLD WITH REGULATOR - SINGLE PRESSURE

MANIFOLD WITH REGULATOR - DUAL PRESSURE

SINGLE REGULATOR - SINGLE PRESSURE

Pressure supplied to the individual or manifold base passes through the regulator.

Regulated pressure is supplied to the pressure path of the valve.

Note: For both single and dual pressure, air supply to the pilot system is never regulated.

DUAL REGULATOR - DUAL PRESSURE

Pressure supplied from each regulator is divided in the block.

Regulated pressure from “A” regulator supplies cylinder port “A”.

Regulated pressure from “B” regulator supplies cylinder port “B”.

Dual pressure regulators require dual pressure spool in valve.

EXH. EXH.IN. AB INEXH. ABIN

OPERATIONAL BENEFITS

Direct solenoid and solenoid pilot operated valves

HOW TO ORDER

159

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

400

ISO 1

ISO 2

ISO 3

48P

ISO 01

ISO 02

Series

Function Port size Flow (Max) Individual mounting Series

5/2, 5/3 3/8” - 1/2” 3.8 C

Inline

1. Unique patented Macsolenoid® for fastest

possible response times and virtually

burn-out proof solenoid operation.

2. Balanced poppet 4-way pilot valve provides

maximum shifting forces, precise

repeatability and consistent operation.

3. Air only return. Optional memory spring is

also available.

4. Optional low wattage DC solenoid down to

1 watt.

5. MAC spool and bore combination wipes

away contamination, eliminates sticking and

allows for use on non-lube service.

DM-D

XXX

SOLENOID OPERATOR

Voltage

110/50, 120/60

220/50, 240/60

24/50, 24/60

24 VDC (1.8W)

24 VDC (5.4W)

24 VDC (12.7W)

Wire length

18” (Flying leads)

24” (Flying leads)

Connector

Manual operator

Non-locking recessed

Locking recessed

Electrical connection

Square connector

Square connector with light

Rectangular connector

Rectangular connector with light

Flying leads

XX X X XX

* Other options available, see page 309.

Other options available for the 93 series valves, see page 169.

OPTIONS

5/2

Single operator

93A-AJ0-B0J-DM-D

XXX

93A-AJ0-C0J-DM-D

XXX

93A-AJ0-B0K-DM-D

XXX

93A-AJ0-C0K-DM-D

XXX

5/2

Double operator

93A-BJ0-B0J-DM-D

XXX

93A-BJ0-C0J-DM-D

XXX

93A-BJ0-B0K-DM-D

XXX

93A-BJ0-C0K-DM-D

XXX

5/3

Closed center

93A-EJ0-B0J-DM-D

XXX

93A-EJ0-C0J-DM-D

XXX

93A-EJ0-B0K-DM-D

XXX

93A-EJ0-C0K-DM-D

XXX

5/3

Open center

93A-FJ0-B0J-DM-D

XXX

93A-FJ0-C0J-DM-D

XXX

93A-FJ0-B0K-DM-D

XXX

93A-FJ0-C0K-DM-D

XXX

Port size

3/8” NPTF

1/2” NPTF

3/8” NPTF

1/2” NPTF

Pilot air

Internal

External

SINGLE PRESSURE MODELS

5/2

Single operator

93A-CJ0-B0J-DM-D

XXX

93A-CJ0-C0J-DM-D

XXX

93A-CJ0-B0K-DM-D

XXX

93A-CJ0-C0K-DM-D

XXX

5/2

Double operator

93A-DJ0-B0J-DM-D

XXX

93A-DJ0-C0J-DM-D

XXX

93A-DJ0-B0K-DM-D

XXX

93A-DJ0-C0K-DM-D

XXX

5/3

Pressure center

93A-HJ0-B0J-DM-D

XXX

93A-HJ0-C0J-DM-D

XXX

93A-HJ0-B0K-DM-D

XXX

93A-HJ0-C0K-DM-D

XXX

Port size

3/8” NPTF

1/2” NPTF

3/8” NPTF

1/2” NPTF

Pilot air

Internal

External

DUAL PRESSURE MODELS

315

93A-X

X-XXX-DM-D

XXX

J Standard pilot exhaust

K Pilot exhaust to main exhaust (use DU pilot)

Pilot exhaust :

2 4

3 1 5

2 4

3 1 5

2 4

3 1 5

2 4

3 1 5

2 4

3 1 5

2 4

3 1 5

10 0

MONTHS

WARRANTY

PRODUCTION

TESTED

DIMENSIONS

TECHNICAL DATA

Dimensions shown are metric (mm)

160

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

24.4 52.1

16.1

40.3

TYP. (2)

Ø 6.20

SINGLE SOLENOID

DOUBLE SOLENOID

EP 42

184.3

155.8

VAC TO 120 PSI

WATTS

ELECTRICAL

MODEL

AUCKLAND,N.Z.

LIEGE,BELGIUM

WIXOM,MI.USA

MODIF.

62.9

Series

Fluid :

Pressure range :

Lubrication :

Filtration :

Temperature range :

Flow :

Coil :

Voltage range :

Protection :

Power :

Response times :

(with 5.4 W coil)

Compressed air, vacuum, inert gases

Internal Pilot: 20 to 120 PSI

External Pilot: Vacuum to 120 PSI

Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)

40 µ

0°F to 120°F (-18°C to +50°C)

3.8 C

Class A continuous duty, #22 AWG x 18 leads

-15% to +10% of nominal voltage

Consult factory

~ Inrush 7.6 VA Holding: 4.8 VA

= 1.8 to 12.7 W

Energize : 13 ms

De-energize : 10 ms

• BSPP threads Option :
