HOW TO ORDER 277 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Pressure regulators OPERATIONAL BENEFITS Series PR37A PR42B PR46A PR47A PR48B PRA02A PR92C PR93A PRA1A PRA01A PRP1A PRA2…

10 0

MONTHS

WARRANTY

PRODUCTION

TESTED

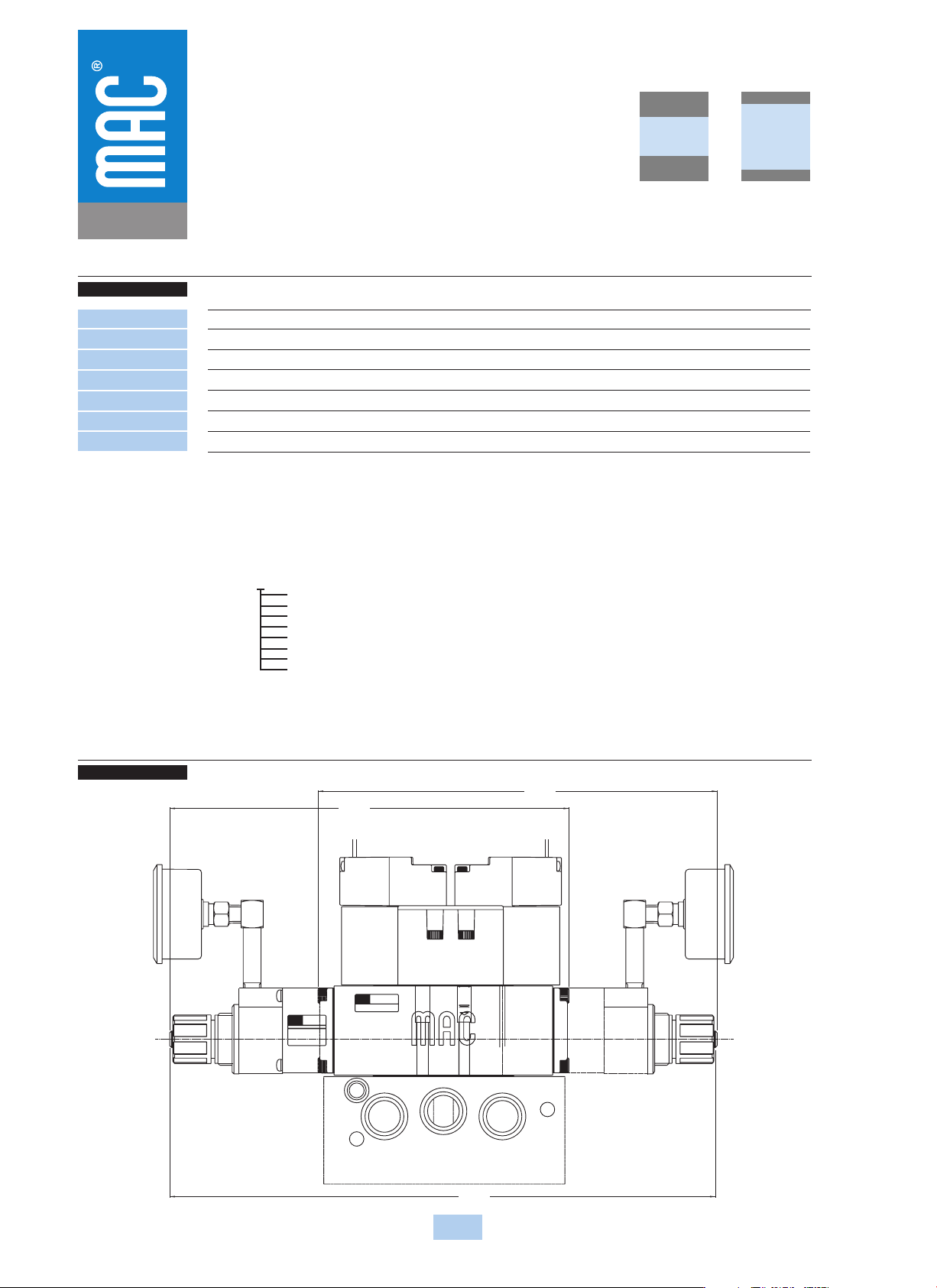

DIMENSIONS

TECHNICAL DATA

Dimensions shown are metric (mm)

276

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

Series PRA1A

Fluid :

Pressure range :

Regulating range :

Lubrication :

Filtration :

Temperature range :

Flow :

Compressed air, inert gases

0 to 150 PSI

0 to 120 PSI (other ranges see below)

Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)

40 µ

0°F to 120°F (-18°C to +50°C)

1.0 C

214.7

297.3

214.7

• Pressure regulator (less sandwich block) : PRA1A-J0AA (KNOB), PRA1A-C0AA (SLOTTED STEM), PRA1A-M0AA (SLOTTED STEM WITH LOCKNUT).

• Gage : N-82016-01 (0-120 PSI perpendicular)

N-82016-02 (0-120 PSI parallel)

N-82016-03 (0-80 PSI perpendicular)

N-82016-04 (0-80 PSI parallel)

N-82016-05 (0-30 PSI perpendicular)

N-82016-06 (0-30 PSI parallel)

PRA1A-XXXA

Replace by B - 0 to 80 PSI

Replace by C - 0 to 30 PSI

Replace by D - 0 to 120 PSI on “14” end - 0 to 80 PSI on “12” end

Replace by E - 0 to 120 PSI on “12” end - 0 to 80 PSI on “14” end

Replace by F - 0 to 120 PSI on “14” end - 0 to 30 PSI on “12” end

Replace by G - 0 to 120 PSI on “12” end - 0 to 30 PSI on “14” end

Replace by H - 0 to 80 PSI on “14” end - 0 to 30 PSI on “12” end

Replace by J - 0 to 80 PSI on “12” end - 0 to 30 PSI on “14” end

Spare parts :

Regulating range options :

HOW TO ORDER

277

Consult “Precautions” page 327 before use, installation or service of MAC Valves..

Pressure regulators

OPERATIONAL BENEFITS

Series

PR37A

PR42B

PR46A

PR47A

PR48B

PRA02A

PR92C

PR93A

PRA1A

PRA01A

PRP1A

PRA2D

PRP2B

PRA3C

PRP3B

Series PRA1A

Non plug-in sandwich pressure regulator with air pilot adjust

1. Easy mounting : saves on installation costs in

comparison with inline regulators.

2. Allows to have compact, all-included units.

3. Large orifice provides high flow.

4. Various functions available.

5. Simple, reliable and solid design.

Gage

No gage

Gage

perpendicular

to regulator(s)

Gage

parallel

to regulator(s)

Single pressure

Regulator 14 end

Same regulated pressure

to ports 2 and 4

PRA1A-DAAA

PRA1A-DABA

PRA1A-DADA

Single pressure

Regulator 12 end

Same regulated pressure

to ports 2 and 4

PRA1A-DCAA

PRA1A-DCBA

PRA1A-DCDA

Dual pressure

Regulator 14 end

Regulated pressure

to port 4

PRA1A-DBAA

PRA1A-DBBA

PRA1A-DBDA

Dual pressure

Regulator 12 end

Regulated pressure

to port 2

PRA1A-DDAA

PRA1A-DDBA

PRA1A-DDDA

Dual pressure

Dual regulator

Two regulated pressures

to ports 2 and 4

PRA1A-DEAA

PRA1A-DECA

PRA1A-DEEA

INTERNAL PILOT

Gage

No gage

Gage

perpendicular

to regulator(s)

Gage

parallel

to regulator(s)

Single pressure

Regulator 14 end

Same regulated pressure

to ports 2 and 4

PRA1A-EAAA

PRA1A-EABA

PRA1A-EADA

Single pressure

Regulator 12 end

Same regulated pressure

to ports 2 and 4

PRA1A-ECAA

PRA1A-ECBA

PRA1A-ECDA

Dual pressure

Regulator 14 end

Regulated pressure

to port 4

PRA1A-EBAA

PRA1A-EBBA

PRA1A-EBDA

Dual pressure

Regulator 12 end

Regulated pressure

to port 2

PRA1A-EDAA

PRA1A-EDBA

PRA1A-EDDA

Dual pressure

Dual regulator

Two regulated pressures

to ports 2 and 4

PRA1A-EEAA

PRA1A-EECA

PRA1A-EEEA

EXTERNAL PILOT AND REMOTE AIR

- To be used with dual pressure valves.

***

Main valve body assembly must be external pilot model. Pilots

are supplied internally from primary pressure in regulator block.

Cannot field convert regulator block from Single Pressure to dual

pressure. Body/Block to base mounting screw #35336.

243.6

194.1

10 0

MONTHS

WARRANTY

PRODUCTION

TESTED

DIMENSIONS

TECHNICAL DATA

Dimensions shown are metric (mm)

278

Consult “Precautions” page 327 before use, installation or service of MAC Valves..Consult “Precautions” page 327 before use, installation or service of MAC Valves..

Series PRA1A

Fluid :

Pressure range :

Regulating range :

Lubrication :

Filtration :

Temperature range :

Flow :

Compressed air, inert gases

0 to 150 PSI

0 to 120 PSI

Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)

40 µ

0°F to 120°F (-18°C to +50°C)

1.0 C

• Pressure regulator (less sandwich block) : PRA1A-F0AA.

• Gage : N-82016-01 (0-120 PSI perpendicular)

N-82016-02 (0-120 PSI parallel)

Spare parts :
