HOW TO ORDER 263 Consult “Precautions” page 327 before use, installation or service of MAC Valves.. Pressure regulators OPERATIONAL BENEFITS Series PR37A PR42B PR46A PR47A PR48B PRA02A PR92C PR93A PRA1A PRA01A PRP1A PRA2…
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
262
Consult “Precautions” page 327 before use, installation or service of MAC Valves..

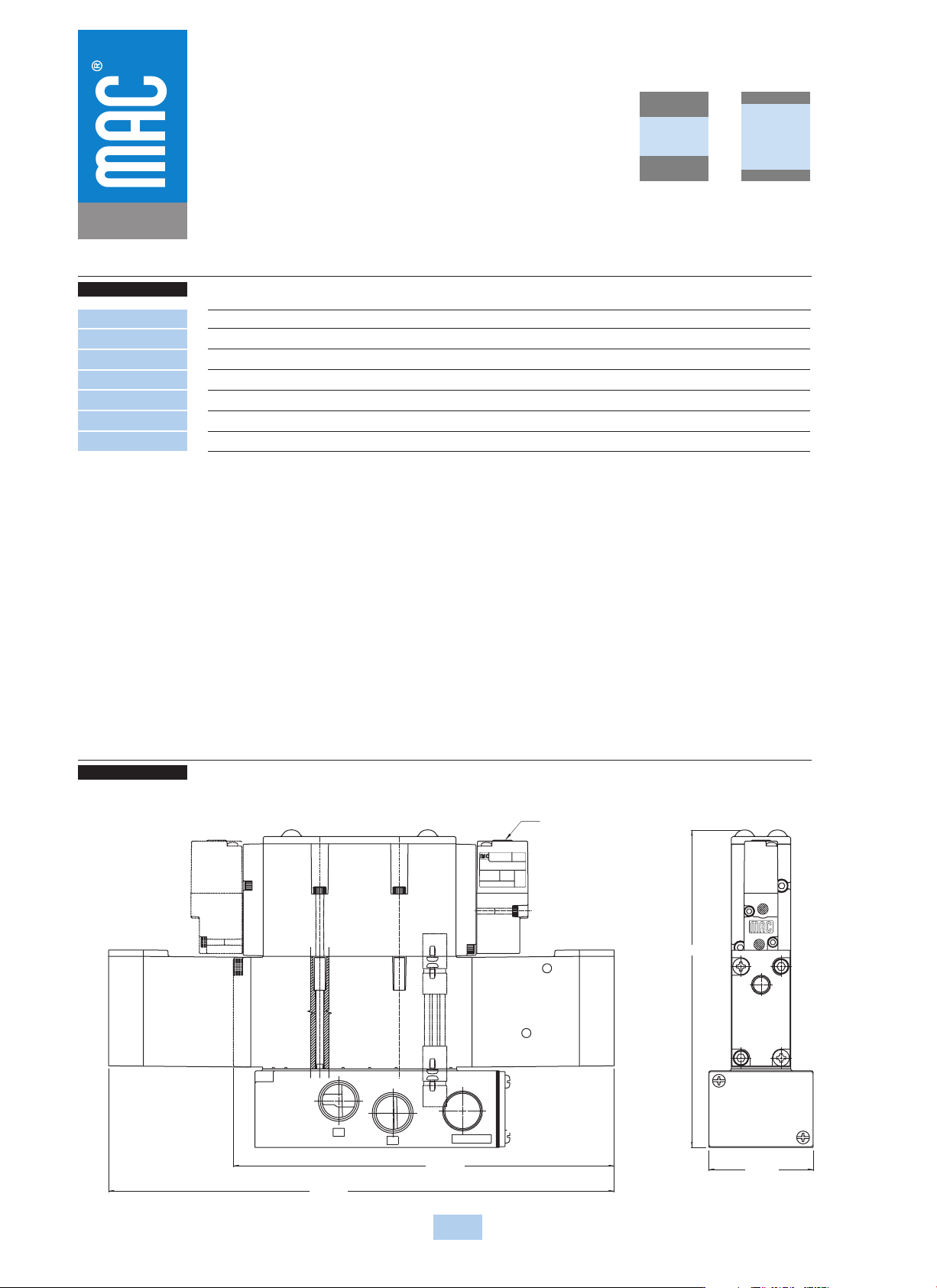

Series PR92C
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
0.8 C
v
EX
IN
VAC TO 120 PSI
WATTS
ELECTRICAL
MODEL
MODIF.
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI. USA
171.5
W/ DOUBLE REGULATOR
APPROX.
241.0
EP
GAGE
PILOT
APPROX.
47.5
APPROX.
135.0
MANUAL
OPERATOR
• R-92003 : end plate kit • R-92003-01: by-pass end plate kit
• Gage kit 0 – 160 PSI : N-92006-01 • Gage kit 0 – 100 PSI : N-92006-02
• Gage kit 0 – 60 PSI : N-92006-03
• Pressure range: PR92C-xxxA (A 0 to 120 PSI)
B 0 to 80 PSI
C 0 to 30 PSI
D 0 to 120 PSI “A” end, 0 to 80 PSI “B” end
E 0 to 120 PSI “B” end, 0 to 80 PSI “A” end
F 0 to 120 PSI “A” end, 0 to 30 PSI “B” end
G 0 to 120 PSI “B” end, 0 to 30 PSI “A” end
H 0 to 80 PSI “A” end, 0 to 30 PSI “B” end
J 0 to 80 PSI “B” end, 0 to 30 PSI “A” end
Spare parts :
Options :
HOW TO ORDER
263
Consult “Precautions” page 327 before use, installation or service of MAC Valves..
Pressure regulators
OPERATIONAL BENEFITS
Series
PR37A
PR42B
PR46A
PR47A
PR48B
PRA02A
PR92C
PR93A
PRA1A
PRA01A
PRP1A
PRA2D
PRP2B
PRA3C
PRP3B

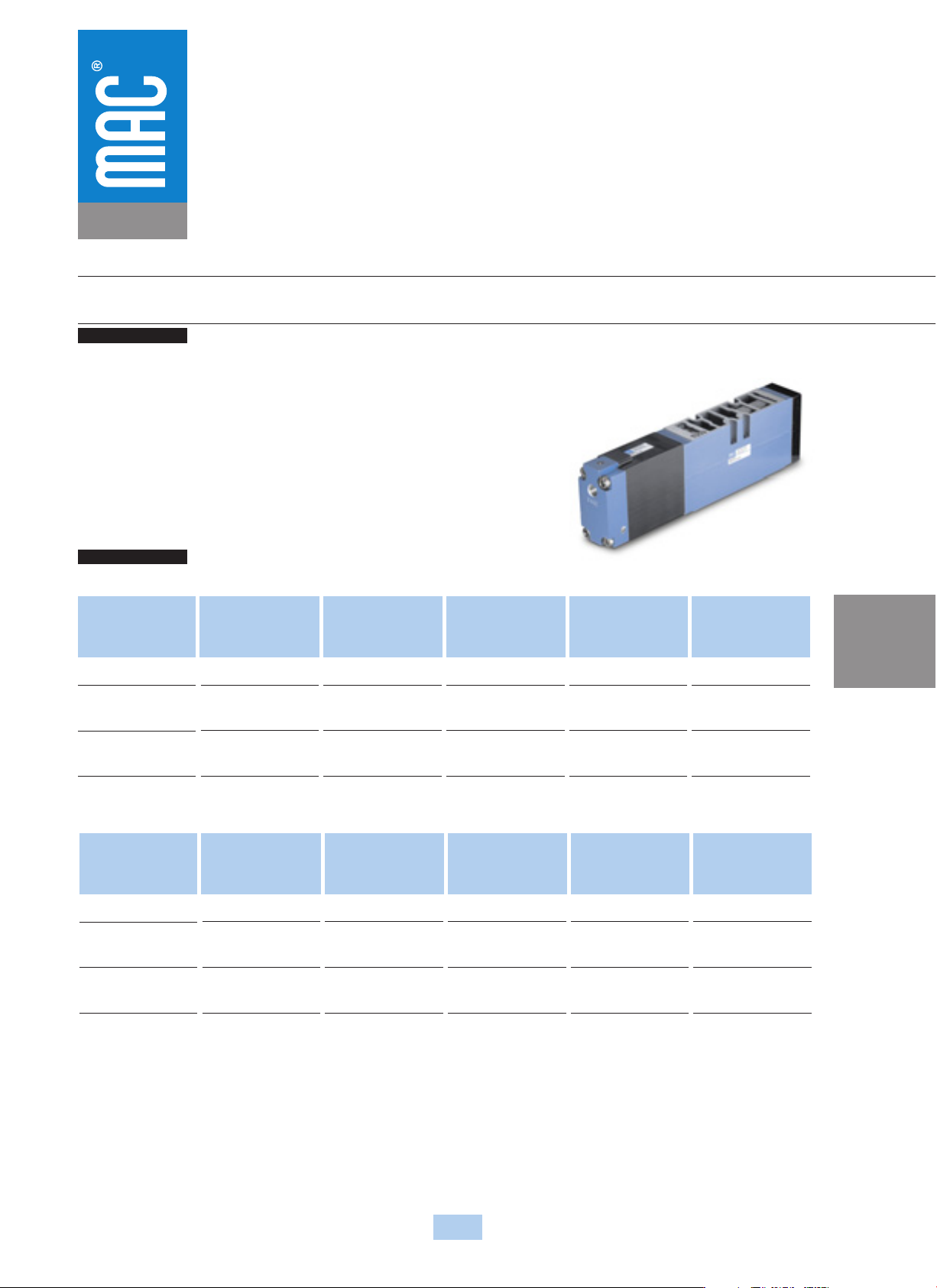

Series PR93A
Sandwich pressure regulator with air pilot adjust
1. Easy mounting: saves on installation costs in
comparison with inline regulators.
2. Compact all-included units.
3. Large orifice provides high flow.
4. Various functions available.
5. Simple, reliable and solid design.
Gage
Gage port only (plugged)
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR93A-DAAA
PR93A-DABA
PR93A-DACA
Regulator B end
Single pressure
PR93A-DBAA
PR93A-DBBA
PR93A-DBCA
Regulator A
*
end with
by-pass end plate B end
PR93A-DCAA
PR93A-DCBA
PR93A-DCCA
Regulator B
*
end with
by-pass end plate A end
PR93A-DDAA
PR93A-DDBA
PR93A-DDCA
Regulator
*
both ends
PR93A-DEAA
PR93A-DEBA
PR93A-DECA
REGULATORS FOR "PLUG-IN" VALVES
Note: Above models may be used with either single or double solenoid valves.
* For use with dual pressure valves.
Gage
Gage port only (plugged)
Gage with face
perpendicular
to manual operator
Gage with face
parallel to
manual operator
Regulator A end
Single pressure
PR93A-EAAA
PR93A-EABA
PR93A-EACA
Regulator B end
Single pressure
PR93A-EBAA
PR93A-EBBA
PR93A-EBCA
Regulator A
*
end with
by-pass end plate B end
PR93A-ECAA
PR93A-ECBA
PR93A-ECCA
Regulator B
*
end with
by-pass end plate A end
PR93A-EDAA
PR93A-EDBA
PR93A-EDCA
Regulator
*
both ends
PR93A-EEAA
PR93A-EEBA
PR93A-EECA
REGULATORS FOR "NON PLUG-IN" VALVES
18
18
10 0
%
10 0
%
10 0
%
10 0
%
MONTHS
WARRANTY
OF
PRODUCTION
TESTED
DIMENSIONS
TECHNICAL DATA
Dimensions shown are metric (mm)
264
Consult “Precautions” page 327 before use, installation or service of MAC Valves..

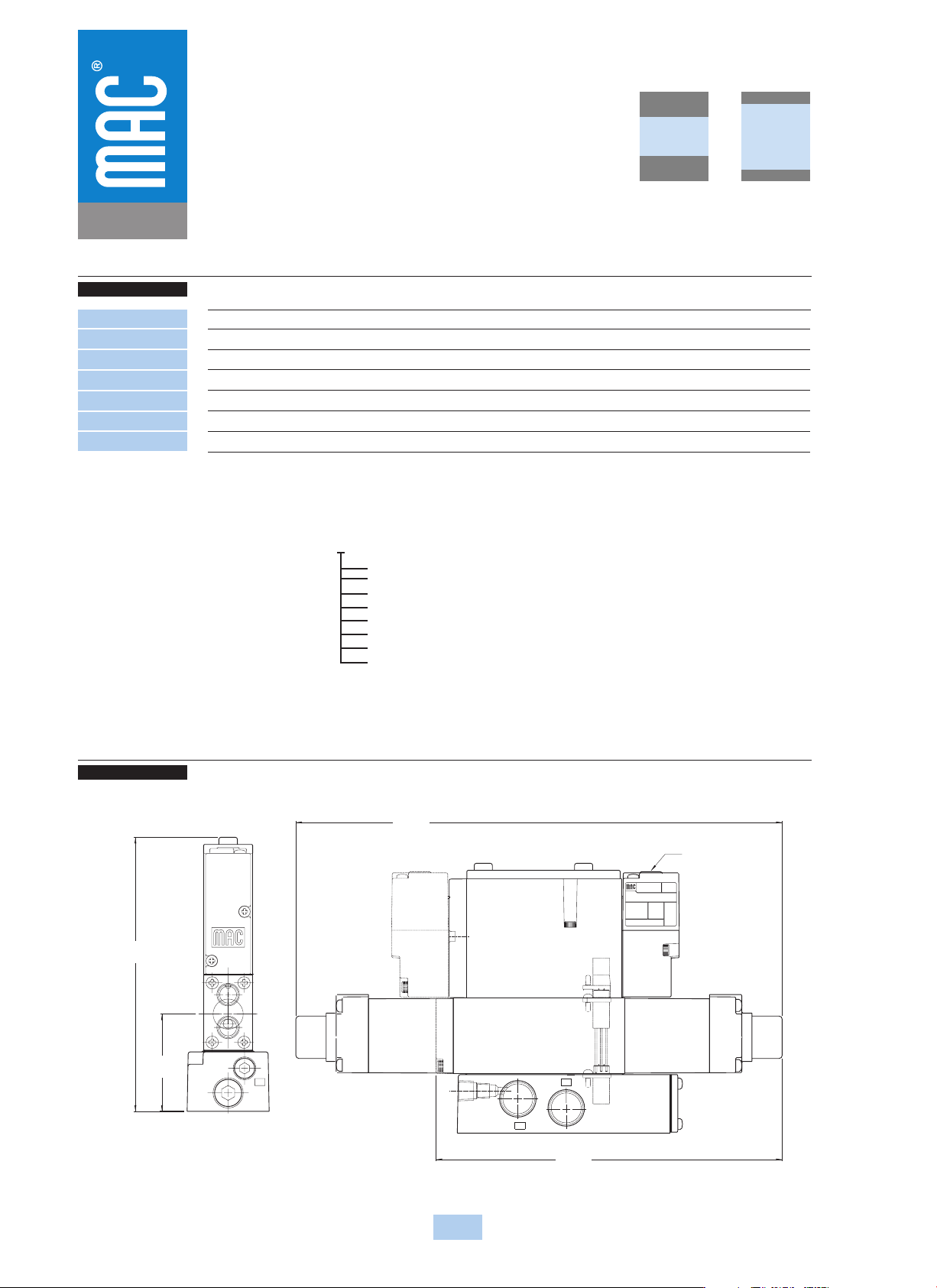

Series PR93A
Fluid :
Pressure range :
Regulating range :
Lubrication :
Filtration :
Temperature range :
Flow :
Compressed air, inert gases
0 to 120 PSI
0 to 120 PSI
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
40 µ
0°F to 120°F (-18°C to +50°C)
2.4 C
v
GAGE
276.50
208.25
VAC TO 120 PSI
WATTS
ELECTRICAL
MODEL
AUCKLAND,N.Z.
LIEGE,BELGIUM
WIXOM,MI.USA
MODIF.
CONDUIT
EX
IN
57.00
APPROX.
173.60
DOUBLE REGULATOR
APPROX. WITH
SINGLE REGULATOR
APPROX. WITH
MANUAL
OPERATOR
• Regulator end plate kit: R-93004 • Regulator by-pass end plate kit: R-93004-01
• Gage kit: N-92006-01 (0 to 160 PSI)
• Pressure regulator (less sandwich block): PR93A-F0AA
Spare parts :
