Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the battery and resetting the servo motor origins

14. Click [Axis State].

15. Check that the “Actual Position” servo count for the axis on which you performed MT

reset is within the tolerance shown in the table. If it is not within tolerance, perform MT

Reset again.

Table: Servo count after MT reset

Axis Axis No. Check position Servo count after MT reset

(± tolerance)

Z Axis 2 Arm against bottom of cam follower

-19750

R Axis 3 Triangle marks

+30000 (±3000)

Q Axis 4 Anywhere is okay.

―

Cam Follower

Arm

FK-9F50-08-0E

9-8

FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the battery and resetting the servo motor origins

16. Right-click the IP address and select [Disconnect].

17. Select [File] - [Exit] to close the window.

FK-9F50-08-0E

9-9

FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the battery and resetting the servo motor origins

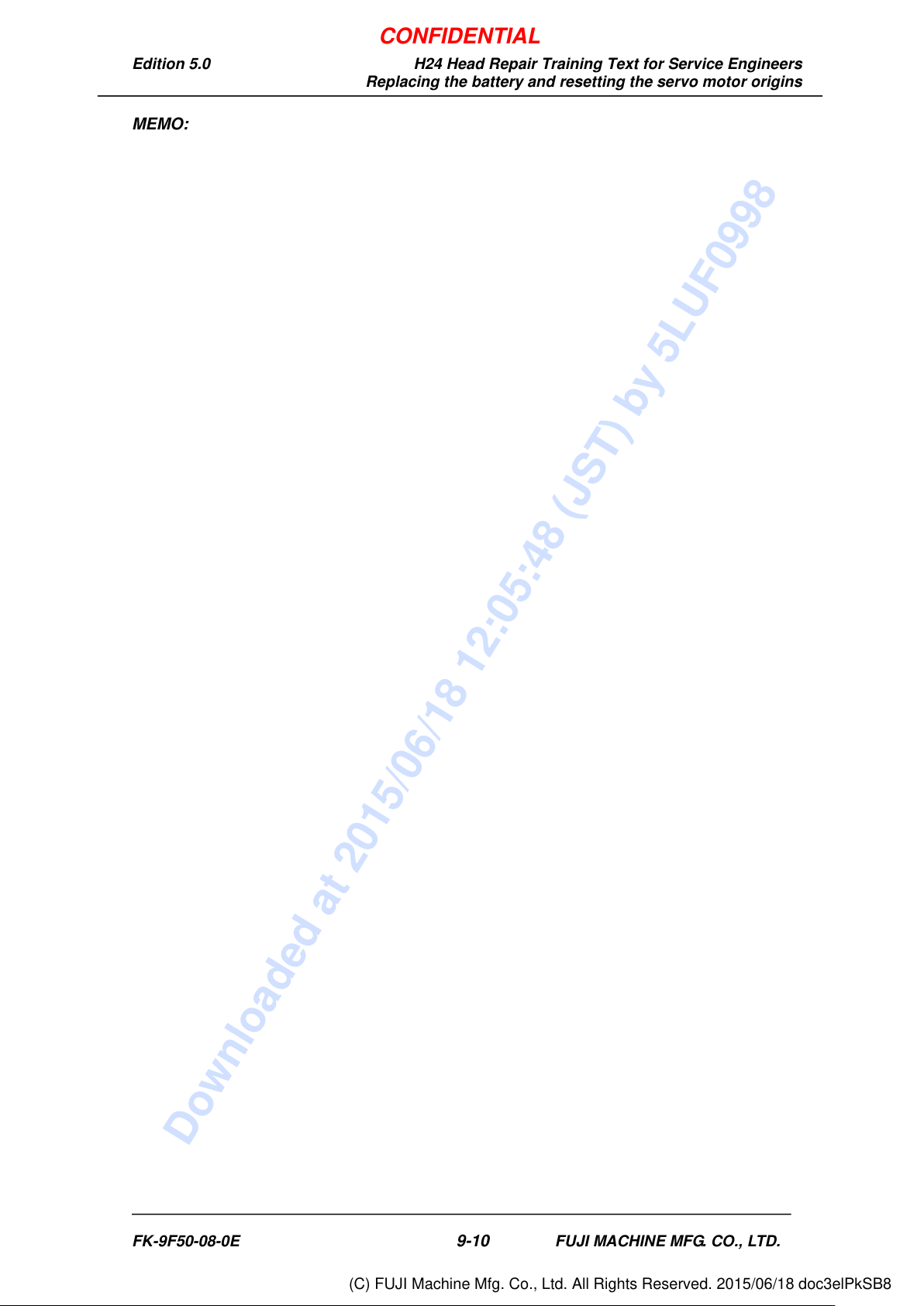

MEMO:

FK-9F50-08-0E

9-10
