Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

10.6 Q-axis Proper Data Measurement

1. Select [OK] in the following screen to perform MT reset. The head will move so that

the syringe A faces the front side automatically. Then turn the servo ON.

2. Initial screen: If [ALL] is pressed in the screen below [Only A] will display. If the Q0

setting is made for holder A, the R-axis servo counter of the remaining holders (B~X

holders) is automatically calculated. (If performing the auto measurement, select

[Only A]. Normally select [ALL] to measure all holders.)

3. Bring syringe A to the front (the R-axis position where the B and L syringes are

aligned).

4. Attach the following jig to syringe A.

Z0 proper data

measurement jig

2AGKHJ015101

Attach this jig so that

the pins align

vertically

FK-9F50-08-0E 10-11 FUJI MACHINE MFG. CO., LTD

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

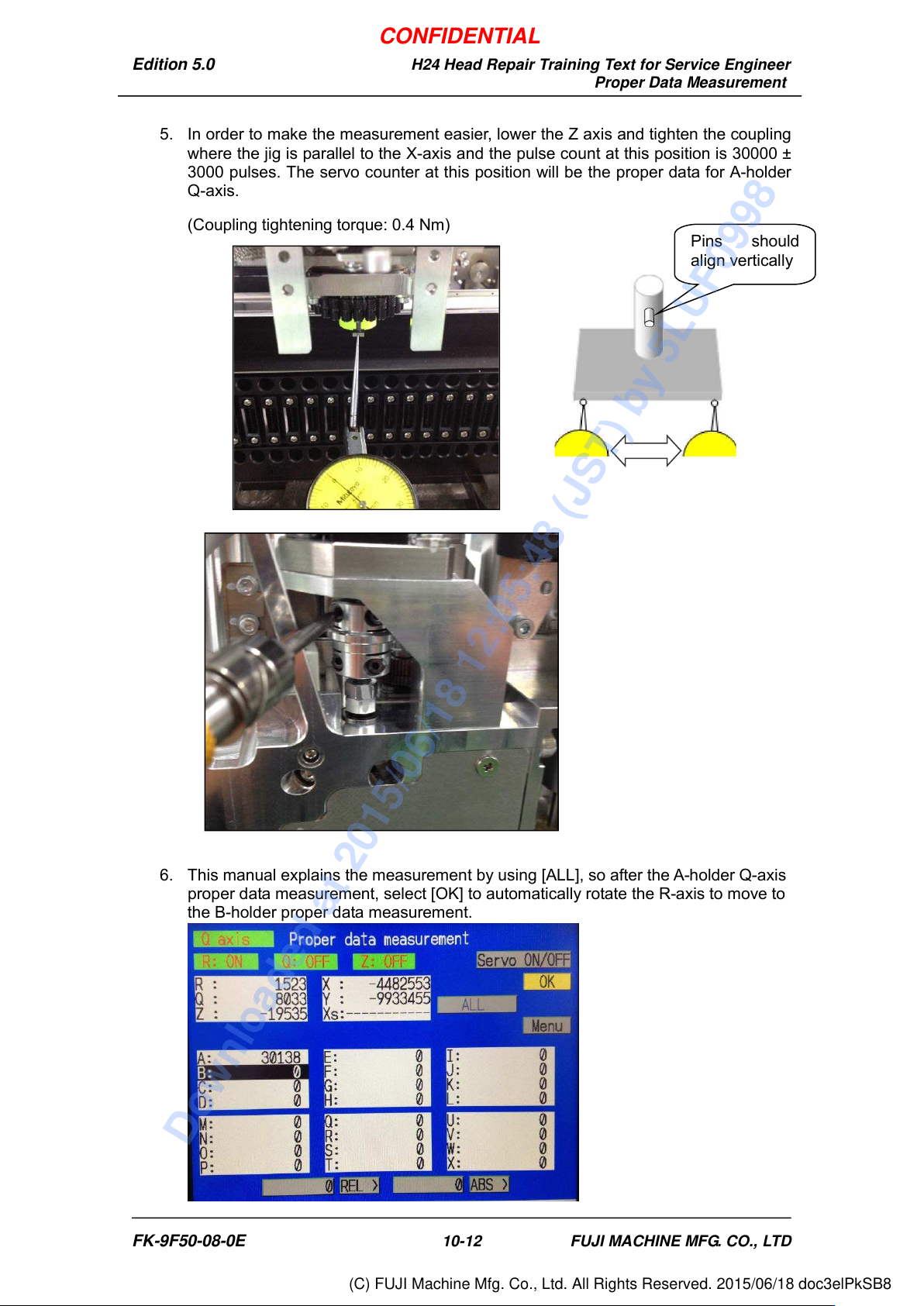

5. In order to make the measurement easier, lower the Z axis and tighten the coupling

where the jig is parallel to the X-axis and the pulse count at this position is 30000 ±

3000 pulses. The servo counter at this position will be the proper data for A-holder

Q-axis.

(Coupling tightening torque: 0.4 Nm)

6. This manual explains the measurement by using [ALL], so after the A-holder Q-axis

proper data measurement, select [OK] to automatically rotate the R-axis to move to

the B-holder proper data measurement.

Pins should

align vertically

FK-9F50-08-0E 10-12 FUJI MACHINE MFG. CO., LTD

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

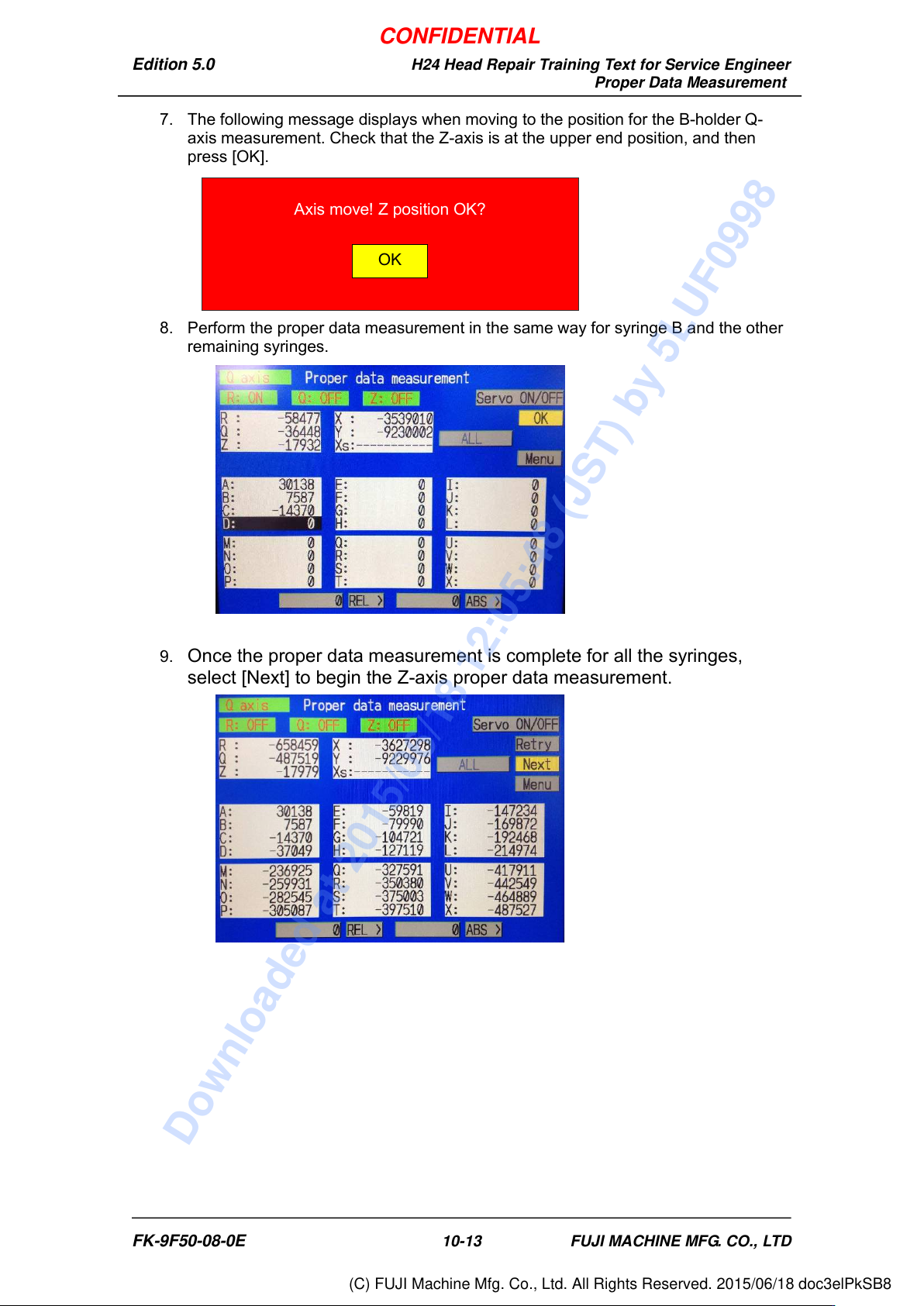

7. The following message displays when moving to the position for the B-holder Q-

axis measurement. Check that the Z-axis is at the upper end position, and then

press [OK].

8. Perform the proper data measurement in the same way for syringe B and the other

remaining syringes.

Once the proper data measurement is complete for all the syringes,

select [Next] to begin the Z-axis proper data measurement.

Axis move! Z position OK?
