Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

4. Set a dial gauge on the bottom of syringe A and lower the Z-axis by hand.

5. Press the [OK] button at the position where the dial gauge just starts to move.

The upper limit position is registered -250 pulses from this position. (For example, if

the measurement position is -19750 pulses, the value registered is -20,000 pulses).

6. The following message displays after selecting [OK].

7. Confirm that the Z-axis lever is at the position shown in the following diagram, and

then press the [OK] button.

Adjust the Z-axis lever

position to balance the

gap

Syring

Select “OK”

Z0 Jig

2AGKHJ01510１

Upper limit position measurement

FK-9F50-08-0E 10-15 FUJI MACHINE MFG. CO., LTD

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

8. The R-axis automatically rotates to holder B.

9. Measure the Z-axis upper position for holders B to X in the same way as for holder

10. Press [OK] in X-holder for the last measurement to display the highest syringe in red.

11. The following display appears and then press [OK] to move the highest syringe to

the front of the head.

12. After the syringe highlighted in red has moved to the front of the head, the screen

changes to the upper end (mechanical end) position measurement screen. (the servo

for Z axis turns OFF.) Manually raise the Z-axis to the upper mechanical end and then

select [OK] to save the current servo count as proper data.

Axis move! Z position OK?

The position where the

arm touches the bottom

of the lever is the upper

mechanical end.

Z-axis upper end proper data

mechanical end measurement

FK-9F50-08-0E 10-16 FUJI MACHINE MFG. CO., LTD

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

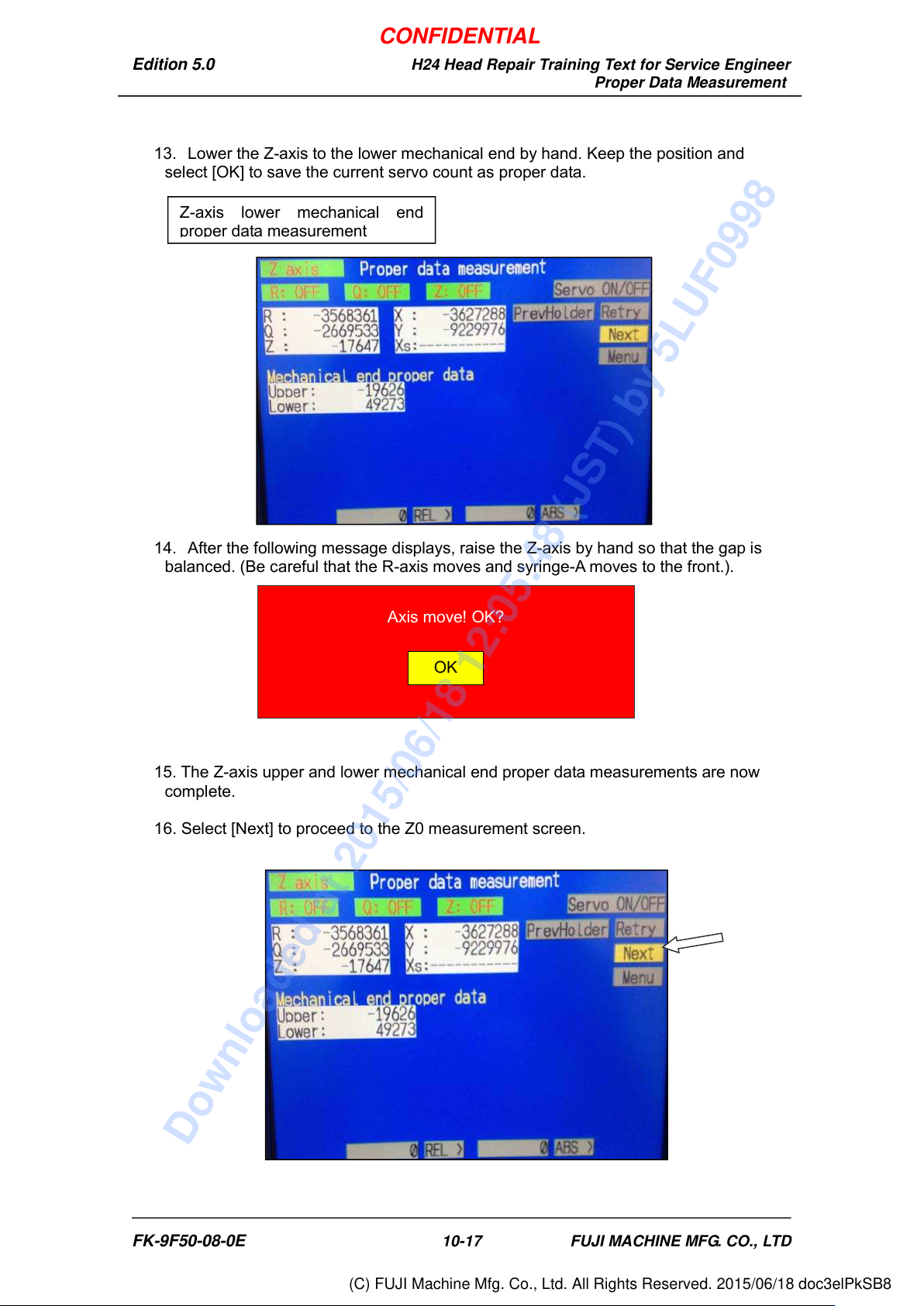

Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

13. Lower the Z-axis to the lower mechanical end by hand. Keep the position and

select [OK] to save the current servo count as proper data.

14. After the following message displays, raise the Z-axis by hand so that the gap is

balanced. (Be careful that the R-axis moves and syringe-A moves to the front.).

15. The Z-axis upper and lower mechanical end proper data measurements are now

complete.

16. Select [Next] to proceed to the Z0 measurement screen.

Axis move! OK?

Z-axis lower mechanical end

proper data measurement

FK-9F50-08-0E 10-17 FUJI MACHINE MFG. CO., LTD
