Edition 5.0 H24 Head Repair Training Text for Service Engineer
Proper Data Measurement
Chapter 10 - Proper Data Measurement
Required jigs (you will need these in addition to your standard tools)
Name
Part Number
QTY
R axis proper data
measurement jig
2AGKNJ001600
2
Z0
Q0 proper data
measurement jig
2AGKHJ015101
1
Head Z0 jig
AA1WA04
1
FK-9F50-08-0E 10-1 FUJI MACHINE MFG. CO., LTD
CONFIDENTIAL
Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998
(C) FUJI Machine Mfg. Co., Ltd. All Rights Reserved. 2015/06/18 doc3elPkSB8
Edition 5.0 H24 Head Repair Training Text for Service Engineer
Proper Data Measurement

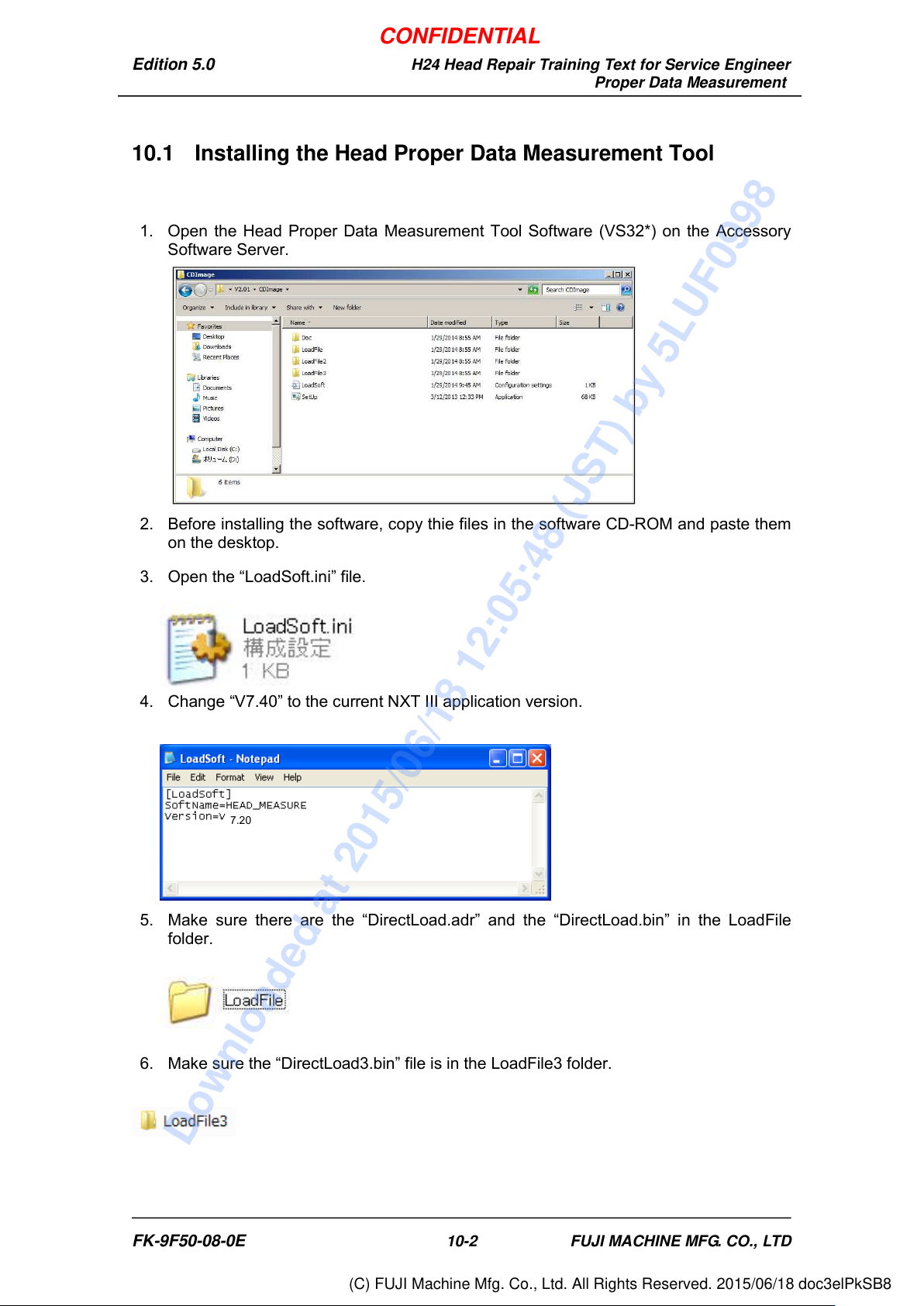

10.1 Installing the Head Proper Data Measurement Tool
1. Open the Head Proper Data Measurement Tool Software (VS32*) on the Accessory
Software Server.
2. Before installing the software, copy thie files in the software CD-ROM and paste them
on the desktop.
3. Open the LoadSoft.ini file.
4. Change V7.40” to the current NXT III application version.
5. Make sure there are the DirectLoad.adr and the DirectLoad.bin in the LoadFile
folder.
6. Make sure the DirectLoad3.bin” file is in the LoadFile3 folder.
7.20
