Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

3. Block the right-hand glass and check there is no effect on the left-hand area. Block the

left-hand glass and check there is no effect on the right-hand area.

4. Press the upper and lower buttons simultaneously to set the LCD contrast back to

normal.

5. Rotate the R-axis through one full rotation and confirm that there is no position where

the variation in the grayscale values (GR and GL) is extreme. If the grayscale value is

too big, check the fluorescent status. If it is dirty, clean or replace it as necessary.

6. Rotate the R-axis by hand to find the positions where the grayscale values (GR and

GL) are maximized and minimized. Check that the minimum and maximum grayscale

values are within the tolerance of 120~160 (target: 120). Also check that the current

value is 24mA or less.

7. If the grayscale values are not within the target values, adjust them as shown below.

8. Press the lower button to display “CURRENT UP” or “CURRENT DOWN”. When

raising the value, display “CURRENT UP” and press the lower button to adjust the

value. When lowering the value, display “CURRENT DOWN” and press the lower

button to adjust the value.

FK-9F50-08-0E S2-10 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

9. Once the value is within the tolerance, press the upper button to display “CURRENT

BACK”.

10. Press the lower button to return to “ADJUSTMENT 2 CURRENT”.

11. Press the upper button to display “ADJUSTMENT 2 SET” and then press the lower

button to save the settings.

Tolerance

Target

GR, GL (Gray value)

120~160

120

CURRENT

24mA or less

Same as tolerance

FK-9F50-08-0E S2-11 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

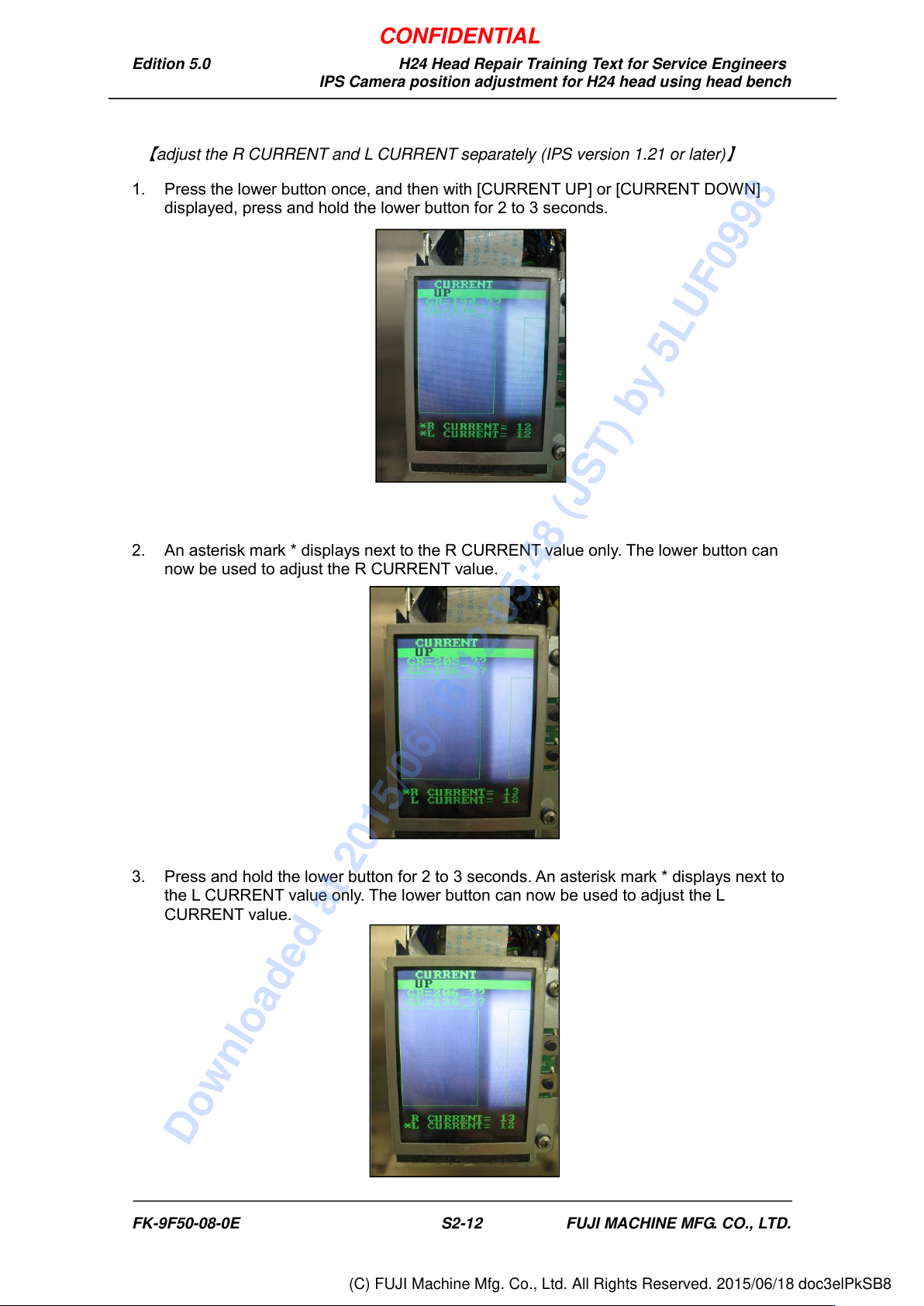

Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

【

adjust the R CURRENT and L CURRENT separately (IPS version 1.21 or later)

】

1. Press the lower button once, and then with [CURRENT UP] or [CURRENT DOWN]

displayed, press and hold the lower button for 2 to 3 seconds.

2. An asterisk mark * displays next to the R CURRENT value only. The lower button can

now be used to adjust the R CURRENT value.

3. Press and hold the lower button for 2 to 3 seconds. An asterisk mark * displays next to

the L CURRENT value only. The lower button can now be used to adjust the L

CURRENT value.
