Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

9. Once the value is within the tolerance, press the upper button to display “CURRENT

BACK”.

10. Press the lower button to return to “ADJUSTMENT 2 CURRENT”.

11. Press the upper button to display “ADJUSTMENT 2 SET” and then press the lower

button to save the settings.

Tolerance

Target

GR, GL (Gray value)

120~160

120

CURRENT

24mA or less

Same as tolerance

FK-9F50-08-0E S2-11 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

【

adjust the R CURRENT and L CURRENT separately (IPS version 1.21 or later)

】

1. Press the lower button once, and then with [CURRENT UP] or [CURRENT DOWN]

displayed, press and hold the lower button for 2 to 3 seconds.

2. An asterisk mark * displays next to the R CURRENT value only. The lower button can

now be used to adjust the R CURRENT value.

3. Press and hold the lower button for 2 to 3 seconds. An asterisk mark * displays next to

the L CURRENT value only. The lower button can now be used to adjust the L

CURRENT value.

FK-9F50-08-0E S2-12 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

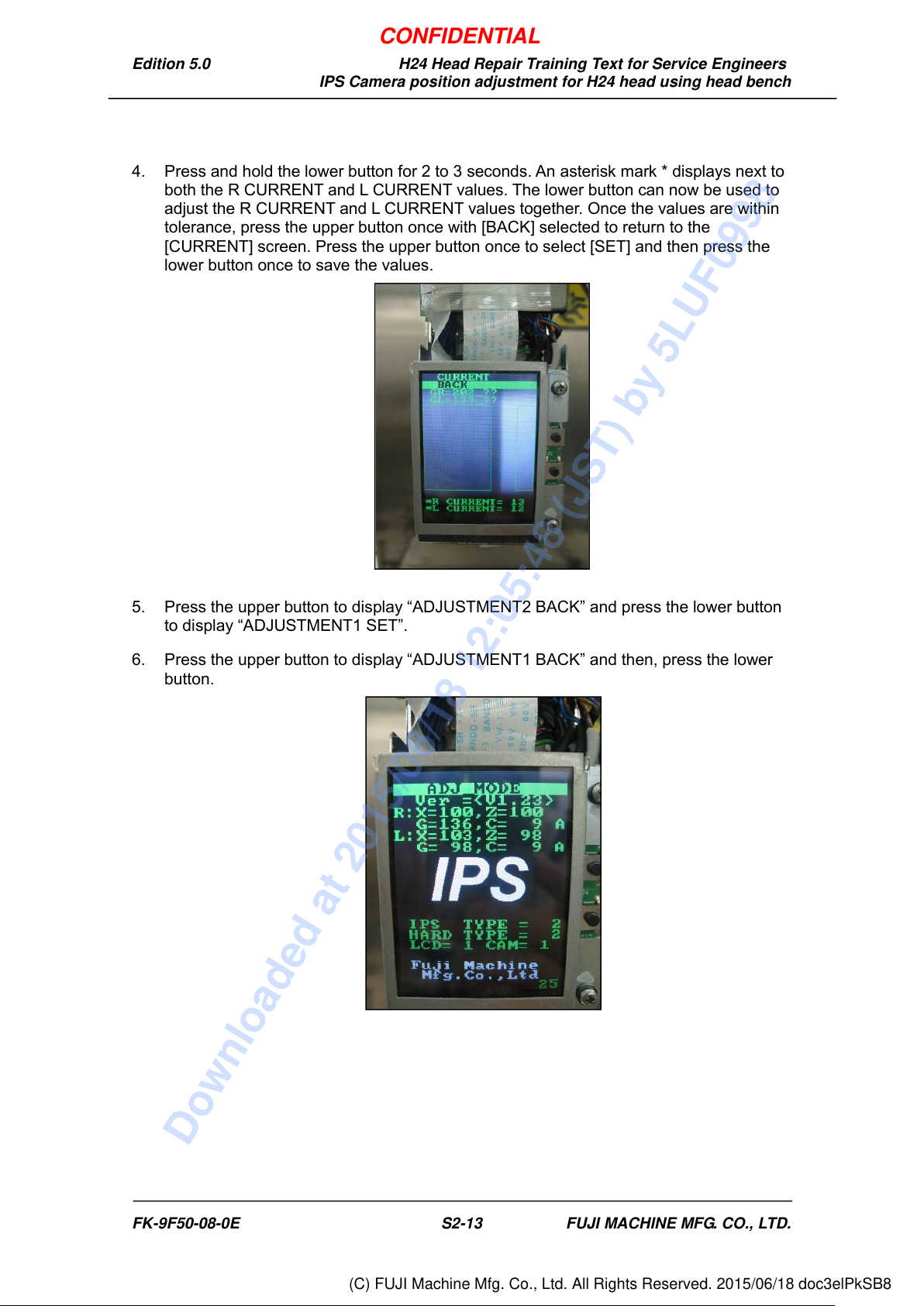

4. Press and hold the lower button for 2 to 3 seconds. An asterisk mark * displays next to

both the R CURRENT and L CURRENT values. The lower button can now be used to

adjust the R CURRENT and L CURRENT values together. Once the values are within

tolerance, press the upper button once with [BACK] selected to return to the

[CURRENT] screen. Press the upper button once to select [SET] and then press the

lower button once to save the values.

5. Press the upper button to display “ADJUSTMENT2 BACK” and press the lower button

to display “ADJUSTMENT1 SET”.

6. Press the upper button to display “ADJUSTMENT1 BACK” and then, press the lower

button.

FK-9F50-08-0E S2-13 FUJI MACHINE MFG. CO., LTD.
