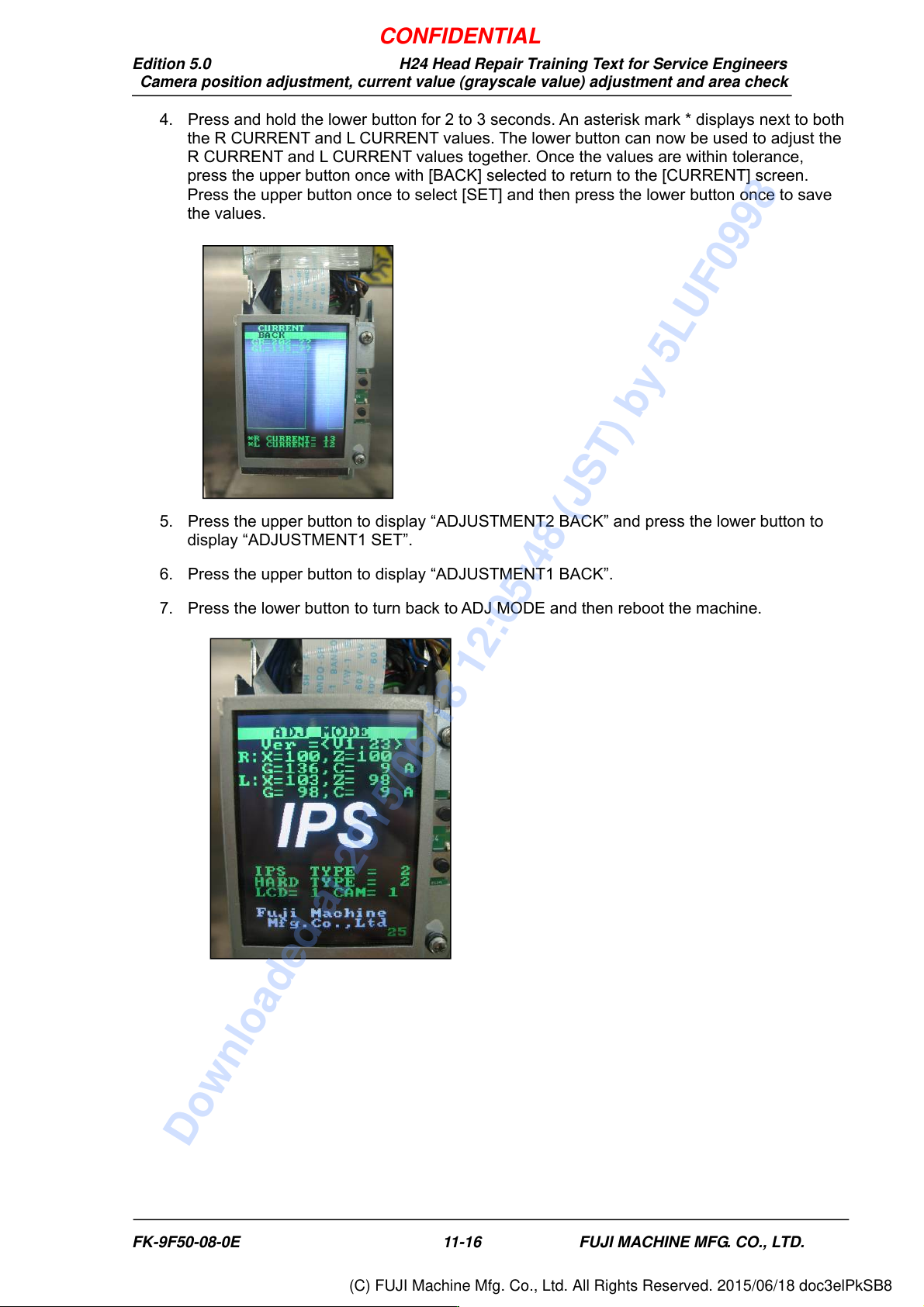

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-14 FUJI MACHINE MFG. CO., LTD.

9. Once the value is within the tolerance, press the upper button to display “CURRENT BACK”.

10. Press the lower button to return to “ADJUSTMENT 2 CURRENT”.

11. Press the upper button to display “ADJUSTMENT 2 SET” and then press the lower button to

save the settings.

Tolerance Target

GR, GL (Gray value) 120~160 120

CURRENT 24mA or less Same as tolerance

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-15 FUJI MACHINE MFG. CO., LTD.

【

adjust the R CURRENT and L CURRENT separately (IPS version 1.21 or later)

】

1. Press the lower button once, and then with [CURRENT UP] or [CURRENT DOWN]

displayed, press and hold the lower button for 2 to 3 seconds.

2. An asterisk mark * displays next to the R CURRENT value only. The lower button can now

be used to adjust the R CURRENT value.

3. Press and hold the lower button for 2 to 3 seconds. An asterisk mark * displays next to the

L CURRENT value only. The lower button can now be used to adjust the L CURRENT

value.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-16 FUJI MACHINE MFG. CO., LTD.

4. Press and hold the lower button for 2 to 3 seconds. An asterisk mark * displays next to both

the R CURRENT and L CURRENT values. The lower button can now be used to adjust the

R CURRENT and L CURRENT values together. Once the values are within tolerance,

press the upper button once with [BACK] selected to return to the [CURRENT] screen.

Press the upper button once to select [SET] and then press the lower button once to save

the values.

5. Press the upper button to display “ADJUSTMENT2 BACK” and press the lower button to

display “ADJUSTMENT1 SET”.

6. Press the upper button to display “ADJUSTMENT1 BACK”.

7. Press the lower button to turn back to ADJ MODE and then reboot the machine.
