Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

13. Click [Write].

14. Click [OK] to save the proper data in the head board.

15. Click [Return to Main Menu] to return to the default screen.

16. Remove the R-axis calibration jig （2AGKNJ001600）.

FK-9F50-08-0E S1-9 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

1.2

Q-axis Proper Data Measurement

1. Attach the H24 head on the head bench, and then turn the power ON.

2. Start the “Head Check Tool”, and then click [Calibration Data Measurement].

3. Click [Measure Q-axis].

OFF

Emergency Stop

button

Power

FK-9F50-08-0E S1-10 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

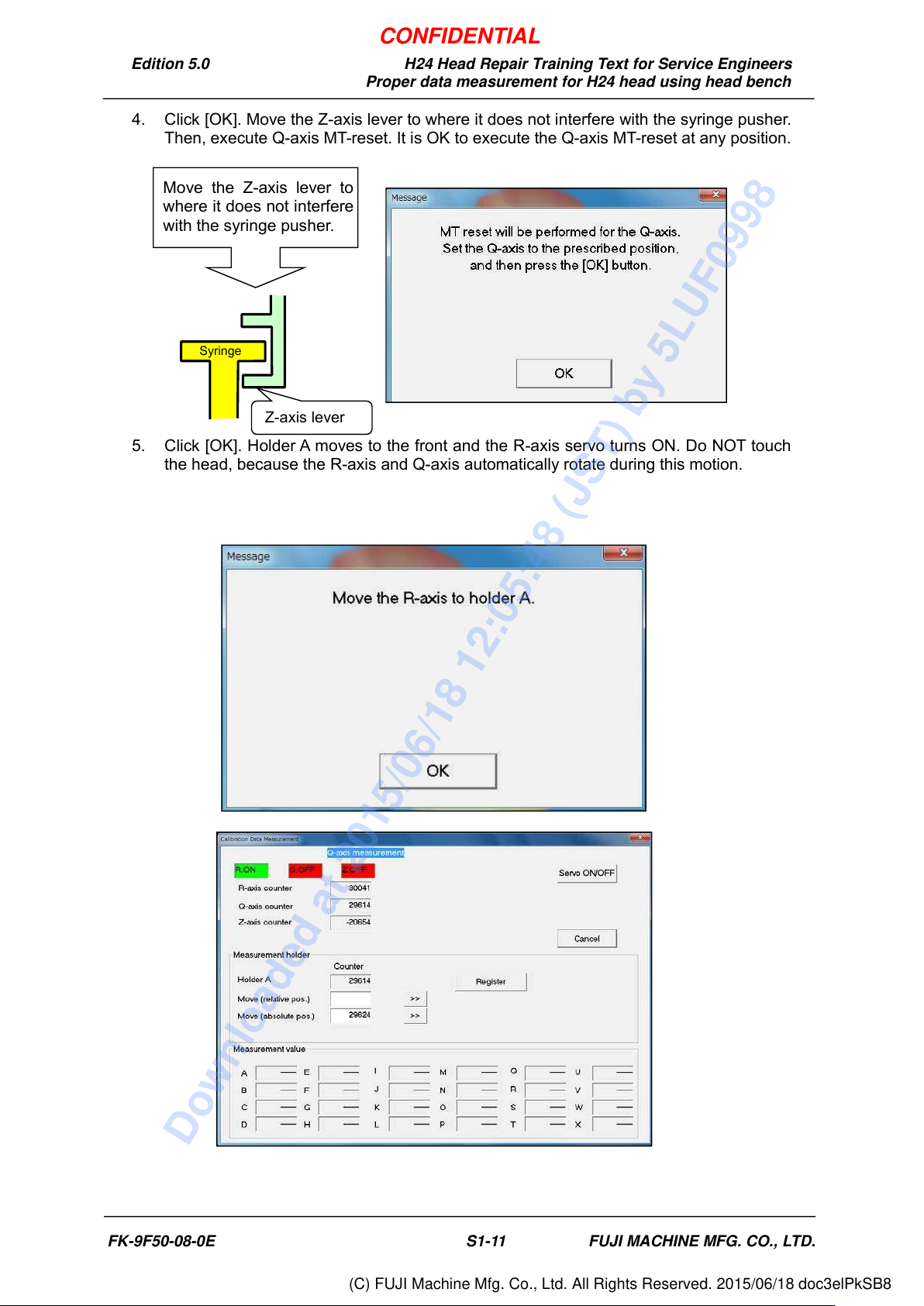

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

4. Click [OK]. Move the Z-axis lever to where it does not interfere with the syringe pusher.

Then, execute Q-axis MT-reset. It is OK to execute the Q-axis MT-reset at any position.

5. Click [OK]. Holder A moves to the front and the R-axis servo turns ON. Do NOT touch

the head, because the R-axis and Q-axis automatically rotate during this motion.

Move the Z-axis lever to

where it does not interfere

with the syringe pusher.

Z-axis lever

Syringe
