S t a nda r d bol t t i ght e ni ng t or que ( uni t s : N . m ) A l l e n bol t P l ast i c p ar t s ( uni t s: N .m ) ( uni t s: N .m ) S iz e A l l e n b o l t S iz e P l ast i c p a r t s ( ex: sen so r ) S t e e l /…
Bolt and nut names
Name
Drawing
Allen bolt
button Allen bolt
set screw
flat washer
nut
hexagonal bolt
hexagonal screw
spring washer
conical washer
Phillips screw
CONFIDENTIAL
Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998
(C) FUJI Machine Mfg. Co., Ltd. All Rights Reserved. 2015/06/18 doc3elPkSB8
Standard bolt tightening torque (units: N.m)
Allen bolt
Plastic parts
(units: N.m)
(units: N.m)
Size
Allen bolt
Size
Plastic parts
(ex: sensor)
Steel / iron
Aluminum / zinc
M1.0
-
(0.03)*
-
(0.03)*
Ｍ2
0.106
M1.4
-
(0.08)
-
(0.08)
M2.5 0.22
M1.6 0.22 (0.12) 0.17 (0.12)
M3 0.38
M2.0 0.44 (0.24) 0.35 (0.24)
M4 0.90
M2.5 0.88 (0.50) 0.78 (0.50)
M5 1.80
M3 1.96 (0.88) 1.47 (0.88)
M4 3.92 (1.96) 3.23 (1.96)
M5 7.84 (3.92) 5.88 (3.92)
M6 12.74 (7.84) 9.31 (7.84)
M8 32.34 (18.62) 18.62 (18.62)
M10 64.68 (37.24) 37.24 (37.24)
M12 117.6
-
64.68
-
M16 303.8
-
88.2
-
M20 588
-
117.6
-
*() for stainless steel bolt
Weld stud bolt
(units: N.m)
Size
Plate thickness
t=1.2
t=1.6
t=2.3
Ｍ3
1.00
M4 1.50 2.00 2.50
M5 2.00 3.00
Stud bolt type: Mild steel, straight
Plate material: SPC*
*SPC: Cold-reduced carbon steel sheet
(JIS code)
Select the torque according to the above
plate thickness
Caution:
Apply with Threebond TB-1401B
CONFIDENTIAL
Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998
(C) FUJI Machine Mfg. Co., Ltd. All Rights Reserved. 2015/06/18 doc3elPkSB8

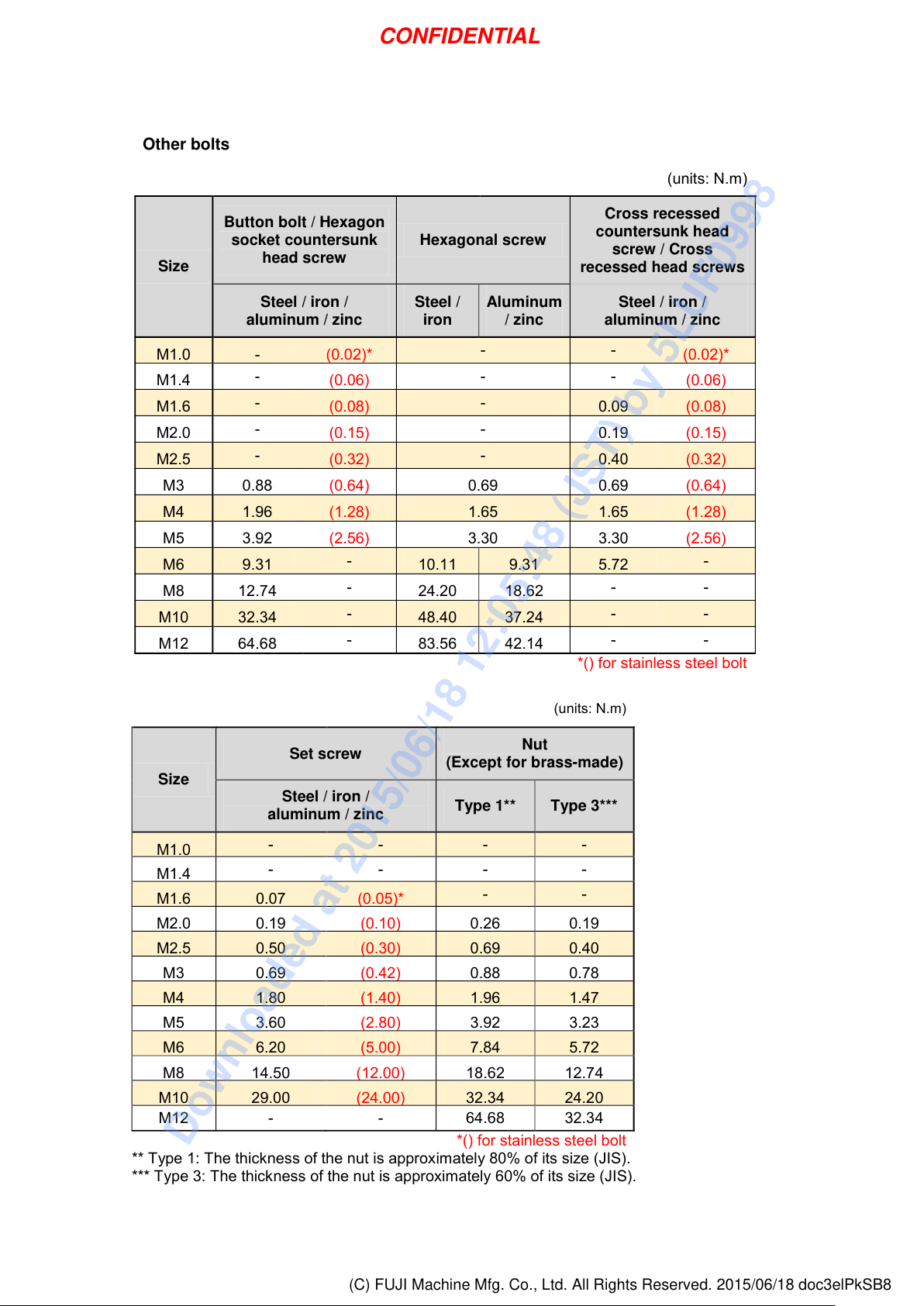

Other bolts
(units: N.m)
Size
Button bolt / Hexagon
socket countersunk
head screw
Hexagonal screw
Cross recessed
countersunk head
screw / Cross
recessed head screws
Steel / iron /
aluminum / zinc
Steel /
iron
Aluminum
/ zinc
Steel / iron /
aluminum / zinc
M1.0
-
(0.02)*
- -
(0.02)*
M1.4
-
(0.06)
- -
(0.06)
M1.6
-
(0.08)
-
0.09
(0.08)
M2.0
-
(0.15)
-
0.19
(0.15)
M2.5
-
(0.32)
-
0.40
(0.32)
M3
0.88
(0.64)
0.69
0.69
(0.64)
M4
1.96
(1.28)
1.65
1.65
(1.28)
M5
3.92
(2.56)
3.30
3.30
(2.56)
M6
9.31
-
10.11
9.31
5.72
-
M8
12.74
-
24.20
18.62
- -
M10
32.34
-
48.40
37.24
- -
M12
64.68
-
83.56
42.14
- -
*() for stainless steel bolt
(units: N.m)
Size
Set screw
Nut
(Except for brass-made)
Steel / iron /
aluminum / zinc
Type 1** Type 3***
M1.0
- - - -
M1.4
- - - -
M1.6
0.07
(0.05)*
- -
M2.0
0.19
(0.10)
0.26
0.19
M2.5
0.50
(0.30)
0.69
0.40
M3
0.69
(0.42)
0.88
0.78
M4
1.80
(1.40)
1.96
1.47
M5
3.60
(2.80)
3.92
3.23
M6
6.20
(5.00)
7.84
5.72
M8
14.50
(12.00)
18.62
12.74
M10
29.00
(24.00)
32.34
24.20
M12 - - 64.68 32.34
*() for stainless steel bolt
** Type 1: The thickness of the nut is approximately 80% of its size (JIS).
*** Type 3: The thickness of the nut is approximately 60% of its size (JIS).
