Bolt and nut names

Name

Drawing

Allen bolt

button Allen bolt

set screw

flat washer

nut

hexagonal bolt

hexagonal screw

spring washer

conical washer

Phillips screw

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

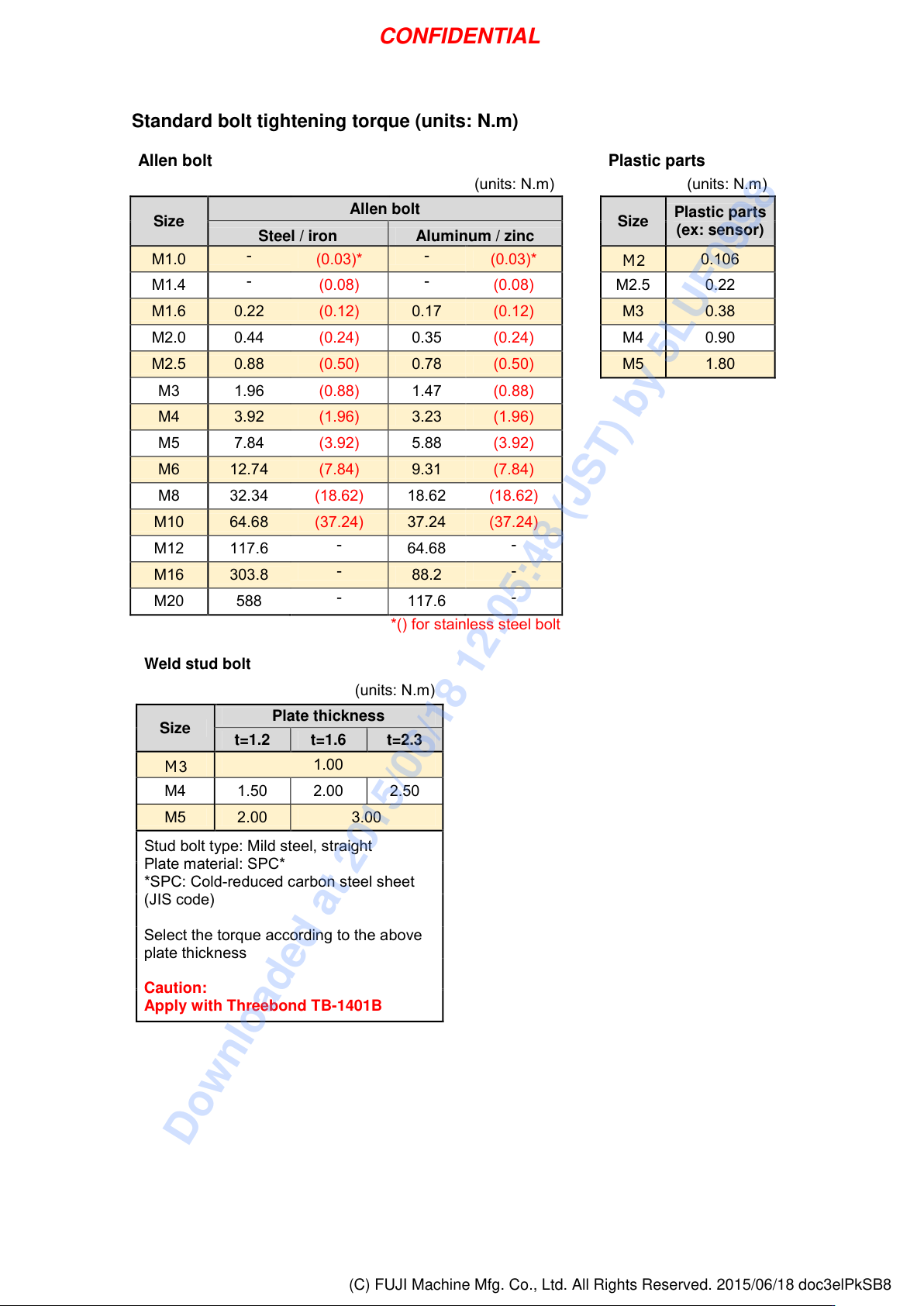

Standard bolt tightening torque (units: N.m)

Allen bolt

Plastic parts

(units: N.m)

Size

Allen bolt

Size

Plastic parts

(ex: sensor)

Steel / iron

Aluminum / zinc

M1.0

(0.03)*

Ｍ2

0.106

M1.4

(0.08)

M2.5 0.22

M1.6 0.22 (0.12) 0.17 (0.12)

M3 0.38

M2.0 0.44 (0.24) 0.35 (0.24)

M4 0.90

M2.5 0.88 (0.50) 0.78 (0.50)

M5 1.80

M3 1.96 (0.88) 1.47 (0.88)

M4 3.92 (1.96) 3.23 (1.96)

M5 7.84 (3.92) 5.88 (3.92)

M6 12.74 (7.84) 9.31 (7.84)

M8 32.34 (18.62) 18.62 (18.62)

M10 64.68 (37.24) 37.24 (37.24)

M12 117.6

64.68

M16 303.8

88.2

M20 588

117.6

*() for stainless steel bolt

Weld stud bolt

(units: N.m)

Size

Plate thickness

t=1.2

t=1.6

t=2.3

Ｍ3

1.00

M4 1.50 2.00 2.50

M5 2.00 3.00

Stud bolt type: Mild steel, straight

Plate material: SPC*

*SPC: Cold-reduced carbon steel sheet

(JIS code)

Select the torque according to the above

plate thickness

Caution:

Apply with Threebond TB-1401B

CONFIDENTIAL
