Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

28. Lower the Z-axis manually until the dial gauge reads “0”. Keep the position, and then

click “Register” to register the holder A Z0 position.

The holder A Z0 position is registered 2500 pulses below this position.

(For example, if the measured value is 16,000 pulses, the value registered is 18,500 pulses).

29. Move the Z-axis lever to where it does not interfere with the syringe pusher, and then

click [OK].

30. Measure holders B to X in the same way. Do NOT touch the head, because the R-

axis and Q-axis automatically rotate during this motion.

Move the Z-axis lever to

where it does not interfere

with the syringe pusher.

Z-axis lever

Syringe ﾞ

16000

18500

FK-9F50-08-0E S1-22 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

31. Remove the Z0 proper data measurement jig (2AGKHJ015101).

32. After measureing holder X, click [OK], this will move the Z-axis lever to where it does

not interfere with the syringe pusher.

33. Click [Next]. (Note: If you select [Retry], restart from Z-axis measurement step 1.)

34. Click [Write].

Move the Z-axis lever to where it

does not interfere with the

syringe pusher, then click [OK].

Z-axis lever

Syringe

FK-9F50-08-0E S1-23 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

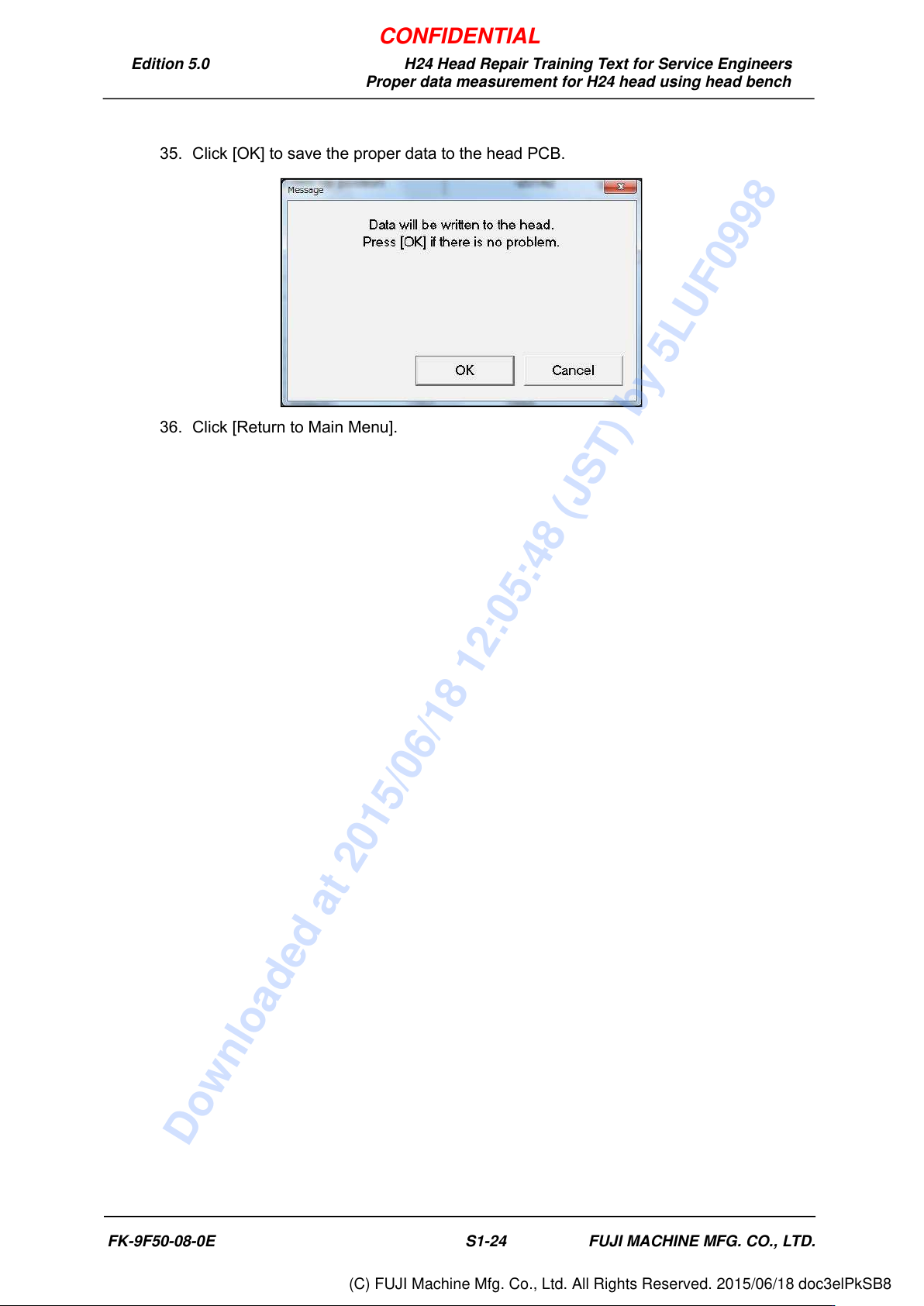

35. Click [OK] to save the proper data to the head PCB.

36. Click [Return to Main Menu].
