Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

10.2 Explanation about Head Proper Data Measurement Tool

Press the [UP]/[Down] button on the Operation Panel to select the command. Then, press

the [OK] button to perform the command.

Depending on the machine condition some commands become gray out. In this case, the

command cannot be performed.

1. Power ON/OFF : Turn ON/OFF the Head Power

2. Get Proper Data : Display the current proper data

1) Select the “Get proper data” to see the current proper data saved in the Head

control board.

2) Select [Save] to output the text file of the proper data to the Base CPU (PC card).

Address of the file: /Fuji/User/Parameter/Head serial number.txt

Note

：

[Save] command is only to create the text file of the Head proper data in the

Base CPU. Therefore, this command does not write the proper data on the Head

control board. To write the proper data on the Head control board, perform the

[Write] command after all proper data measurement is complete.

Serial Number of the Head

Start the Proper Data Measurement

Perform the Motion Check

Display the Proper Data

Turn ON/OFF Head Power

Status of the Head Power

FK-9F50-08-0E 10-4 FUJI MACHINE MFG. CO., LTD

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

Head Proper Data Measurement Workflow

Main Menu

Head Serial Number

Proper Data Measurement

Motion Check

Proper Data Display

Head PW ON/OFF

Z-axis Mechanical end measurement

R-axis Proper Data Measurement

Q-axis MT Reset

Proper Data display

Write the Proper Data to

the Head control board

R-axis MT Reset

Q-axis Proper Data Measurement

Z-axis Upper position measurement

Z-axis MT Reset

Z-axis Lower position measurement

Z0 Measurement

FK-9F50-08-0E 10-5 FUJI MACHINE MFG. CO., LTD

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineer

Proper Data Measurement

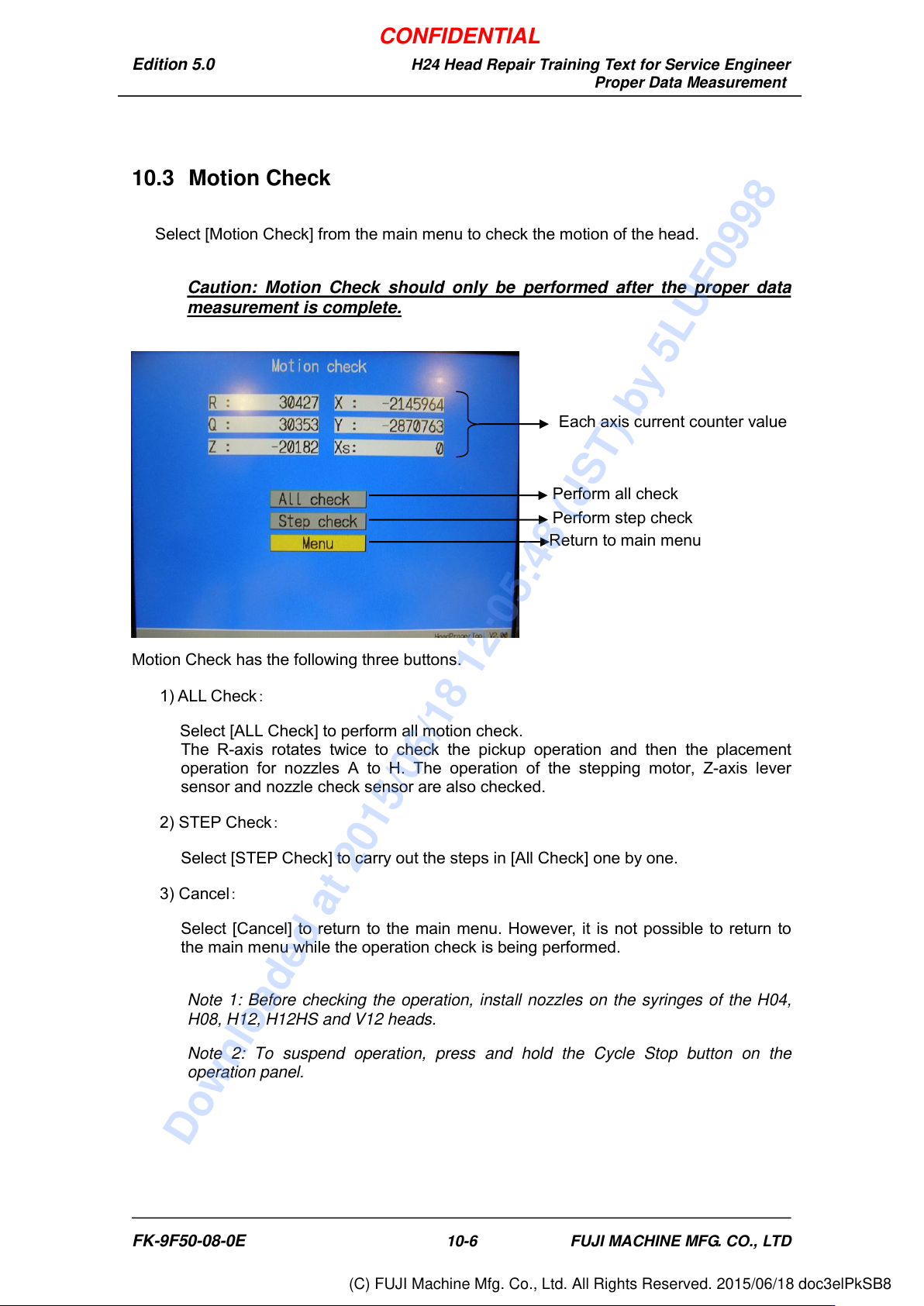

10.3

Motion Check

Select [Motion Check] from the main menu to check the motion of the head.

Caution: Motion Check should only be performed after the proper data

measurement is complete.

Motion Check has the following three buttons.

1) ALL Check：

Select [ALL Check] to perform all motion check.

The R-axis rotates twice to check the pickup operation and then the placement

operation for nozzles A to H. The operation of the stepping motor, Z-axis lever

sensor and nozzle check sensor are also checked.

2) STEP Check：

Select [STEP Check] to carry out the steps in [All Check] one by one.

3) Cancel：

Select [Cancel] to return to the main menu. However, it is not possible to return to

the main menu while the operation check is being performed.

Note 1: Before checking the operation, install nozzles on the syringes of the H04,

H08, H12, H12HS and V12 heads.

Note 2: To suspend operation, press and hold the Cycle Stop button on the

operation panel.

Perform all check

Perform step check

Return to main menu

Each axis current counter value
