Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

1.2

Q-axis Proper Data Measurement

1. Attach the H24 head on the head bench, and then turn the power ON.

2. Start the “Head Check Tool”, and then click [Calibration Data Measurement].

3. Click [Measure Q-axis].

OFF

Emergency Stop

button

Power

FK-9F50-08-0E S1-10 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

4. Click [OK]. Move the Z-axis lever to where it does not interfere with the syringe pusher.

Then, execute Q-axis MT-reset. It is OK to execute the Q-axis MT-reset at any position.

5. Click [OK]. Holder A moves to the front and the R-axis servo turns ON. Do NOT touch

the head, because the R-axis and Q-axis automatically rotate during this motion.

Move the Z-axis lever to

where it does not interfere

with the syringe pusher.

Z-axis lever

Syringe

FK-9F50-08-0E S1-11 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

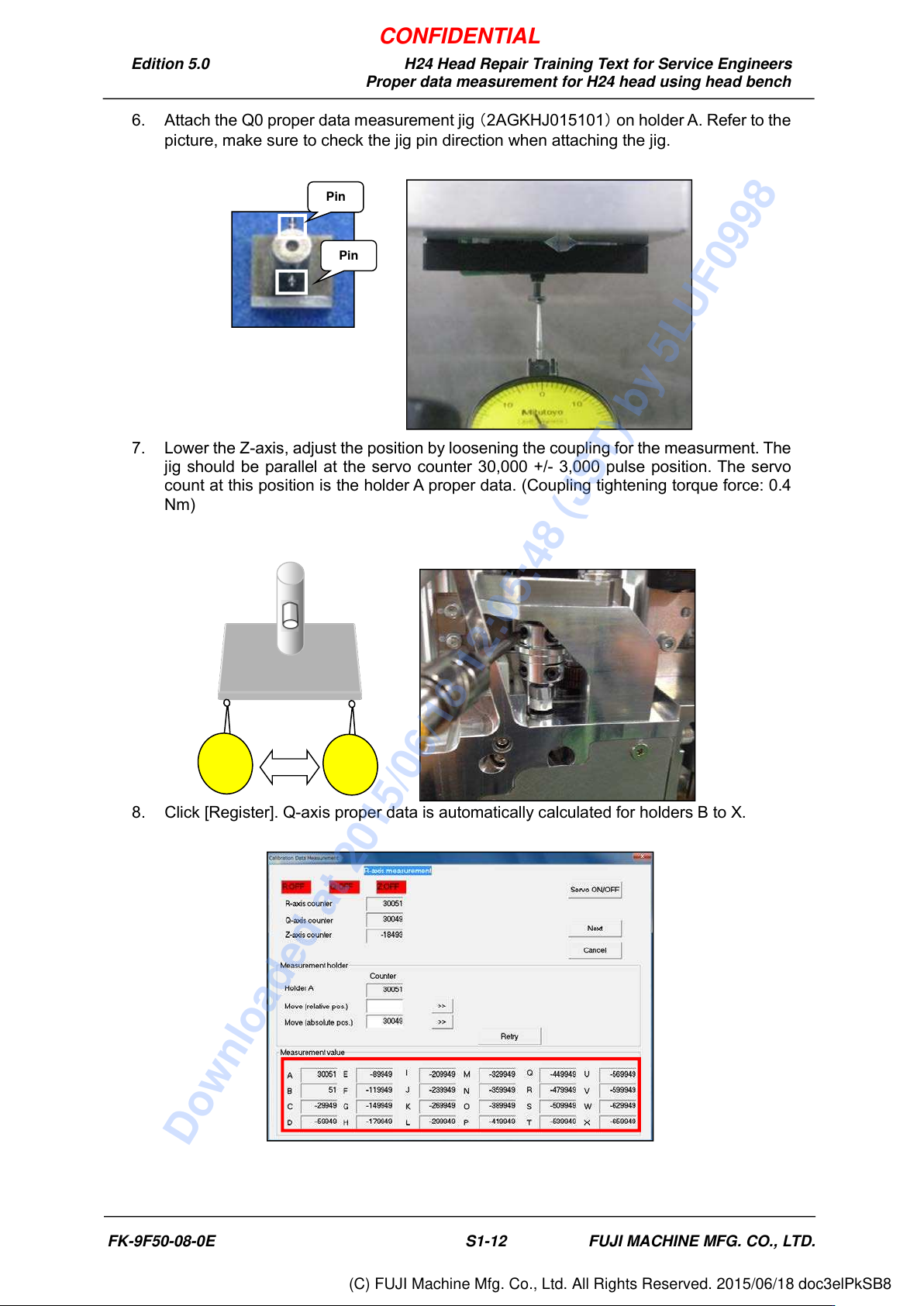

6. Attach the Q0 proper data measurement jig （2AGKHJ015101） on holder A. Refer to the

picture, make sure to check the jig pin direction when attaching the jig.

7. Lower the Z-axis, adjust the position by loosening the coupling for the measurment. The

jig should be parallel at the servo counter 30,000 +/- 3,000 pulse position. The servo

count at this position is the holder A proper data. (Coupling tightening torque force: 0.4

Nm)

8. Click [Register]. Q-axis proper data is automatically calculated for holders B to X.

自動計算さ

れた状態
