Edition5.0 H24 Head Repair Training Text for Service Engineers
Replacing the R-axis motor

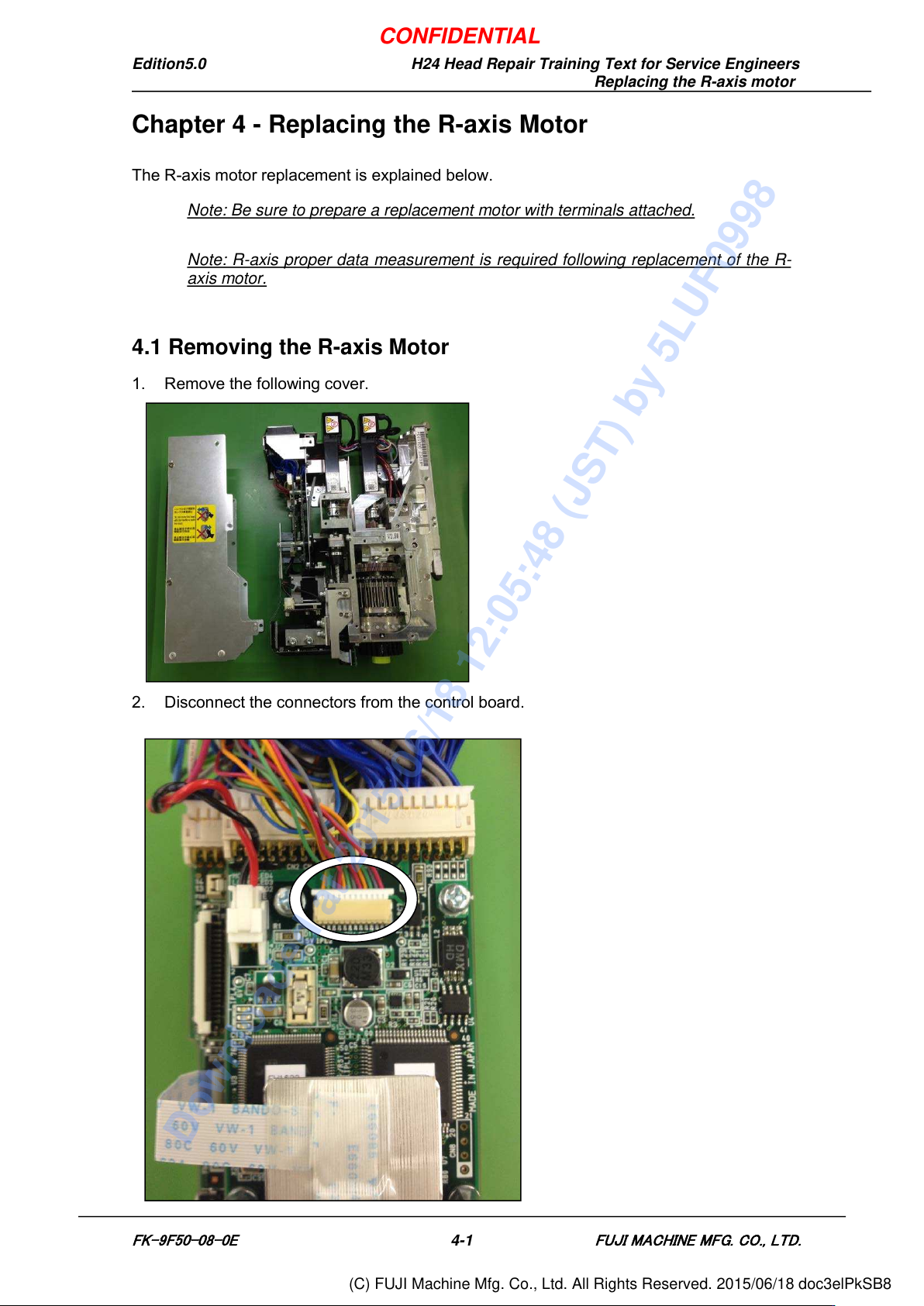

Chapter 4 - Replacing the R-axis Motor
The R-axis motor replacement is explained below.
Note: Be sure to prepare a replacement motor with terminals attached.
Note: R-axis proper data measurement is required following replacement of the R-
axis motor.
4.1 Removing the R-axis Motor
1. Remove the following cover.
2. Disconnect the connectors from the control board.
FK-9F50-08-0E
4-1
