Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

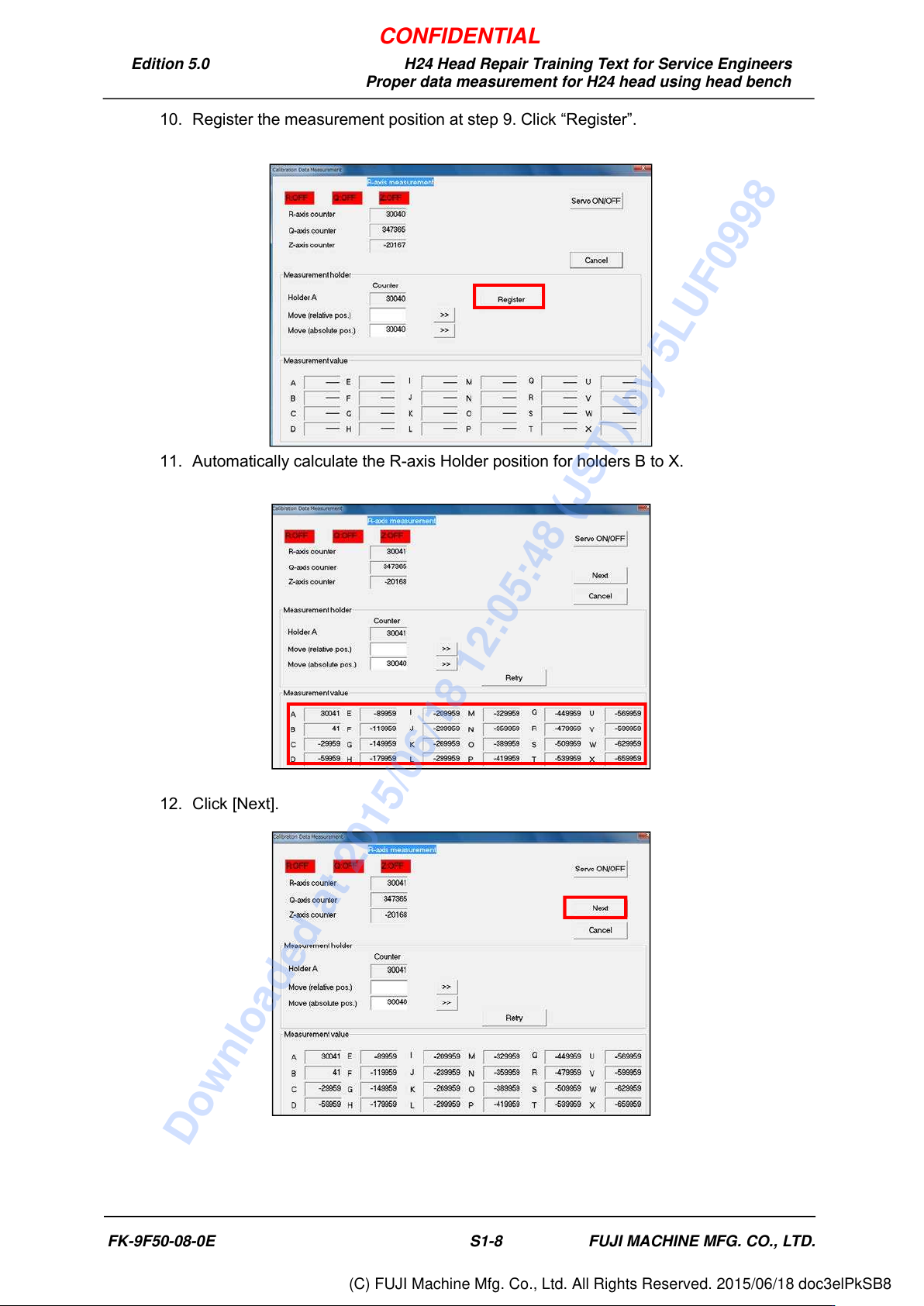

10. Register the measurement position at step 9. Click “Register”.

11. Automatically calculate the R-axis Holder position for holders B to X.

12. Click [Next].

FK-9F50-08-0E S1-8 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

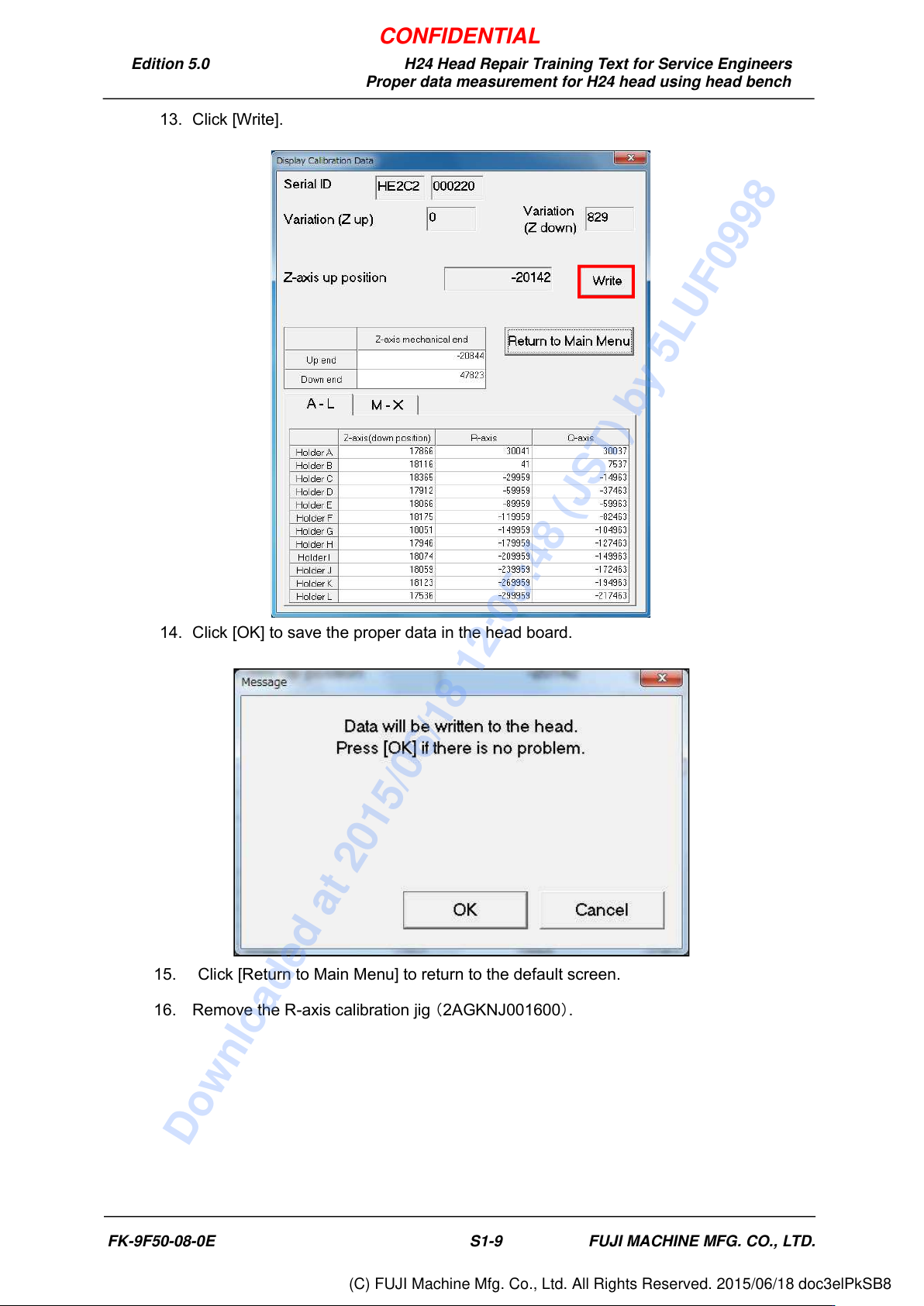

13. Click [Write].

14. Click [OK] to save the proper data in the head board.

15. Click [Return to Main Menu] to return to the default screen.

16. Remove the R-axis calibration jig （2AGKNJ001600）.

FK-9F50-08-0E S1-9 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

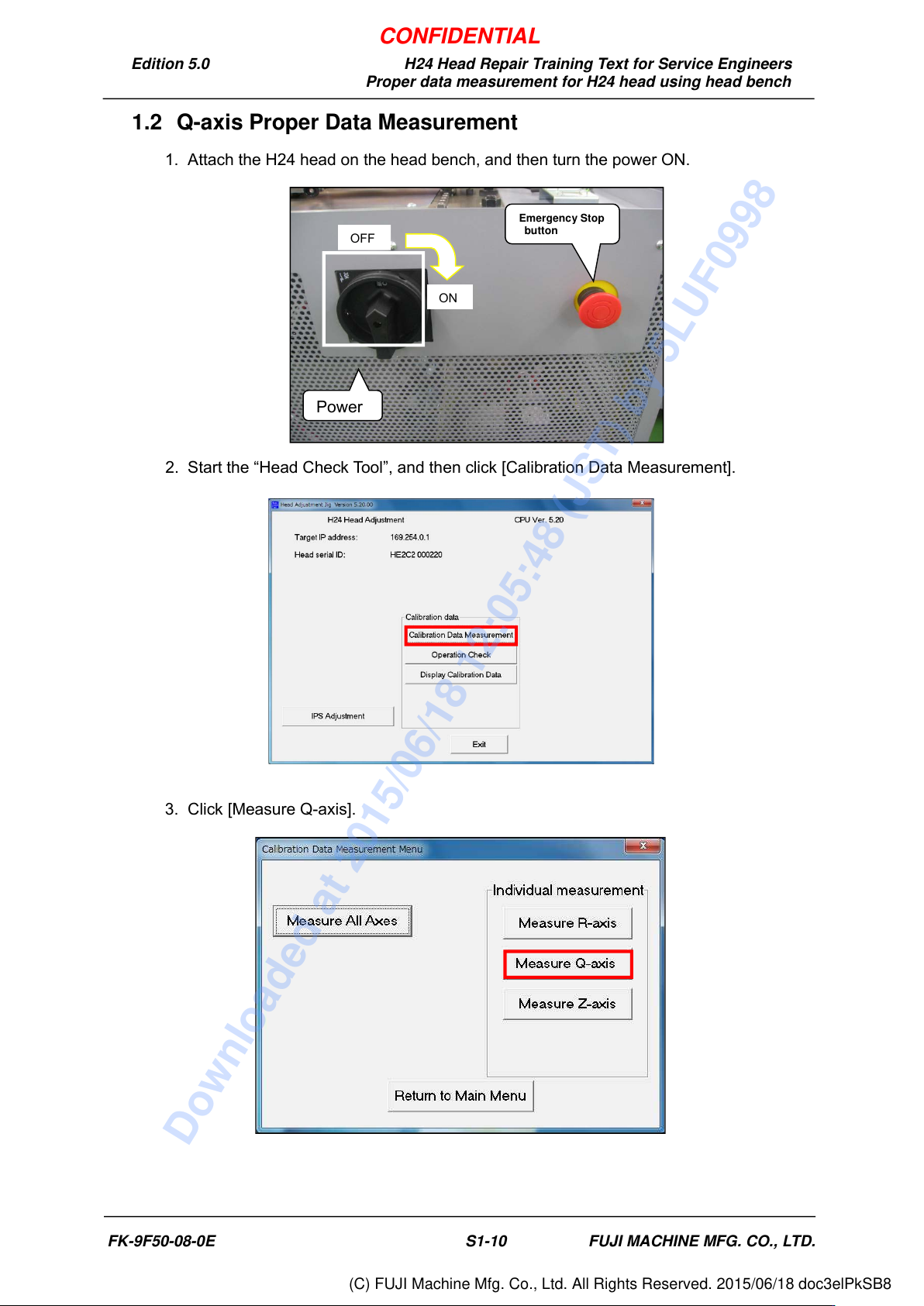

1.2

Q-axis Proper Data Measurement

1. Attach the H24 head on the head bench, and then turn the power ON.

2. Start the “Head Check Tool”, and then click [Calibration Data Measurement].

3. Click [Measure Q-axis].

OFF

Emergency Stop

button

Power

FK-9F50-08-0E S1-10 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL
