Edition 5.0 H24 Head Repair Training Text for Service Engineers

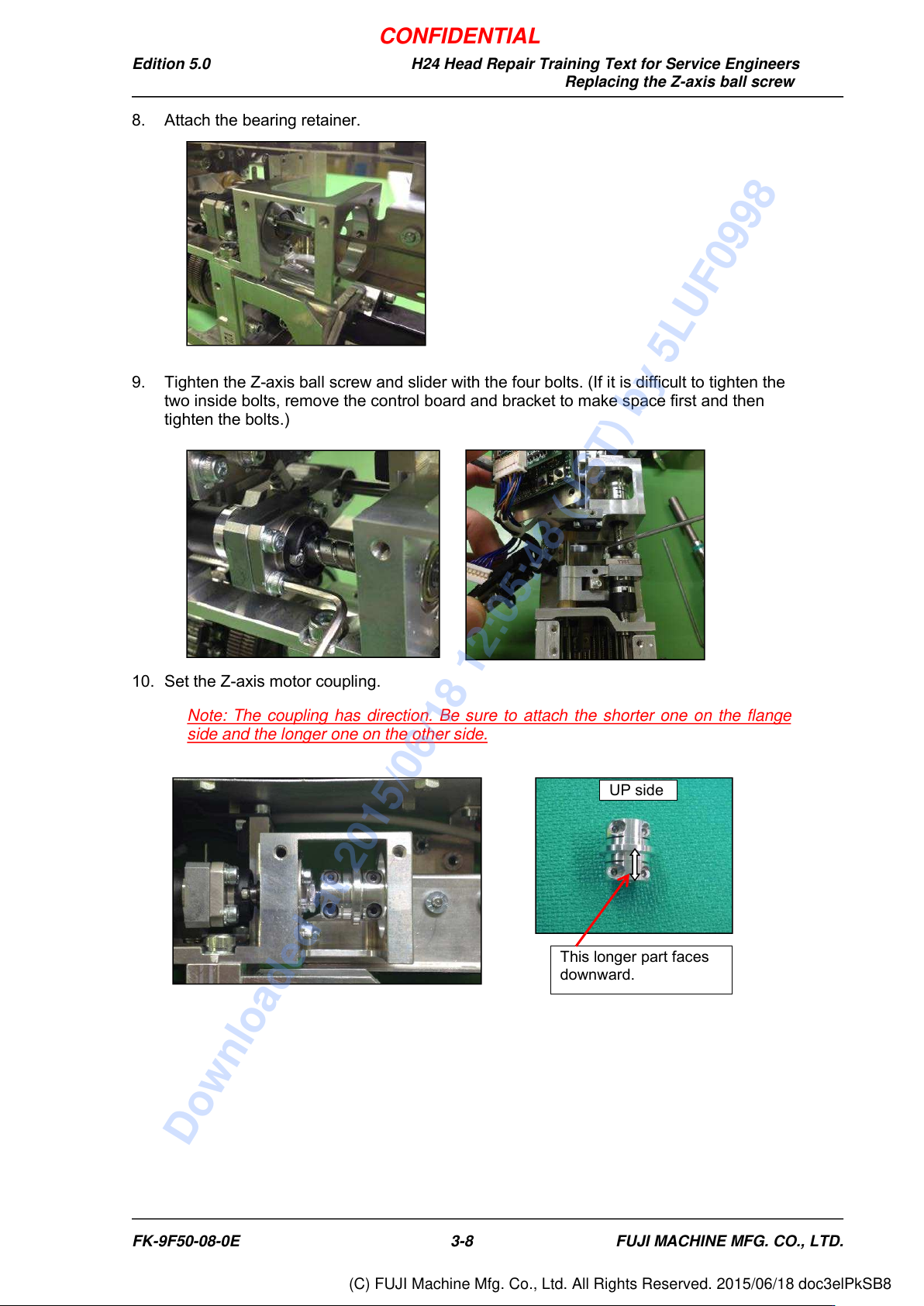

Replacing the Z-axis ball screw

8. Attach the bearing retainer.

9. Tighten the Z-axis ball screw and slider with the four bolts. (If it is difficult to tighten the

two inside bolts, remove the control board and bracket to make space first and then

tighten the bolts.)

10. Set the Z-axis motor coupling.

Note: The coupling has direction. Be sure to attach the shorter one on the flange

side and the longer one on the other side.

This longer part faces

downward.

UP side

FK-9F50-08-0E

3-8

FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the Z-axis ball screw

11. Attach the Z-axis motor with the two bolts. When tightening them, align the motor shaft

so the coupling can slide up and down smoothly.

12. Temporally tighten the four coupling bolts. Tighten them completely when measuring

the proper data.

13. Attach the spool up/down arm assembly, bracket (upper), stepping motor, and IPS

camera using the reverse procedure to the one used when removing them.

Temporarily tighten the stepping motor and IPS camera.

14. Perform the Z-axis proper data measurement.

FK-9F50-08-0E

3-9
