Edition 5.0
H24 Head Repair Training Text for Service Engineers
Adjusting the Nozzle Lowering Lever Check Sensor and Measuring the Air Pressure
Chapter 6 - Adjusting the Nozzle Lowering Lever Check
Sensor and Measuring the Air Pressure
H24 Sensor Positions
FK-9F50-08-0E
6-1
FUJI MACHINE MFG. CO., LTD.
CONFIDENTIAL
Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998
(C) FUJI Machine Mfg. Co., Ltd. All Rights Reserved. 2015/06/18 doc3elPkSB8

Edition 5.0
H24 Head Repair Training Text for Service Engineers
Adjusting the Nozzle Lowering Lever Check Sensor and Measuring the Air Pressure

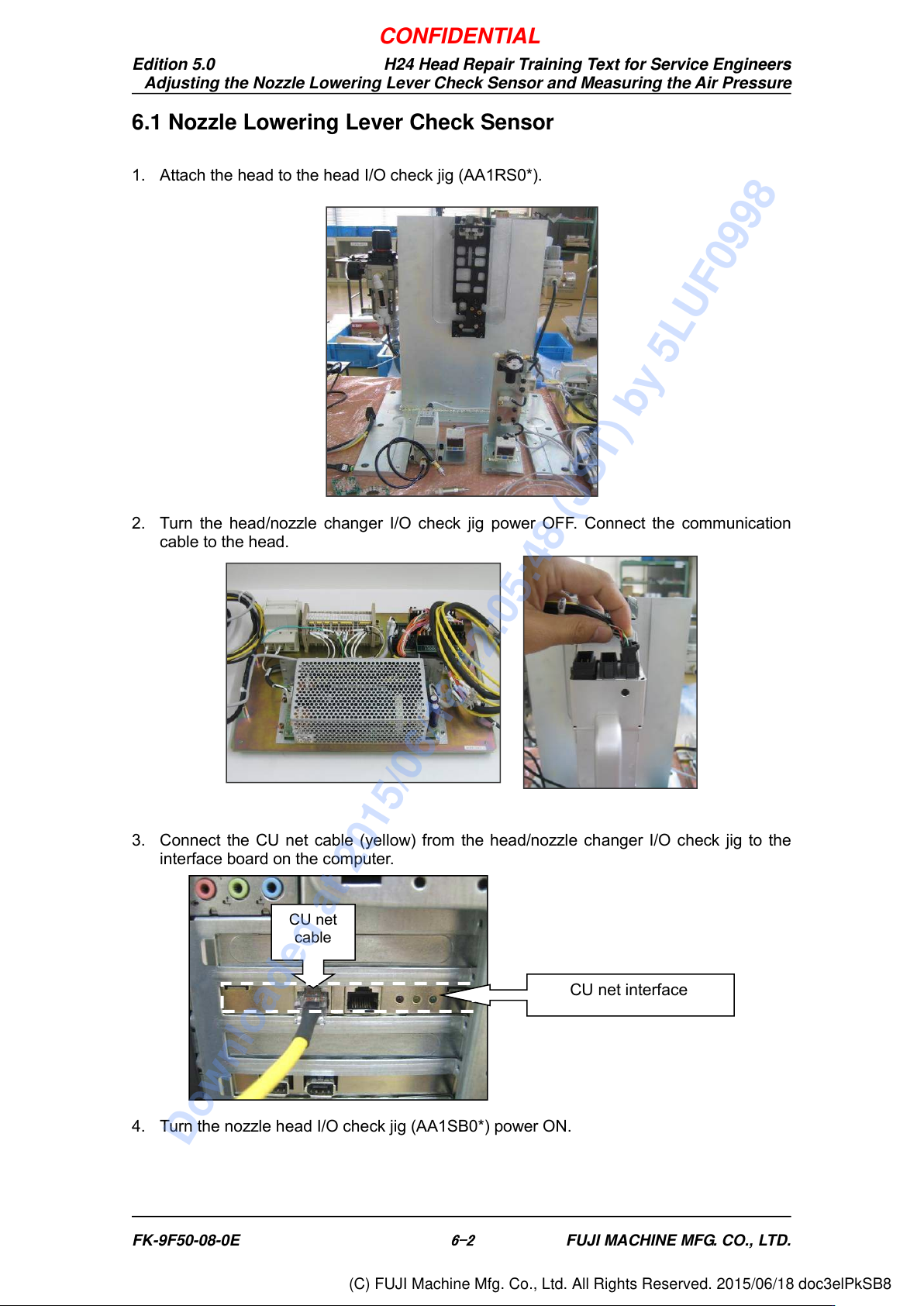

6.1 Nozzle Lowering Lever Check Sensor
1. Attach the head to the head I/O check jig (AA1RS0*).
2. Turn the head/nozzle changer I/O check jig power OFF. Connect the communication
cable to the head.
3. Connect the CU net cable (yellow) from the head/nozzle changer I/O check jig to the
interface board on the computer.
4. Turn the nozzle head I/O check jig (AA1SB0*) power ON.
CU net interface
CU net
cable
FK-9F50-08-0E
6-2
FUJI MACHINE MFG. CO., LTD.
CONFIDENTIAL
Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998
(C) FUJI Machine Mfg. Co., Ltd. All Rights Reserved. 2015/06/18 doc3elPkSB8

Edition 5.0
H24 Head Repair Training Text for Service Engineers
Adjusting the Nozzle Lowering Lever Check Sensor and Measuring the Air Pressure

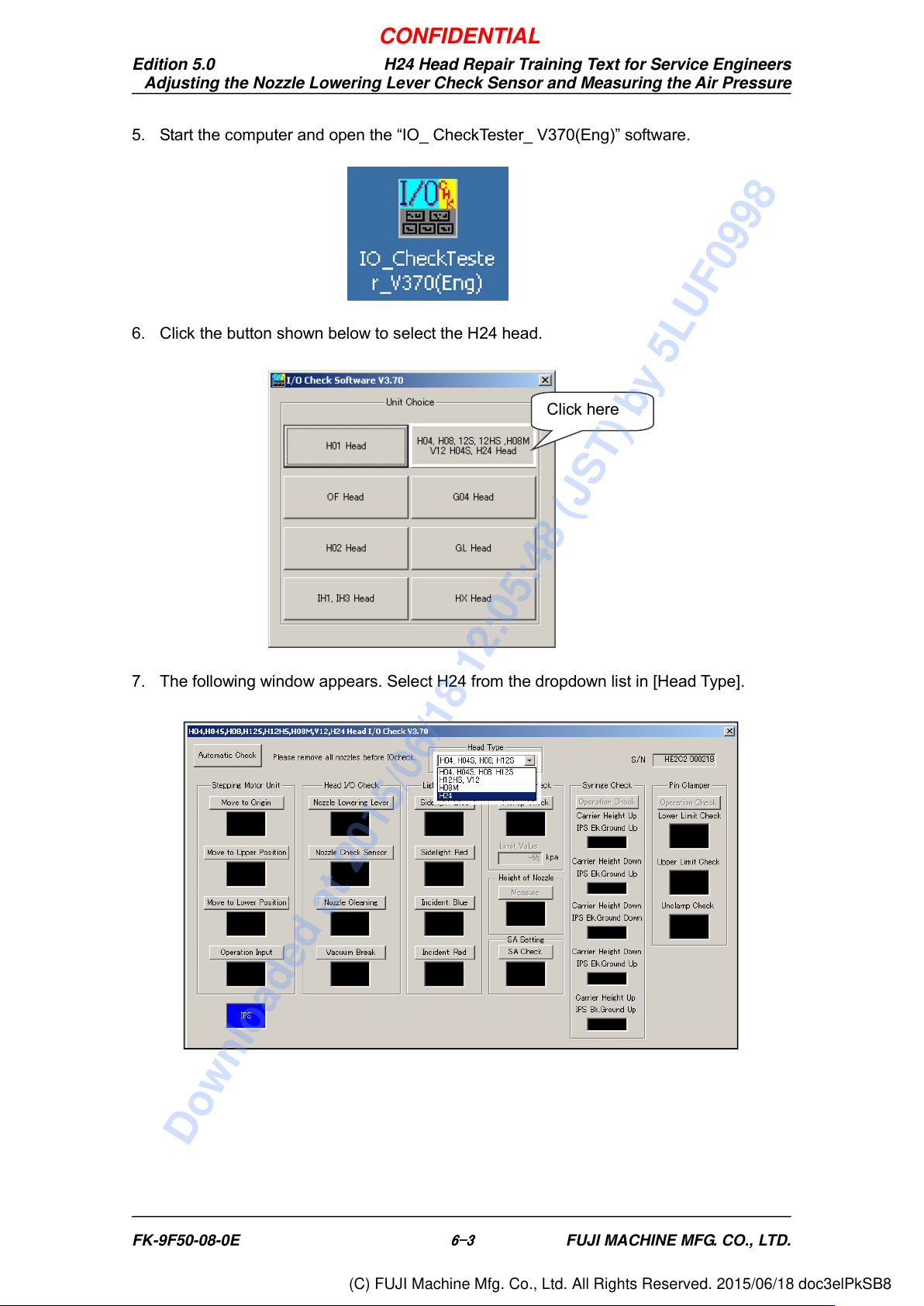

5. Start the computer and open the “IO_ CheckTester_ V370(Eng)” software.
6. Click the button shown below to select the H24 head.
7. The following window appears. Select H24 from the dropdown list in [Head Type].
Click here
FK-9F50-08-0E
6-3
