Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-7 FUJI MACHINE MFG. CO., LTD.

11.3. Component names and explanation of the adjustment modes

Mode name: displays the currently selected adjustment mode.

Back button: used to switch to a different mode from the currently selected mode.

Set button: used when saving or when selecting modes.

Mode name Contents

AUTO MODE The initial screen displayed when the power is supplied to the

head.

ADJ MODE This mode is used to access the 3 adjustment modes below.

ADJUSTMENT 1 Used for resolution and tilt adjustment.

ADJUSTMENT 2 Used for grayscale and current value adjustment.

ADJUSTMENT 3 Used to check the field of vision.

CONFIGURATION Used to set the function settings.

Back button

Set button

Mode name

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-8 FUJI MACHINE MFG. CO., LTD.

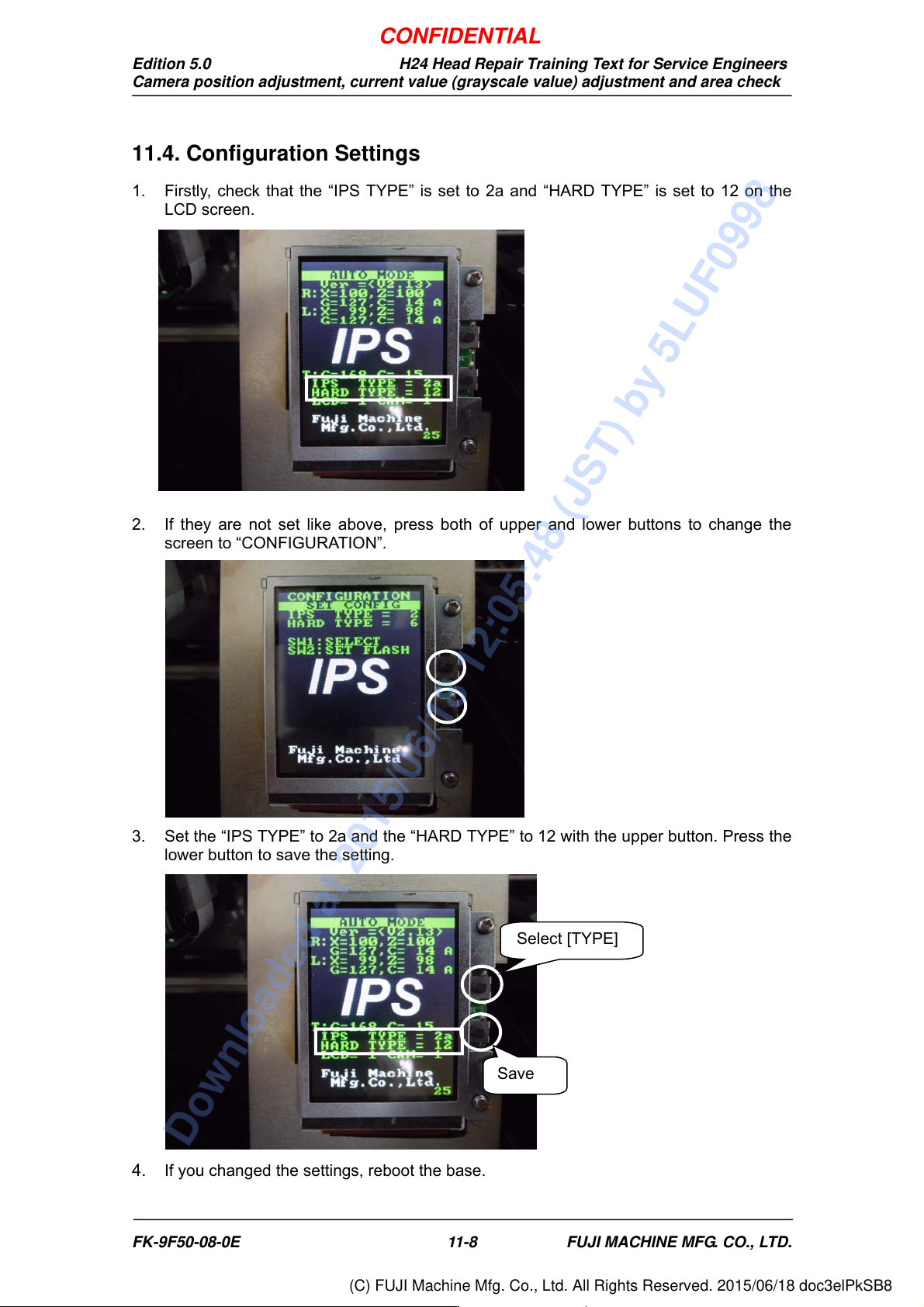

11.4. Configuration Settings

1. Firstly, check that the “IPS TYPE” is set to 2a and “HARD TYPE” is set to 12 on the

LCD screen.

2. If they are not set like above, press both of upper and lower buttons to change the

screen to “CONFIGURATION”.

3. Set the “IPS TYPE” to 2a and the “HARD TYPE” to 12 with the upper button. Press the

lower button to save the setting.

4. If you changed the settings, reboot the base.

Select [TYPE]

Save

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-9 FUJI MACHINE MFG. CO., LTD.

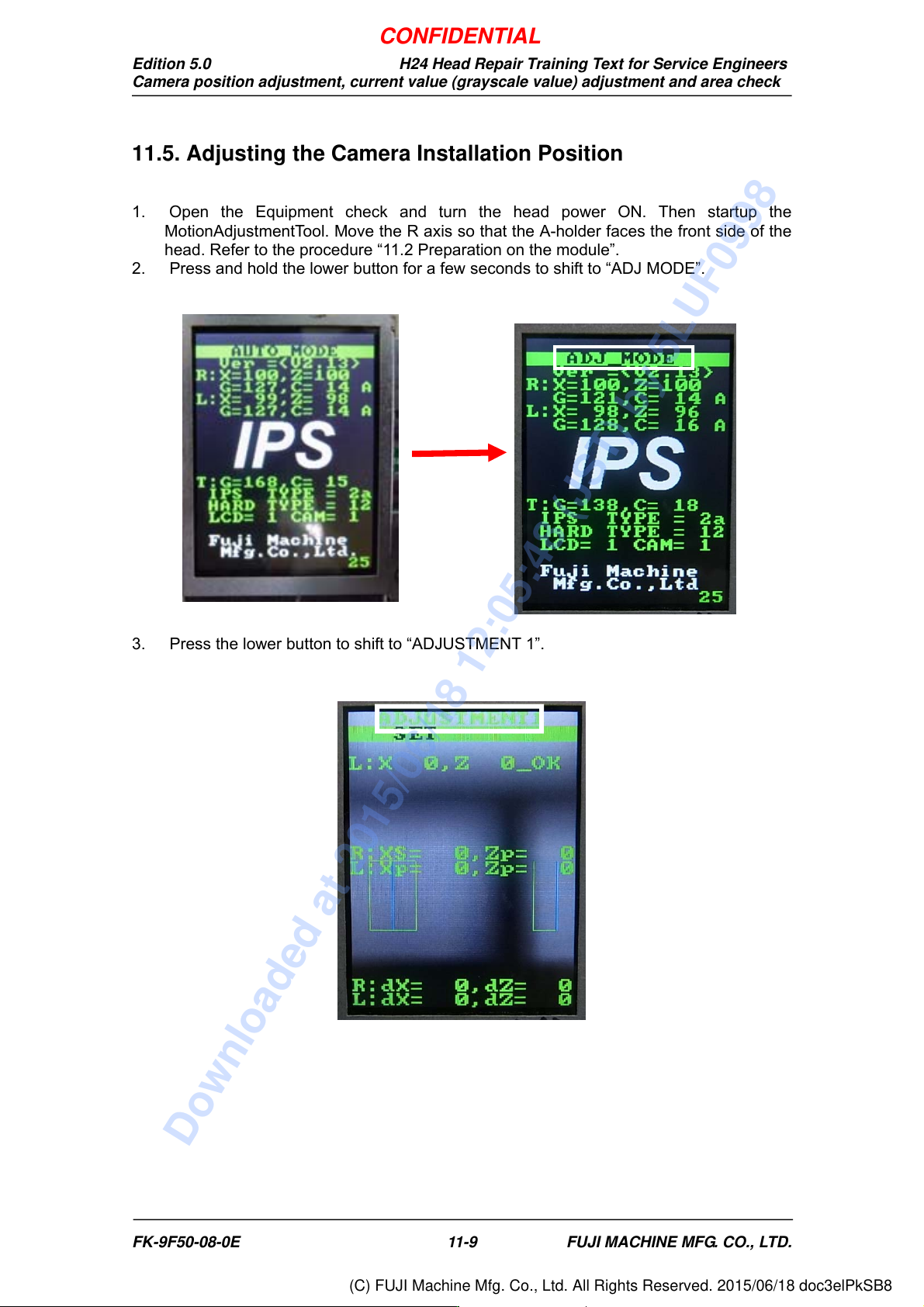

11.5. Adjusting the Camera Installation Position
