Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing and Adjusting the Stepping Motor

7.5 Adjusting the Stepping Motor Position

1. Lower the holder A spool valve by hand.

2. Move holder A to the Z-axis motor roller position by hand.

Motor roller

Spool valve for

syringe A

Syringe A

FK-9F50-08-0E 7-7 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing and Adjusting the Stepping Motor

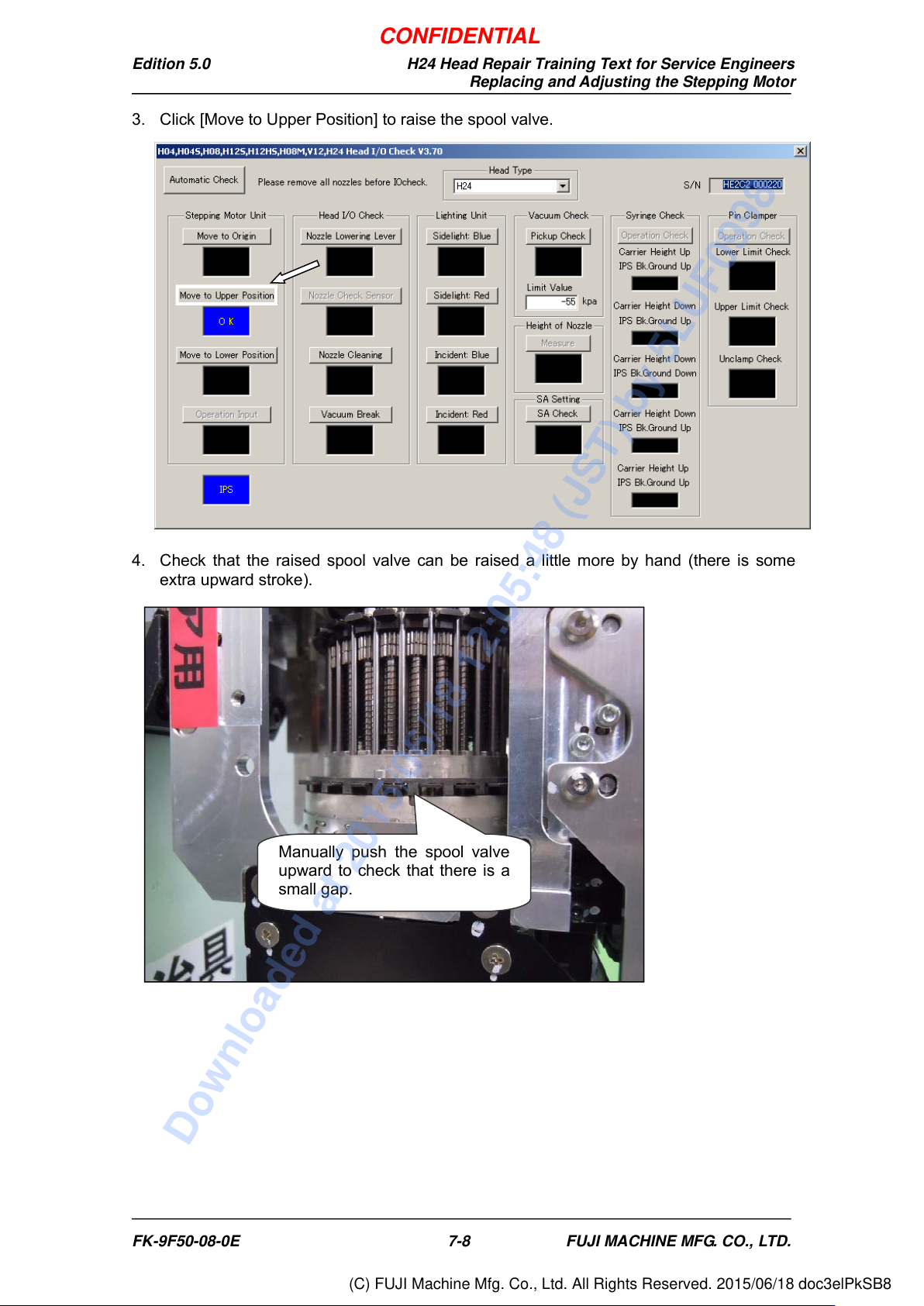

3. Click [Move to Upper Position] to raise the spool valve.

4. Check that the raised spool valve can be raised a little more by hand (there is some

extra upward stroke).

Manually push the spool valve

upward to check that there is a

small gap.

FK-9F50-08-0E 7-8 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing and Adjusting the Stepping Motor

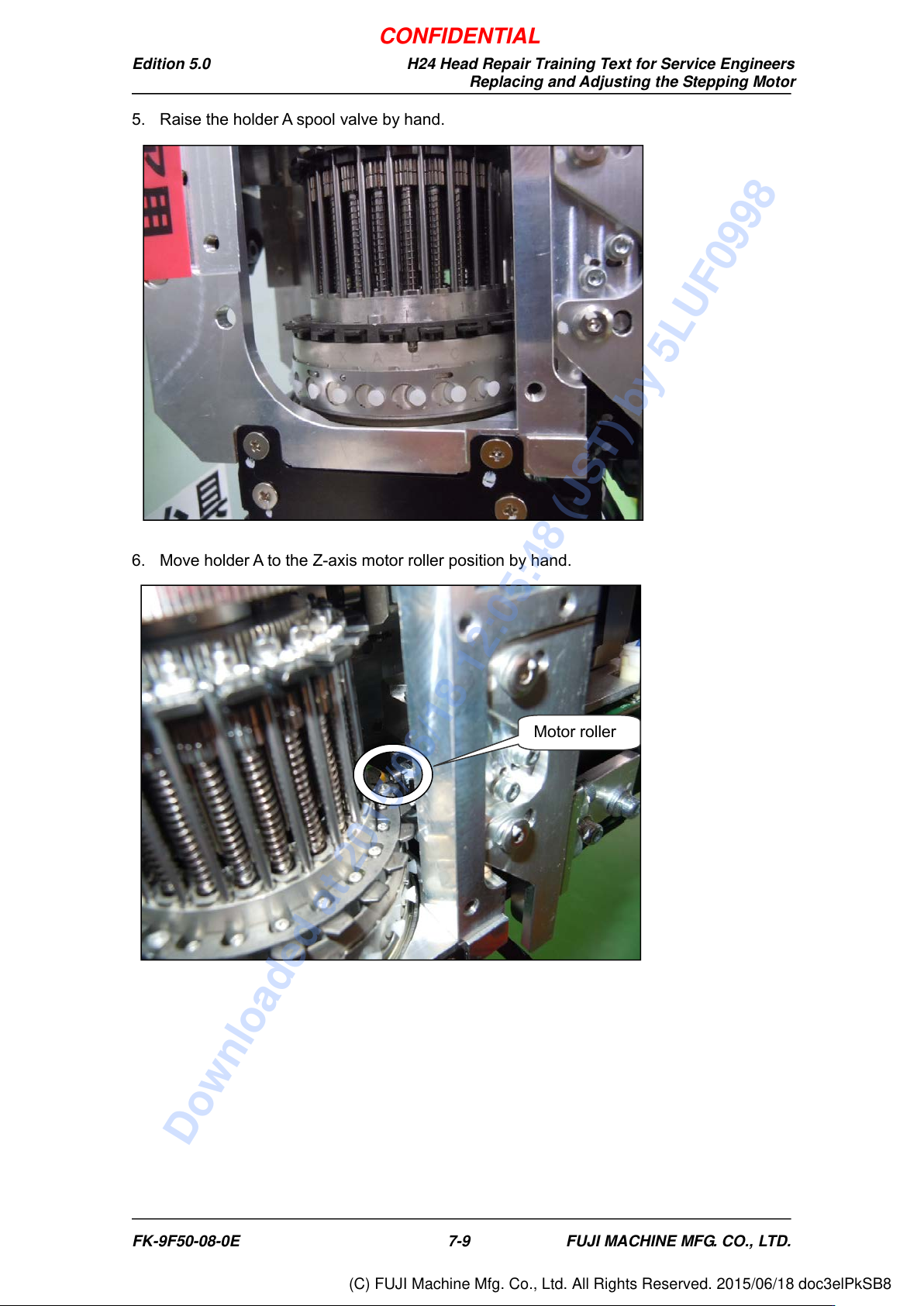

5. Raise the holder A spool valve by hand.

6. Move holder A to the Z-axis motor roller position by hand.

Motor roller

FK-9F50-08-0E 7-9 FUJI MACHINE MFG. CO., LTD.
