Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

1.3

Z-axis Proper Data Measurement

1. Attach the H24 head, and then turn ON the power.

2. Start Head Check Tool V5.20, click [Calibration Data Measurement].

3. Click [Measure Z-axis].

OFF

Emergency Stop

button (Release)

Power

FK-9F50-08-0E S1-14 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

4. Lightly contact the Z-axis lever cam follower against the arm (top of the syringe

pusher), and then execute Z-axis MT-reset.

5. Click [OK]. Holder A moves to the front and the R-axis servo turns ON. Do NOT touch

the head during this motion because the R-axis and Q-axis automatically rotate.

6. The following window opens.

Cam follower

Arm

FK-9F50-08-0E S1-15 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

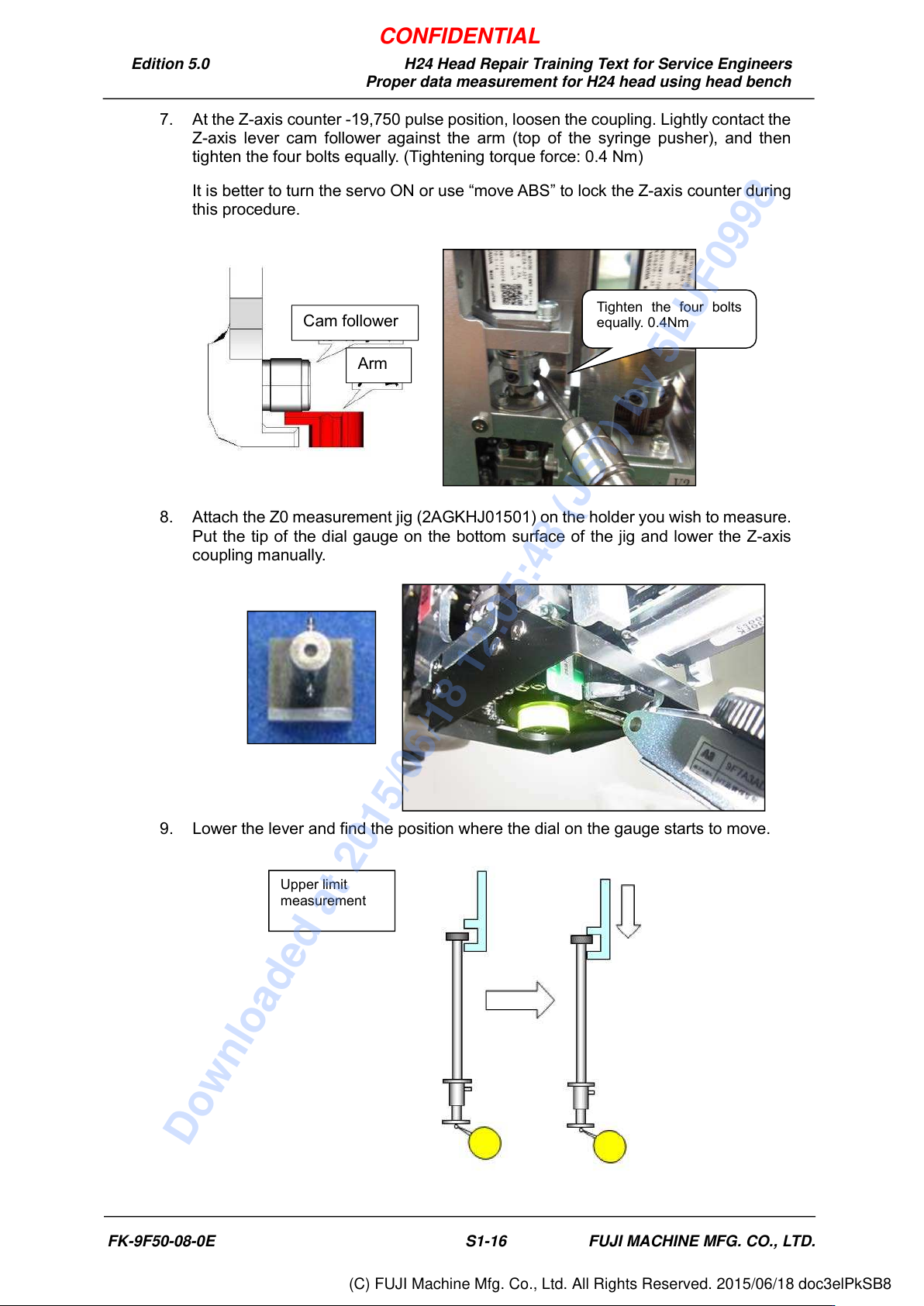

7. At the Z-axis counter -19,750 pulse position, loosen the coupling. Lightly contact the

Z-axis lever cam follower against the arm (top of the syringe pusher), and then

tighten the four bolts equally. (Tightening torque force: 0.4 Nm)

It is better to turn the servo ON or use “move ABS” to lock the Z-axis counter during

this procedure.

8. Attach the Z0 measurement jig (2AGKHJ01501) on the holder you wish to measure.

Put the tip of the dial gauge on the bottom surface of the jig and lower the Z-axis

coupling manually.

9. Lower the lever and find the position where the dial on the gauge starts to move.

Upper limit

measurement

Tighten the four bolts

equally. 0.4Nm

Cam follower

Arm

FK-9F50-08-0E S1-16 FUJI MACHINE MFG. CO., LTD.
