Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the Z-axis ball screw

14. Loosen the nut to remove the guide shaft slowly. (Please be careful when removing

the guide shaft. The balls in the guide shaft bearing may drop out.)

15. Remove the upper/lower bearings. Remove the Z-axis up/down lever assembly and

ball screw (tilt the ball screw so that it can be removed). Be careful not to remove the

ball screw nut from the ball screw.

FK-9F50-08-0E

3-5

FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the Z-axis ball screw

3.2 Attaching the Z-axis Ball Screw

1. Prepare the new Z-axis ball screw, bearings (upper and lower) and the cir clip.

2. Set the ball screw and the Z-axis up/down lever assembly.

3. Attach the guide shaft and tighten the nut with 0.78 Nm torque.

4. Temporally tighten the four mounting bolts for the ball screw. It is easier to tighten the

bolts through the hole for mounting the bearing before attaching the bearing.

Z-axis bearing

(upper)

FK-9F50-08-0E

3-6

FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Replacing the Z-axis ball screw

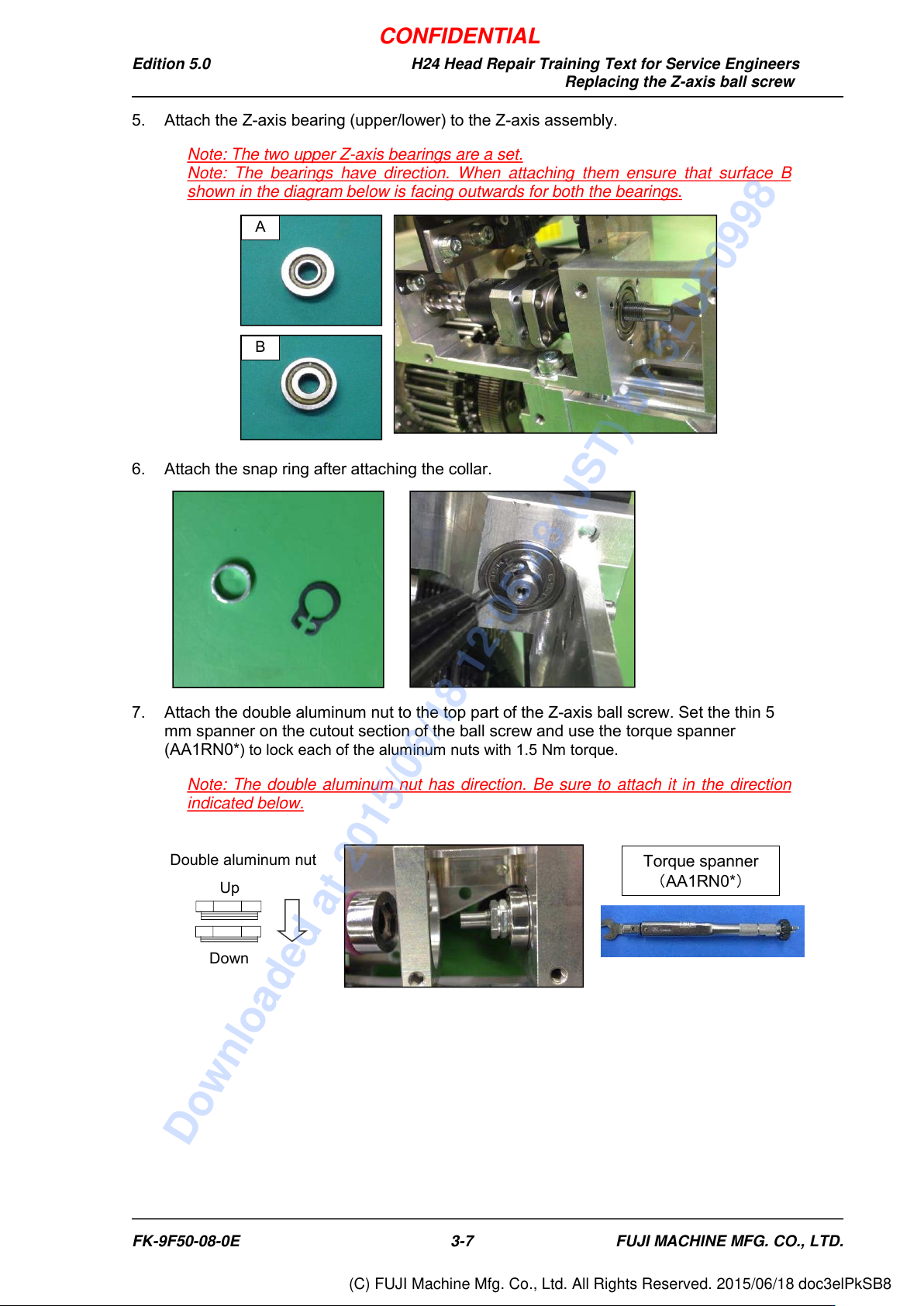

5. Attach the Z-axis bearing (upper/lower) to the Z-axis assembly.

Note: The two upper Z-axis bearings are a set.

Note: The bearings have direction. When attaching them ensure that surface B

shown in the diagram below is facing outwards for both the bearings.

6. Attach the snap ring after attaching the collar.

7. Attach the double aluminum nut to the top part of the Z-axis ball screw. Set the thin 5

mm spanner on the cutout section of the ball screw and use the torque spanner

(AA1RN0*

) to lock each of the aluminum nuts with 1.5 Nm torque.

Note: The double aluminum nut has direction. Be sure to attach it in the direction

indicated below.

Double aluminum nut

Down

Torque spanner

（AA1RN0*）

FK-9F50-08-0E

3-7

FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998
