Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

1.1

R-axis Proper Data Measurement

1. Attach the H24 head on the head bench, and then turn the power ON.

2. Start the Head Check Tool, and then click [Calibration Data Measurement].

3. The [Calibration Data Measurement Menu] window displays on the monitor.

OFF

Emergency Stop

button

Power

FK-9F50-08-0E S1-5 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

4. Attach the R-axis proper data measurement jig (2AGKNJ001600) on holder G and

holder S.

5. Refer to the arrow marks, and then align the R-axis position for MT-reset.

6. Click [Measure R-axis].

FK-9F50-08-0E S1-6 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Proper data measurement for H24 head using head bench

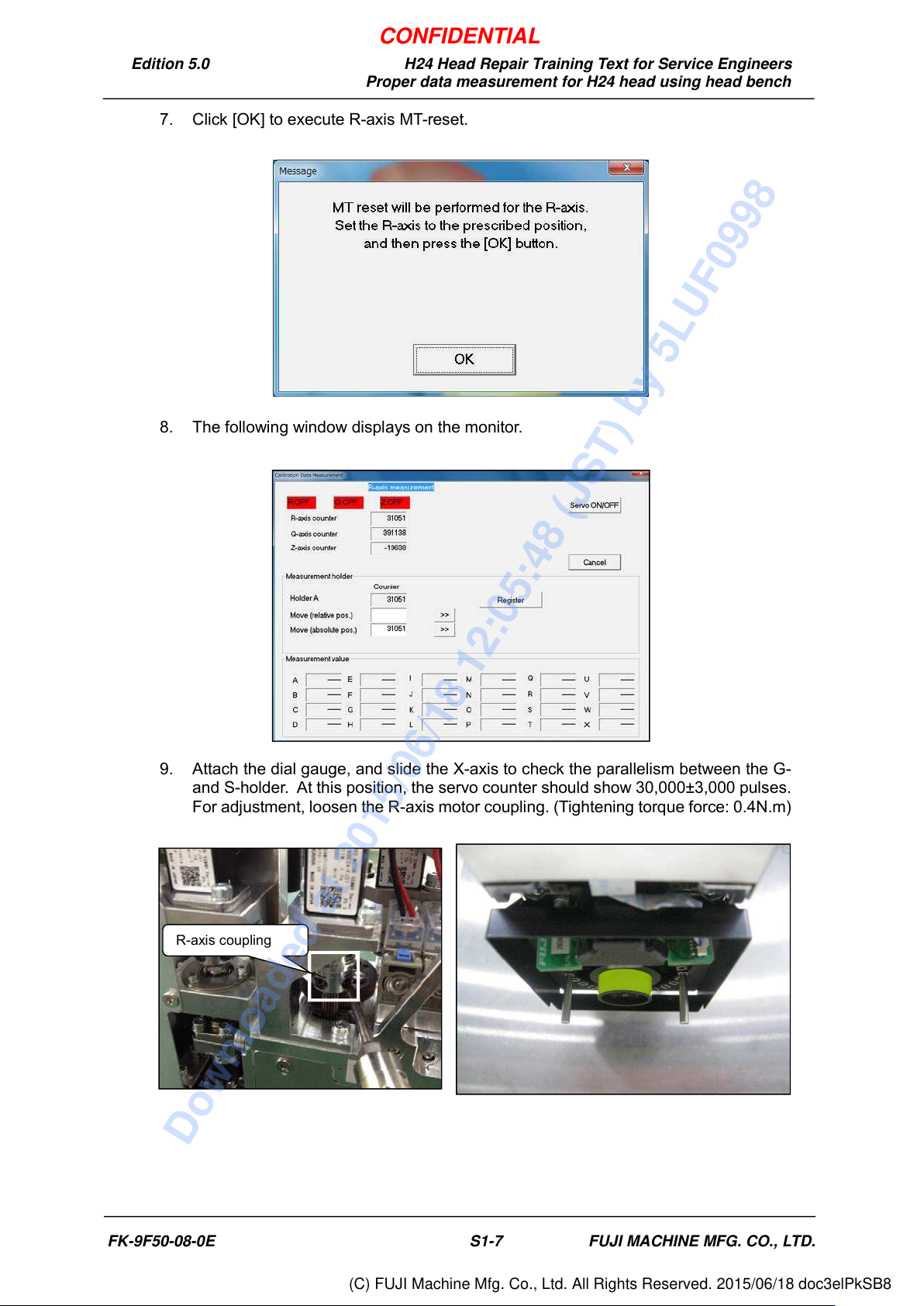

7. Click [OK] to execute R-axis MT-reset.

8. The following window displays on the monitor.

9. Attach the dial gauge, and slide the X-axis to check the parallelism between the G-

and S-holder. At this position, the servo counter should show 30,000±3,000 pulses.

For adjustment, loosen the R-axis motor coupling. (Tightening torque force: 0.4N.m)

R-axis coupling
