Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

5. Press the upper button to display “CURRENT BACK”.

6. Press the lower button to return to “ADJUSTMENT 2 CURRENT”.

7. Press the upper button to display “ADJUSTMENT 2 SET” and then press the lower

button to save the settings.

FK-9F50-08-0E S2-18 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

2.9 Checking the Nozzle Existence Field of Vision

1. Press the upper button to change to “ADJUSTMENT 3” and then press the lower

button to enter the adjustment mode. Press the lower button to display

“ADJUSTMENT 3 CHECK” then check the value is in the tolerance below.

2. Block the nozzle existence area glass with a piece of paper and then press the lower

button to display “ADJUSTMENT 3 CHECK”. (In the example below the right-hand

glass as viewed from the front of the machine is blocked).

AREA 4 = OK

S4 = 0%

AREA4 = NG

S4 = 100%

FK-9F50-08-0E S2-19 FUJI MACHINE MFG. CO., LTD.

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

IPS Camera position adjustment for H24 head using head bench

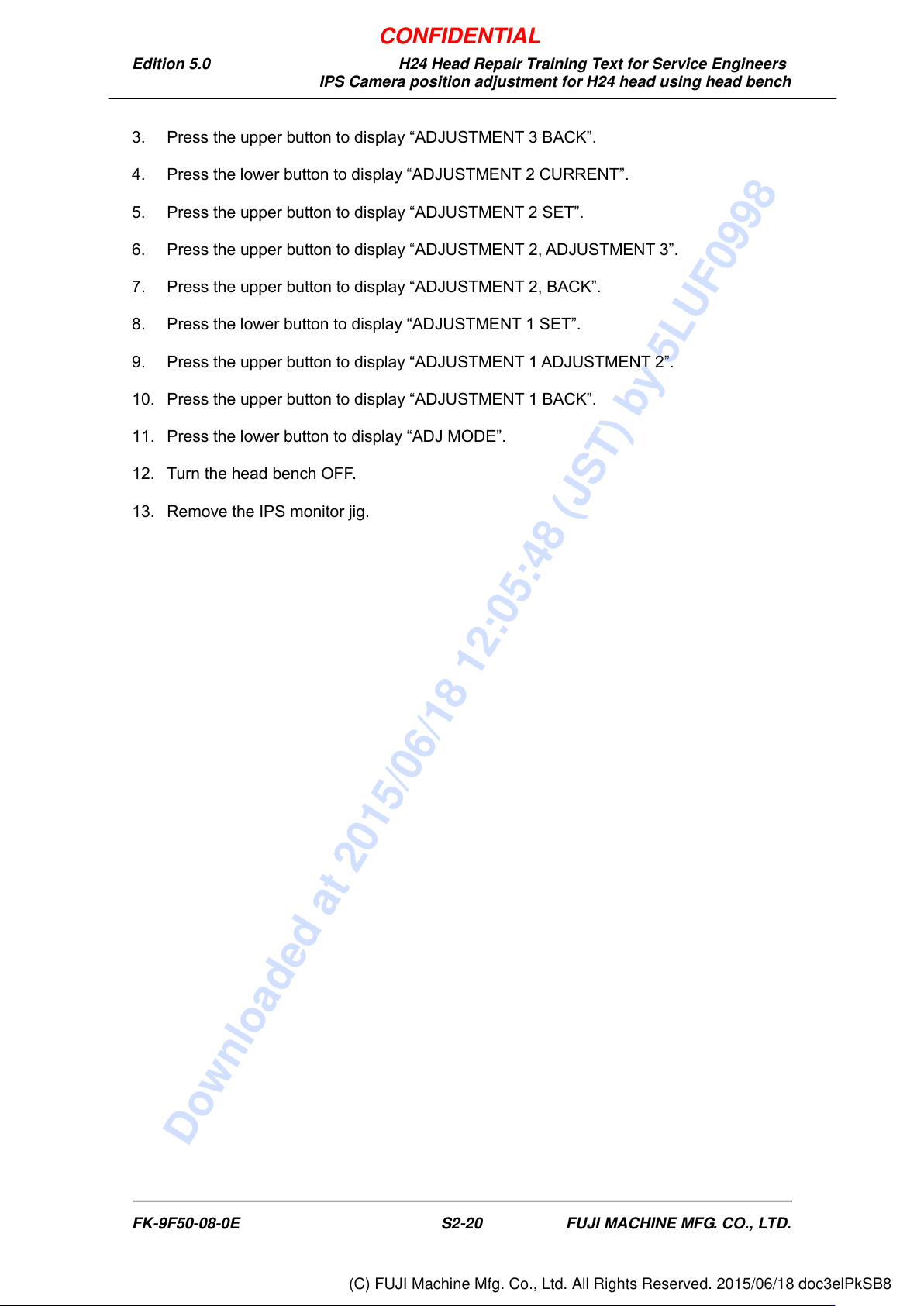

3. Press the upper button to display “ADJUSTMENT 3 BACK”.

4. Press the lower button to display “ADJUSTMENT 2 CURRENT”.

5. Press the upper button to display “ADJUSTMENT 2 SET”.

6. Press the upper button to display “ADJUSTMENT 2, ADJUSTMENT 3”.

7. Press the upper button to display “ADJUSTMENT 2, BACK”.

8. Press the lower button to display “ADJUSTMENT 1 SET”.

9. Press the upper button to display “ADJUSTMENT 1 ADJUSTMENT 2”.

10. Press the upper button to display “ADJUSTMENT 1 BACK”.

11. Press the lower button to display “ADJ MODE”.

12. Turn the head bench OFF.

13. Remove the IPS monitor jig.

FK-9F50-08-0E S2-20 FUJI MACHINE MFG. CO., LTD.
