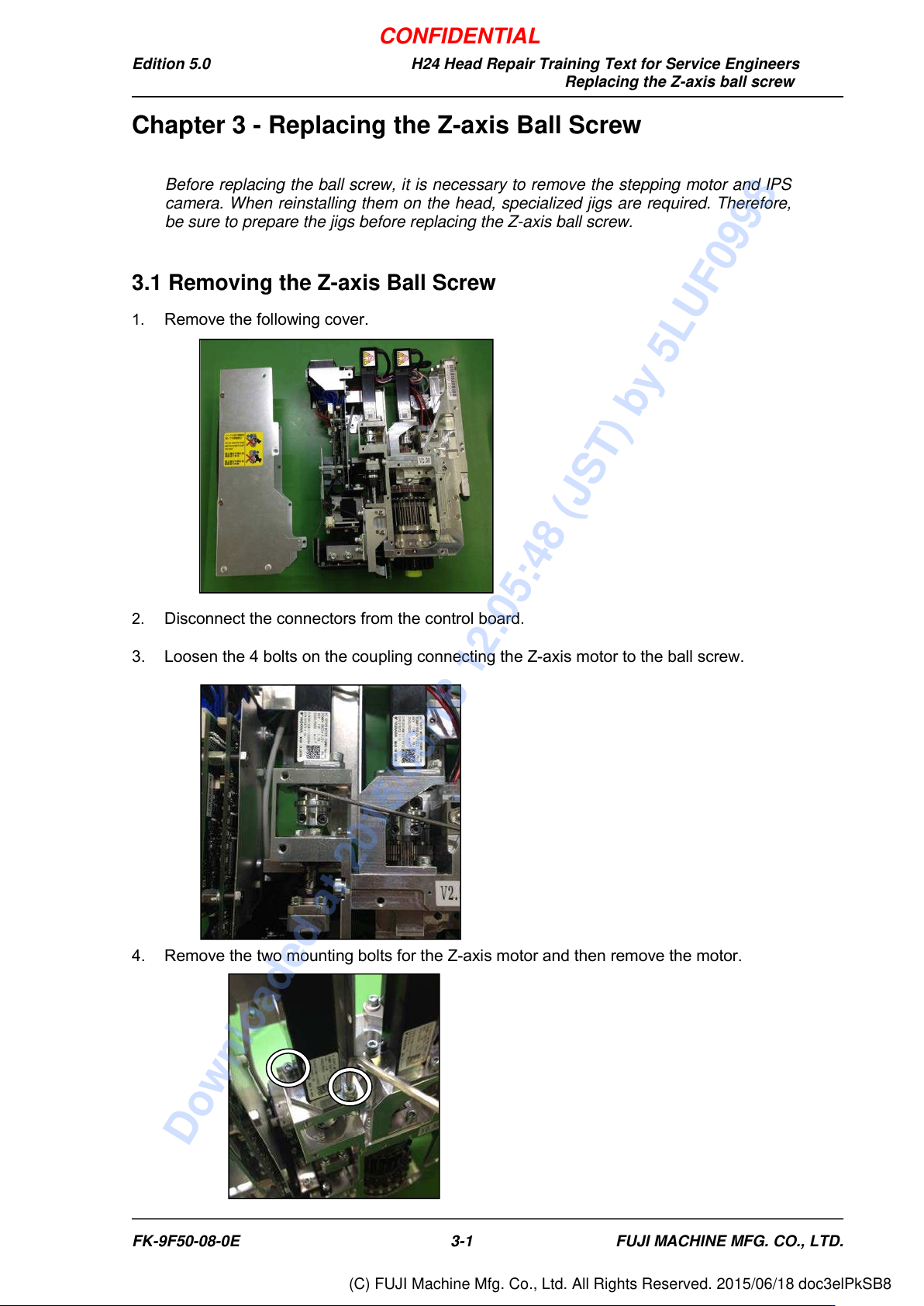

Edition 5.0 H24 Head Repair Training Text for Service Engineers
Replacing the Z-axis ball screw
Chapter 3 - Replacing the Z-axis Ball Screw
Before replacing the ball screw, it is necessary to remove the stepping motor and IPS
camera. When reinstalling them on the head, specialized jigs are required. Therefore,
be sure to prepare the jigs before replacing the Z-axis ball screw.
3.1 Removing the Z-axis Ball Screw
1. Remove the following cover.
2. Disconnect the connectors from the control board.
3. Loosen the 4 bolts on the coupling connecting the Z-axis motor to the ball screw.
4. Remove the two mounting bolts for the Z-axis motor and then remove the motor.
FK-9F50-08-0E
3-1
