Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-11 FUJI MACHINE MFG. CO., LTD.

Inspection item Tolerance Target value

Camera resolution

L: X = 92~108

L: Z = 92~108

Same as tolerance

Center value R: Xs = 380~400, Zp = 235~255

L: Xp = 80~100, Zp = 237~253

R: Xs = 390, Zp = 245

L: Xp = 90, Zp = 245

Tilt R: dX = 0~6, dZ = 0~9

L: dX = 0~6, dZ = 0~9

R: dX = 0, dZ = 0

L: dX = 0, dZ = 0

6. If the results are within tolerance, press the lower button to save the settings.

7. Once saving the settings, remove the jig nozzles (2AGKNJ001500).

Resolution

Center value

Tilt

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-12 FUJI MACHINE MFG. CO., LTD.

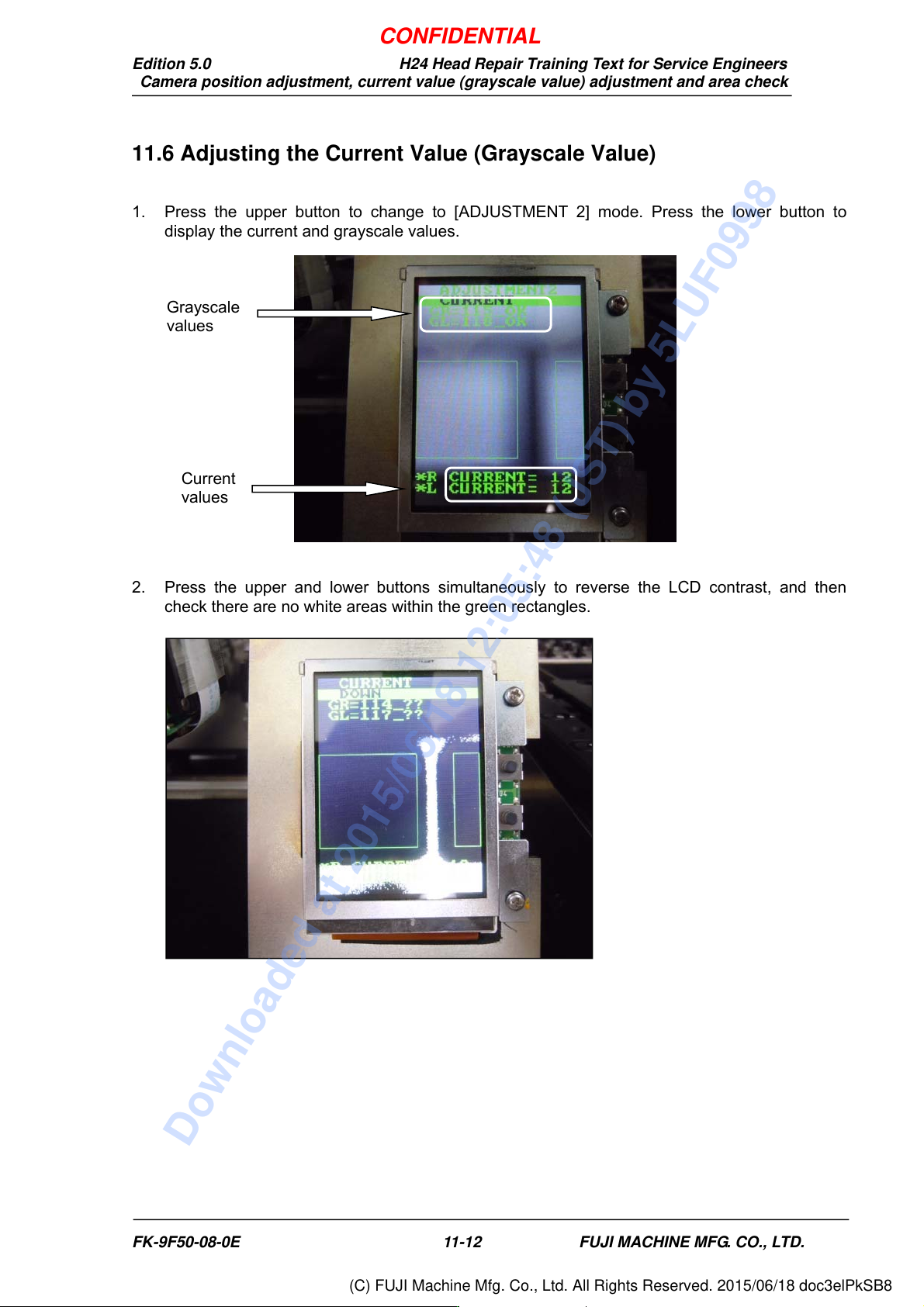

11.6 Adjusting the Current Value (Grayscale Value)

1. Press the upper button to change to [ADJUSTMENT 2] mode. Press the lower button to

display the current and grayscale values.

2. Press the upper and lower buttons simultaneously to reverse the LCD contrast, and then

check there are no white areas within the green rectangles.

Grayscale

values

Current

values

CONFIDENTIAL

Downloaded at 2015/06/18 12:05:48 (JST) by 5LUF0998

Edition 5.0 H24 Head Repair Training Text for Service Engineers

Camera position adjustment, current value (grayscale value) adjustment and area check

FK-9F50-08-0E 11-13 FUJI MACHINE MFG. CO., LTD.

3. Block the right-hand glass and check there is no effect on the left-hand area. Block the left-

hand glass and check there is no effect on the right-hand area.

4. Press the upper and lower buttons simultaneously to set the LCD contrast back to normal.

5. Rotate the R-axis through one full rotation and confirm that there is no position where the

variation in the grayscale values (GR and GL) is extreme. If the grayscale value is too big,

check the fluorescent status. If it is dirty, clean or replace it as necessary.

6. Rotate the R-axis by hand to find the positions where the grayscale values (GR and GL) are

maximized and minimized. Check that the minimum and maximum grayscale values are within

the tolerance of 120~160 (target: 120). Also check that the current value is 24mA or less.

7. If the grayscale values are not within the target values, adjust them as shown below.

8. Press the lower button to display “CURRENT UP” or “CURRENT DOWN”. When raising the

value, display “CURRENT UP” and press the lower button to adjust the value. When lowering

the value, display “CURRENT DOWN” and press the lower button to adjust the value.
