3.3. Axis Position

When the motion moves, you can check the position of X, Y, Z Axis and speed repeatability.

The axis is able to move to specific position repeatedly.

Location: Menu  Manual Motion  Axis Position

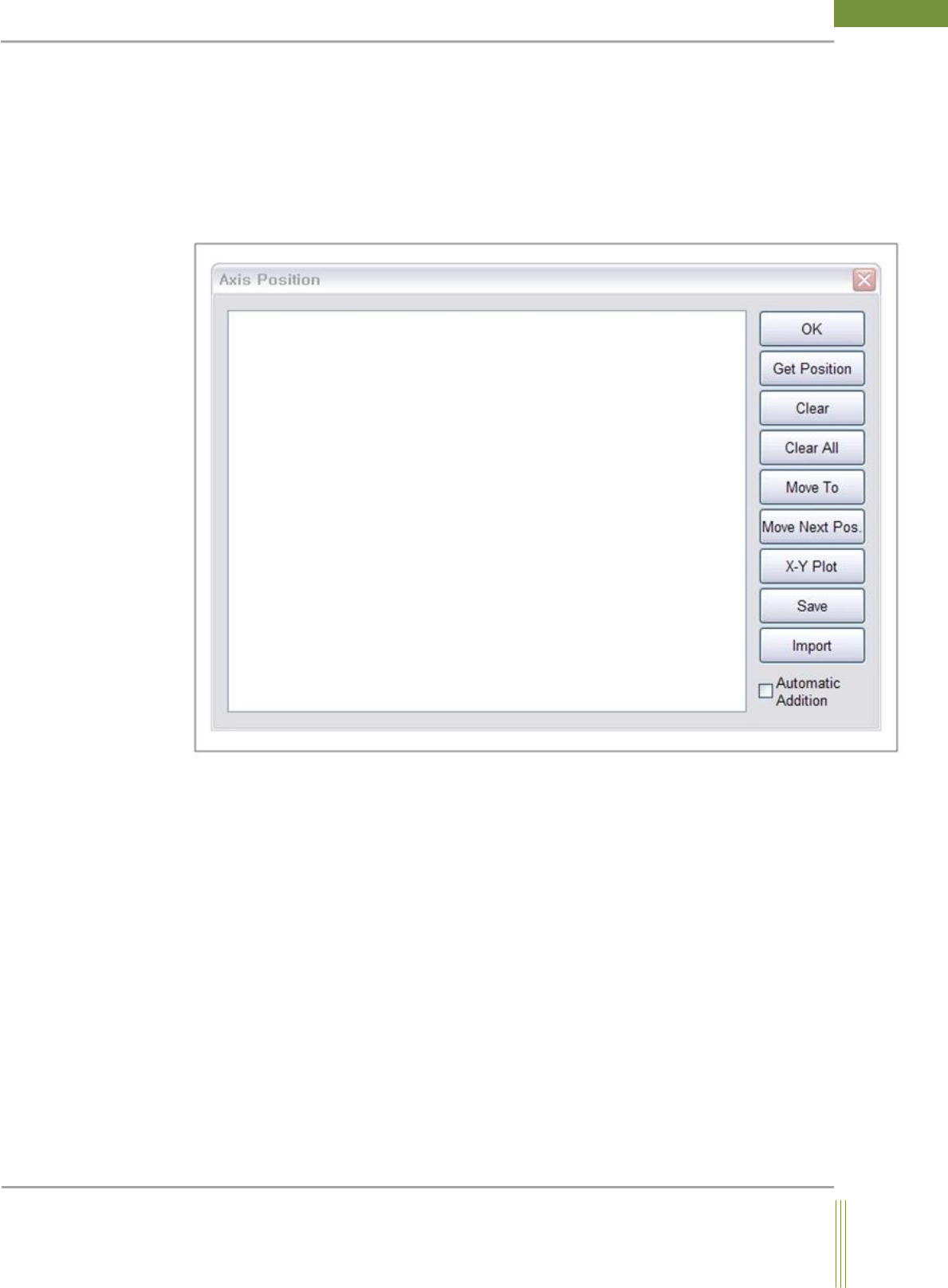

3.3.1. Axis Position Dialog

1. Get Position: It displays the current position of Motion

2. Clear: It clears up the log records in a line

3. Clear All: It clears up the records in Log window

4. Move To: When you click Move To button after clicking the log of that line, it moves to the

position.

5. Move Next Pos.: It moves to the next position

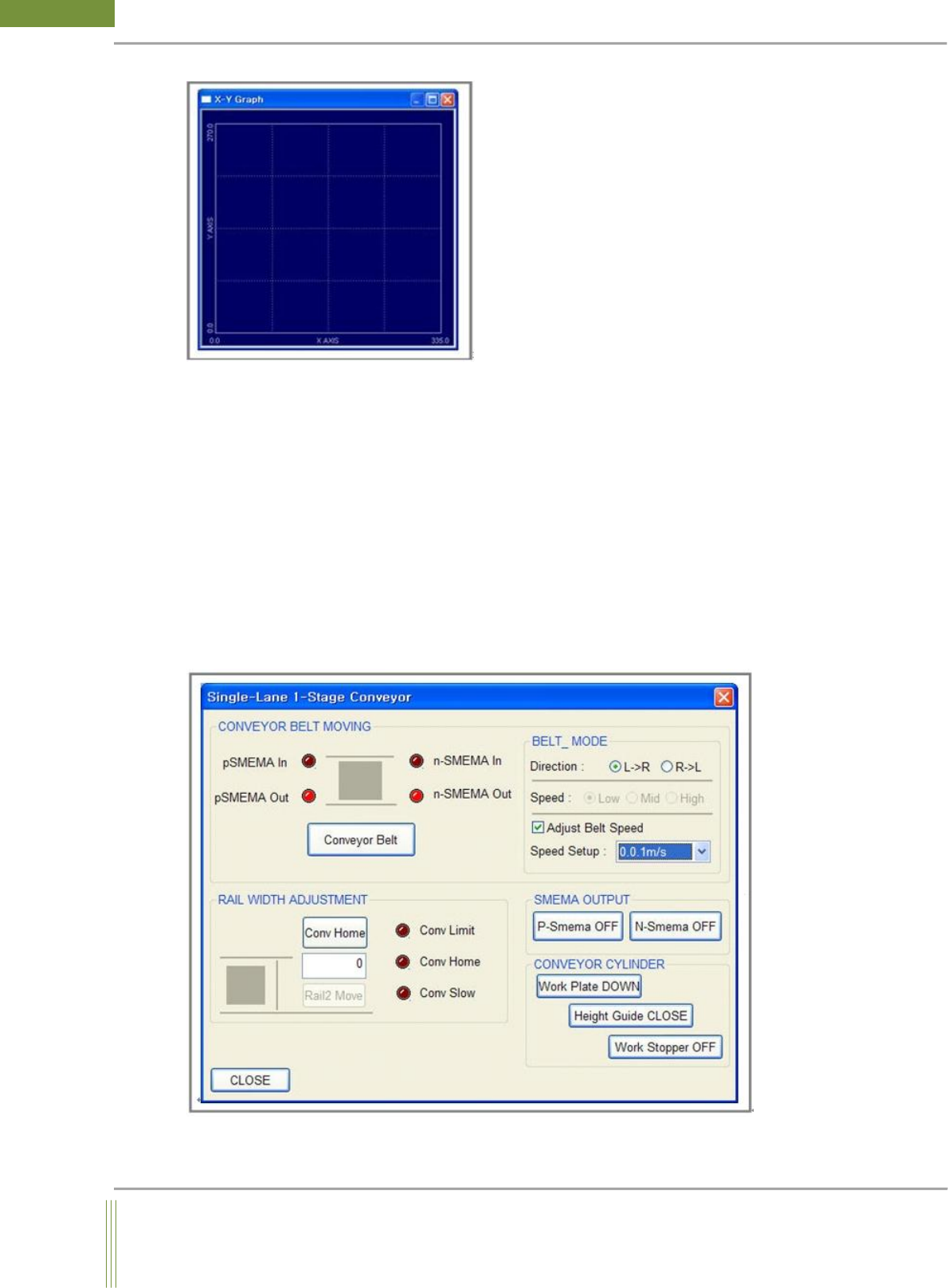

6. X-Y Plot: The following window is activated and it displays the moving line of motion.

If you click the following window, the motion moves to the position.

Service Manual

Koh Young Technology Inc.

7. Save: It saves the information displayed in the screen as a text file.

Location: C:\XYCodinate.log

8. Import: It imports the XYCodinate.log file on the screen.

9. Automatic Addition: After motion moving is completed, it is automatically updated on the

screen.

3.4. Conveyor Test(Single, Dual Lane)

It is used to test the movement of belt, stopper, plate and height guide installed on the

conveyor. You can check the width control of the Conveyor.

Location: Menu  Manual Motion  Conveyor Test

3.4.1. Conveyor Test Dialog

Figure 1. Single Lane

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

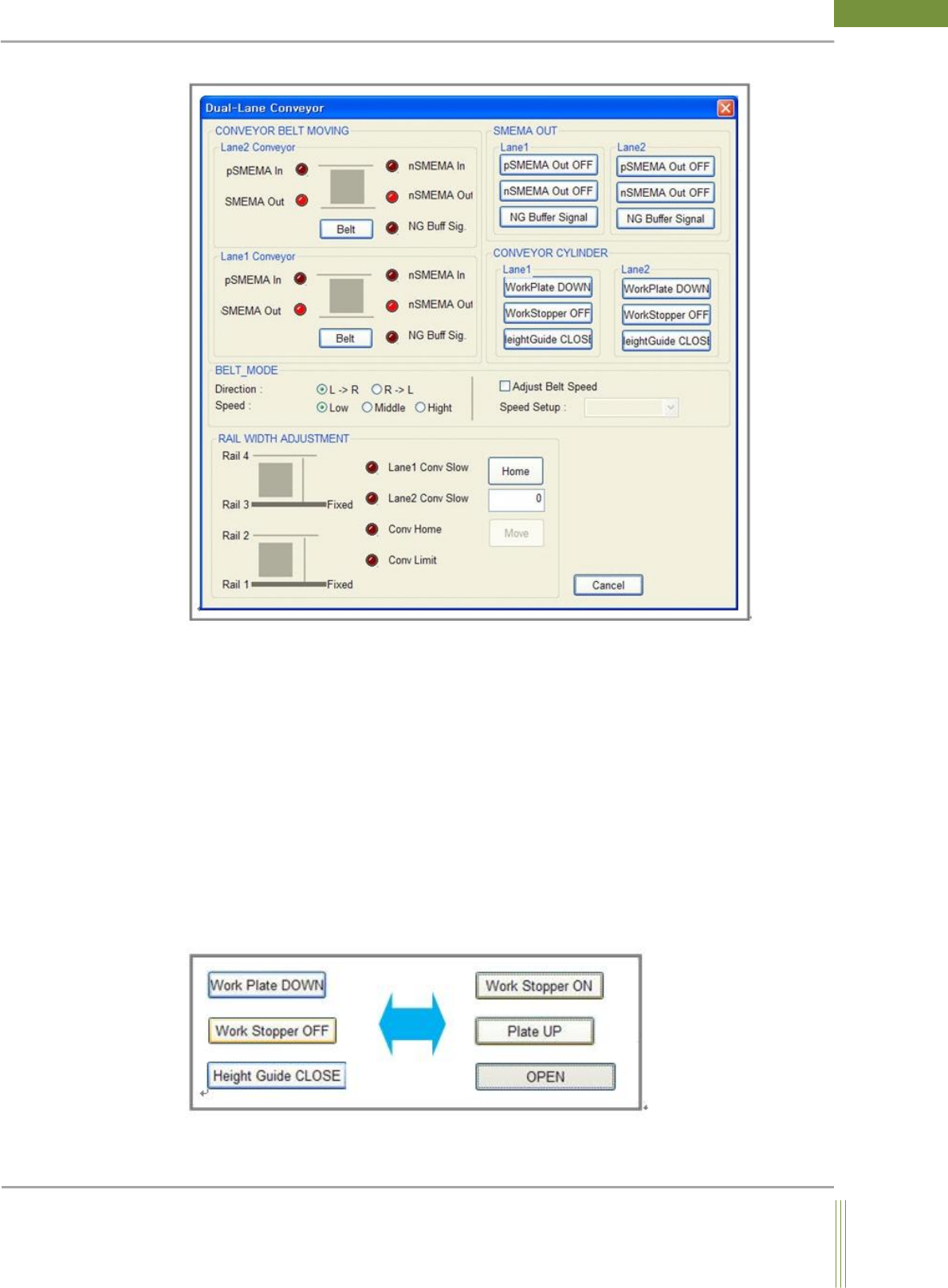

Figure 2. Dual Lane

1. CONVEYOR BELT MOVING

It shows Previous & Next SMEMA input/output signal. When Conveyor Belt button is

pressed, conveyor belt starts rotating by referring the setting of PCB flow direction and belt

speed.

2. RAIL WIDTH ADJUSTMENT

If Conv Home button is pressed, homing sequence of conveyor rail width will start, and

Rail2 Move button will be activated after the homing. Input the desired rail width in the

empty column and press Rail2 Move button so that it start adjusting the rail width as set in

the column.

3. CONVEYOR CYLINDER

You can manually control the conveyor cylinders such as Height Guide, Work Plate and

Work Stopper to check if it works properly.
