4.7. MULTI FIDUCIAL INSPECTION

It is setting for Multi Fiducial.

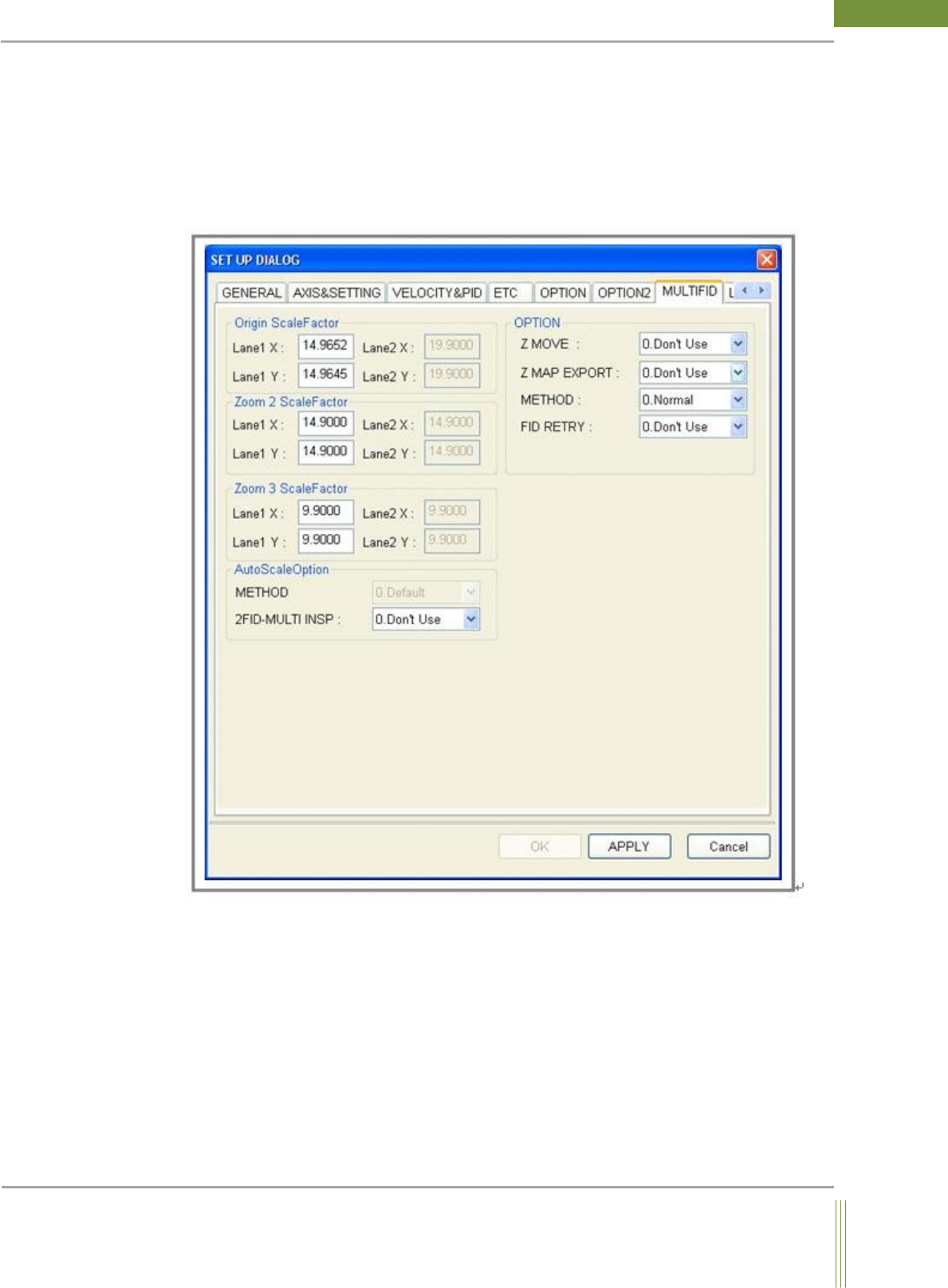

Location: Menu  Settings  SystemSettings  MULTIFID

4.7.1. MULTI FID

It is to set a function to inspect using Multi Fiducial.

Service Manual

Koh Young Technology Inc.

 ScaleFactor Setting

1. Origin ScaleFactor (Zoom 1 Position)

Input the machine ScaleFactor values which are set in GUI.

2. Zoom 2 Scalefactor

If Step Zoom option is used, input Zoom2 Position Scalefactor values.

If Step Zoom option is not used, no need to input this column.

3. Zoom 3 Scalefactor

If Step Zoom option is used, input Zoom3 Position Scalefactor values.

If Step Zoom option is not used, no need to input this column.

 2 Fiducial Auto Scale per Board

1. 2 FID MULTI INSP

0. Don’t Use: 2 Fiducial Auto Scale per Board is not used.

1. Default (Use): Using 2 fiducial marks to inspect scale.

2. 1 Fid (Use): Using 1 fiducial mark to inspect scale.

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

 Compensation Option

It is to set the compensation algorithm when Multi Fiducial inspection.

1. Z MOVE

0. Don’t Use: Used for the inspection with Multi Fiducial + Auto Scale factor. Z_Move is

not used. (Used when the warpage is not severely seen.)

1. Use: Used for the inspection with Multi Fiducial + Auto Scale factor + Z_Move

(Used when the warpage is severely seen)

2. Z MAP EXPORT

1. Use: When Multi + Auto Scale factor + Z_Move inspection are finished, PCB Z_Map .csv

file can be exported.

Path: C:\Kohyoung\KY-3030

3. Method: Compensation method

0. Normal: Using the shortest distance scale for warpage compensation

1. Plane Surface: Using the horizontal plane for warpage compensation

2. Avg Comp: Using the neighbor height of FOV for average warpage compensation

3. Spline Comp: Using B-Spline for warpage compensation

4. Spline + Plane: Using the horizontal plane & Spline for warpage compensation

4. FID RETRY:

This is a function to compensate warpage using Fiducial Z axis compensation. When the

warpage occurs at the fiducial position, it compensates it to the focusing position.

(maximum 3 times retry)

0. Don’t Use: The function of Fiducial Retry is not used.

1. Use: The function of Fiducial Retry is used.
