4.4. ETC SETTING

It is setting for the various exceptional cases.

Location: Menu  Settings  SystemSettings  ETC

4.4.1. ETC SETTING

Service Manual

Koh Young Technology Inc.

 NG Buffer Signal

 NG Sig. Type

Depending on the type of NG buffer, the sequence of NG signal is different. On Close Sig

mode, it stays Off signal when NG signal is not sent. When NG signal comes, the circuit is

closed and becomes On signal. (High) On Open Sig mode, it is the reverse of Close Sig

mode sequences.

 Pass Action Type

After inspection, When Pass button is pressed in Defect Viewer, it judges the result as

Good or NG by this action type.

0. NG -> NG:

When NG occurred after inspection, NG signal is sent during the PCB out when Pass

button is pressed.

When NG occurred after inspection, NG signal is sent during the PCB out when NG button

is pressed.

1. NG -> GOOD:

After inspection, if NG is occurred, NG Signal is not sent during the PCB out when Pass

button is pressed.

After inspection, if NG is occurred, NG Signal is sent during the PCB out when NG button

is pressed.

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

 NG Sig. Type

It is to set when NG signal should be terminated.

0. When PCB Out:

It is used for the type of Buffer that Kohyoung machine received NG signal and then send

Request Signal, When PCB is sent out from Kohyoung machine, NG signal is terminated.

1. When PCB nSmemain off:

It is used for the type of Buffer that Request signal is sent and then receive NG signal.

When Request signal (Next in Signal) is off, NG Signal is off as well.

2. When Next PCB Out:

NG signal is kept until the next PCB is coming to the entry of machine.

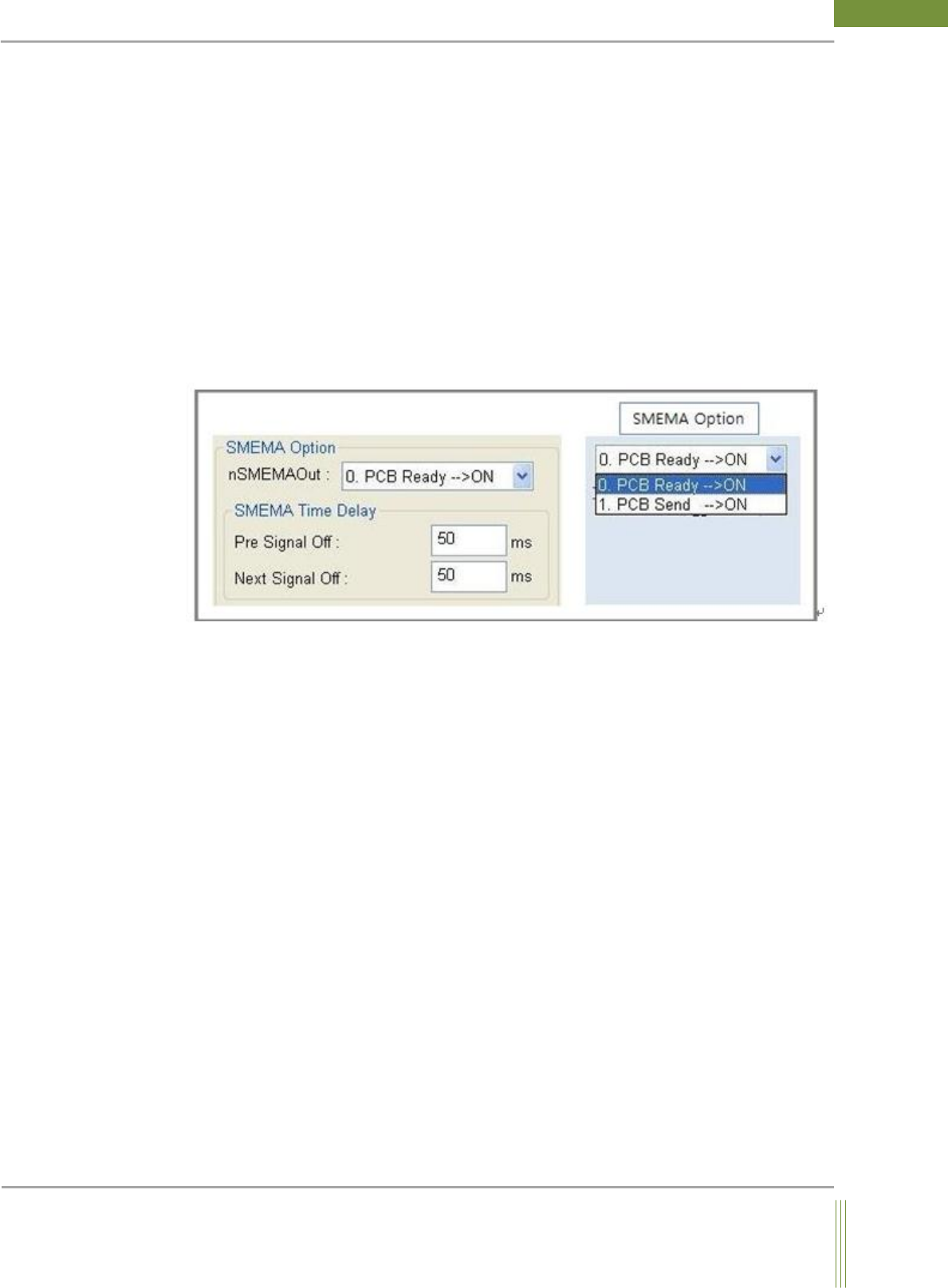

 SMEMA Option

1. SMEMA Option

0. PCB Ready -> ON:

After inspection is finished, ready signal is sent to next machine and receive Request signal

from next machine. Then, Stopper would go up, and conveyor belt would start running to

send the PCB out of machine. The time between Stopper Up and Belt running is defined

by “Stopper and Belt Delay” item in Inspection Ready time delay option.

1. PCB Send -> ON:

After inspection is finished, receive only Request signal from next machine. Then, Stopper

would go up, and conveyor belt would start running to send the PCB out of machine. The

time between Stopper Up and Belt running is defined by “Stopper and Belt Delay” item in

Inspection Ready time delay option.
