30 WinMCS_Manua l(ENG) rev 1.0 Koh Y oung T echnology Inc.  Machine Origin O ffset This is to use full stroke of each axis. When the probe mo ves to ( -)Limi t of X axis, (+)Limit of Y axis as foll owing picture, the ce…

Service Manual

Koh Young Technology Inc.

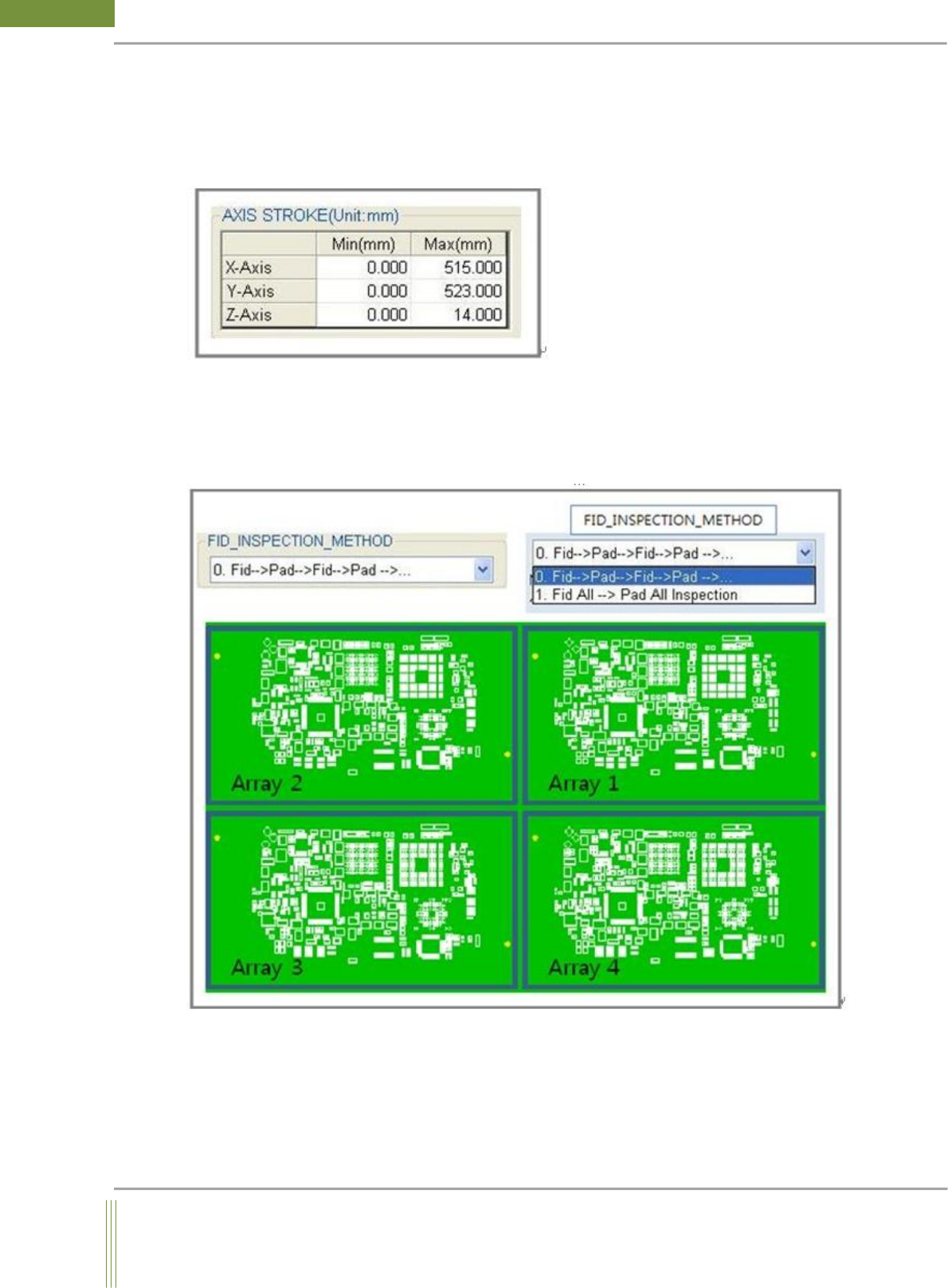

 AXIS STROKE(Unit. mm)

1. Set up the MIN/MAX motion range in X, Y, and Z axis. (Values differ from the machine type)

It serves an interlock function in S/W, and the movement command has to be set within this

range.

2. When you set AXIS STROKE, the range has to be set within the position of +, - Limit Sensor.

 FID_INSPECTION_METHOD

It is the order of fiducial mark inspection on array board.

0. Fid->Pad->Fid->Pad->…: Inspect the fiducial marks and start pad inspection on each array.

1. Fid All -> Pad All Inspection: After inspecting all fiducial marks in the board, pads are

inspected.

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

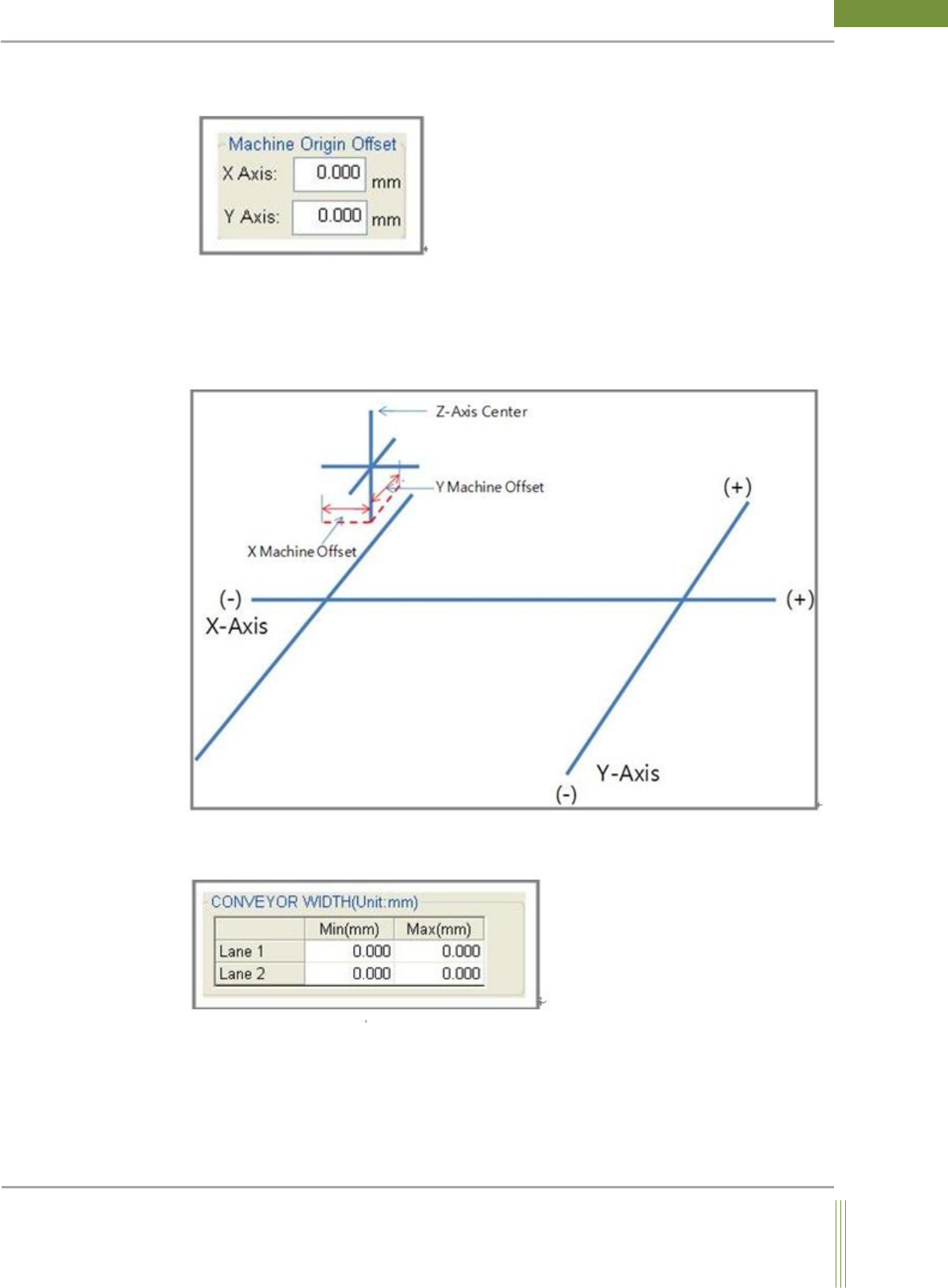

 Machine Origin Offset

This is to use full stroke of each axis. When the probe moves to (-)Limit of X axis, (+)Limit

of Y axis as following picture, the center of Z axis(probe) is not completely matched to the

Limit due to the nature of machine. The offsets, which occur here, are compensated in this

option. (Factory Setting)

 CONVEYOR WIDTH

When the rail width is adjusted, the limit of MIN/MAX rail width can be set here in this

item. If the values are not within min-max range when the conveyor width is adjusted,

errors occur.

Service Manual

Koh Young Technology Inc.

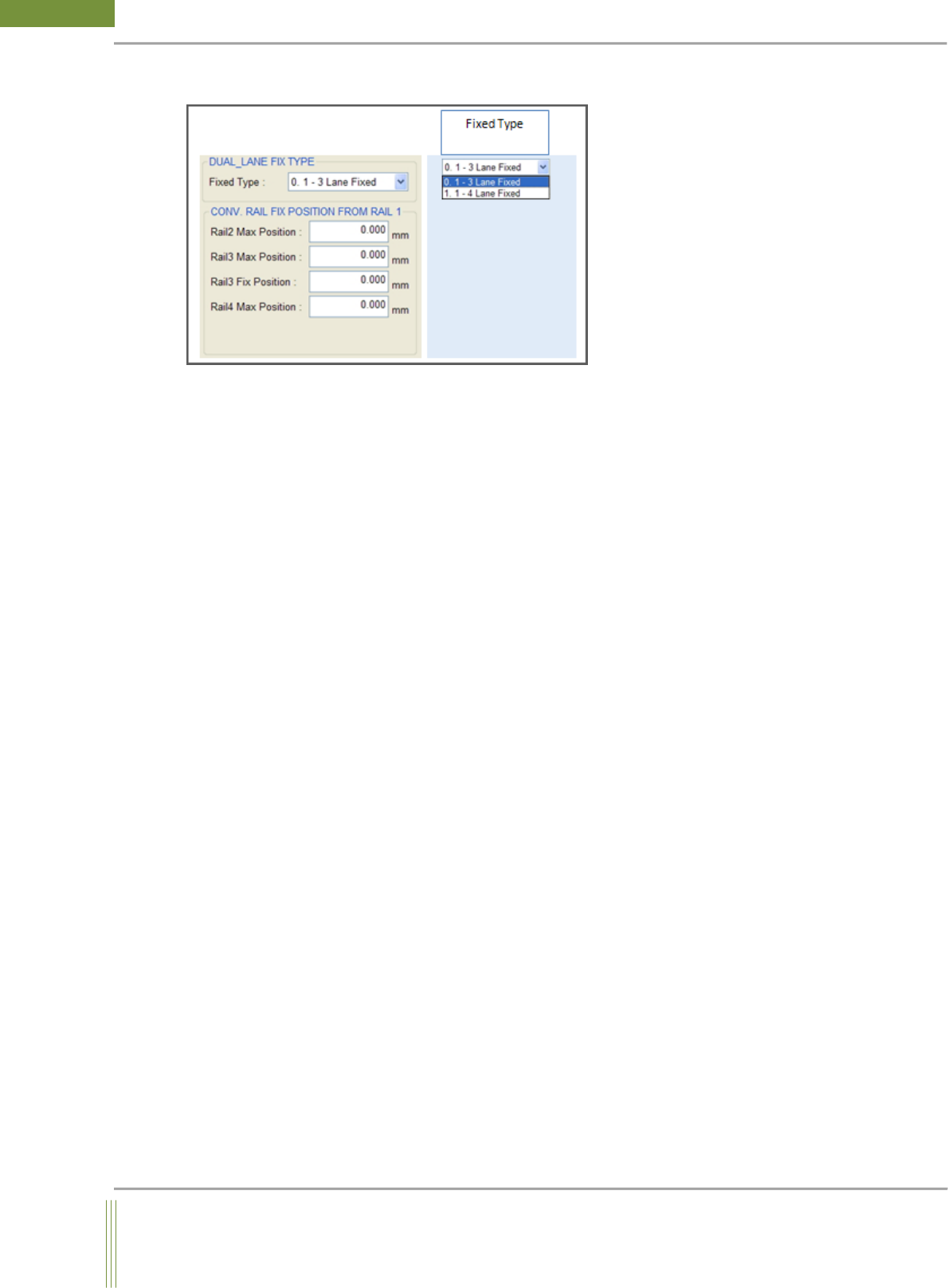

 DUAL LANE FIX TYPE & CONV. RAIL FIX POSITION

1. Fixed Type: It is to set the fixed rail of conveyor. (Dual Lane Option)

0. 1-3 Lane Fixed: No. 1 and No. 3 Lanes are fixed.

1. 1-4 Lane Fixed: No. 1 and No. 4 Lanes are fixed.

2. Fix Position, Max Position: This is to set the fixed position and maximum position of each

lane.
