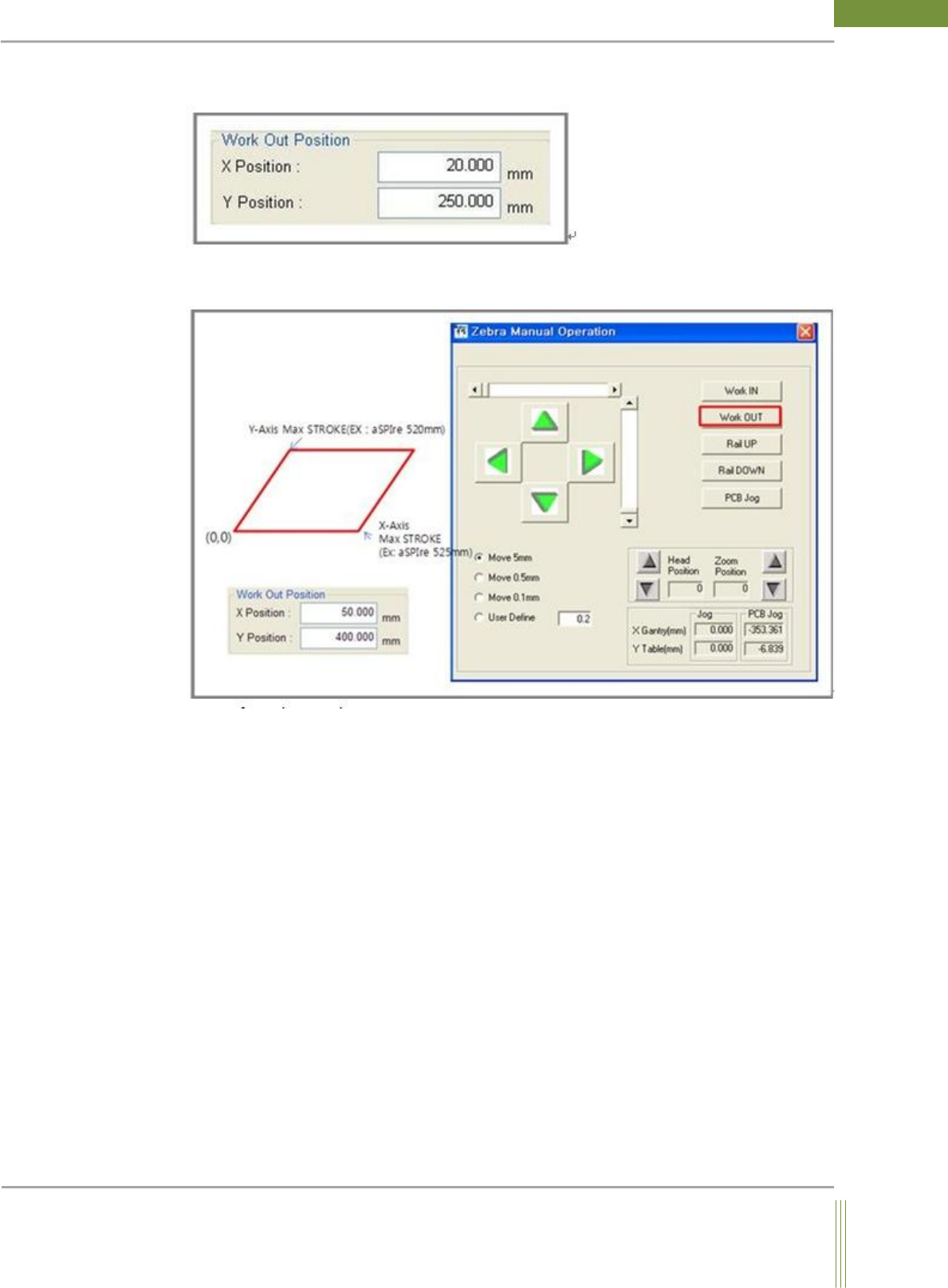

 Work out Position

Set the position of X, Y Motion when Work Out button is pressed.

Service Manual

Koh Young Technology Inc.

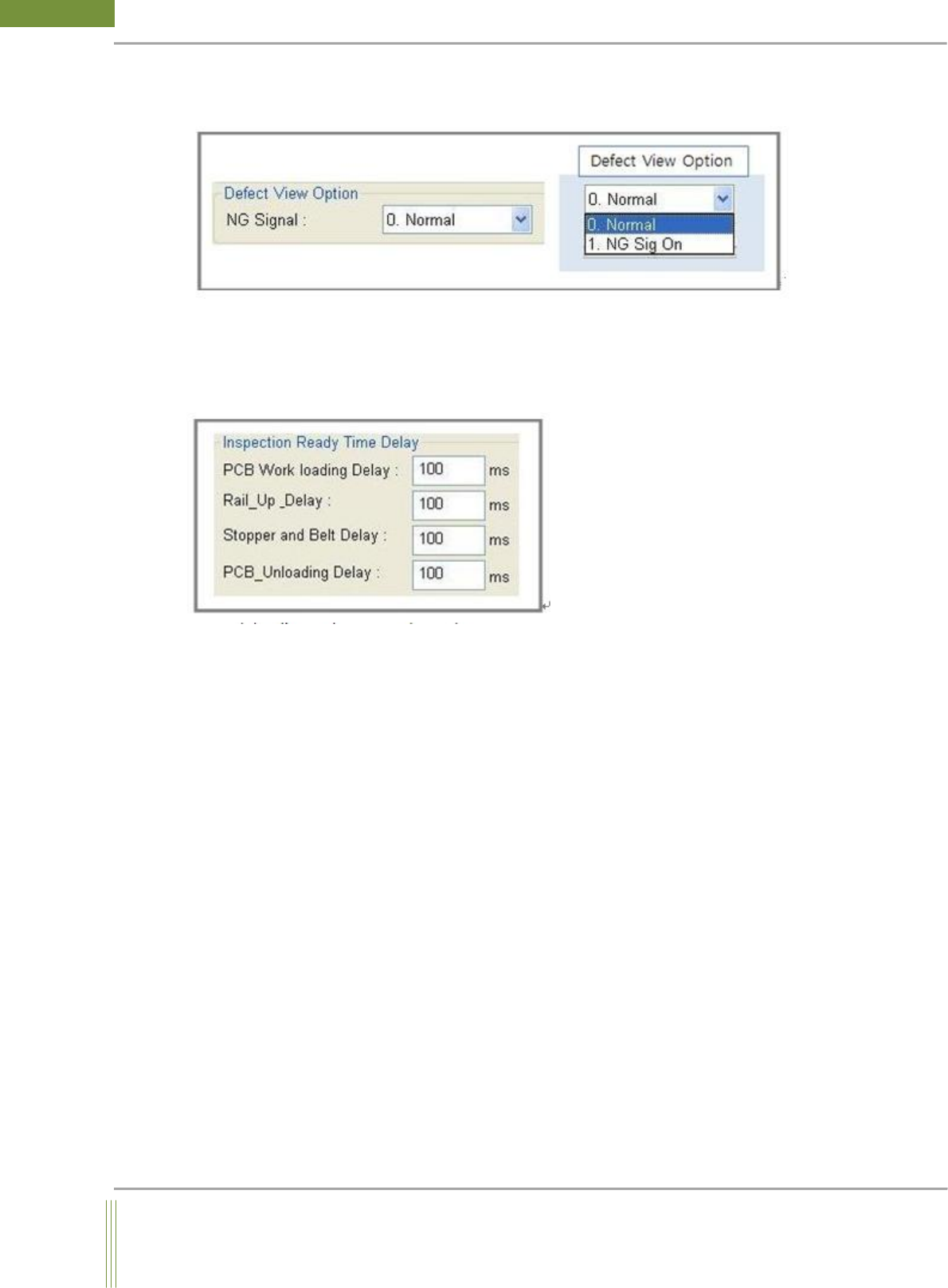

 Defect View Option

This is a setting for PCB out sequence option when a defect occurs after inspection.

Defect View Option:

0. Default:

1. NG Sig On: Not applicable yet

 Inspection Ready Time Delay

1. PCB Work loading Delay:

When a PCB come in Work conveyor, Work out sensor would detect the PCB. If the running

conveyor stops at this moment, the PCB would hit the stopper and move slightly backward

by force reaction. To avoid this problem, since a PCB is detected by Work out sensor, having

some delay time would make the PCB move forward on conveyor for a while after it is hit

by the stopper.

2. Rail_Up_Delay:

After PCB rail up, Probe at Work out position moving to the start position of inspection

need some times. Therefore, taking some delay time after rail up would help the machine

ready for fiducial inspection

WinMCS_Manual(ENG) rev1.0

Koh Young Technology Inc.

3. Stopper and Belt Delay:

If a PCB is sent out to the next machine right after the stopper is up, the solder pastes of the

PCB might get damaged by the stopper. To avoid this damage, it is recommended to take

some delay time and run the conveyor belt after Stopper is up

4. PCB_Unloading Delay:

When SMEMA signal is terminated, if the belt stops running right after the termination, the

target PCB might not move to the next machine in cases that the target PCB is heavy or the

level with next Mounter machine is not good. In these cases, having delay time on machine

might help the PCB move out on the conveyor smoothly.

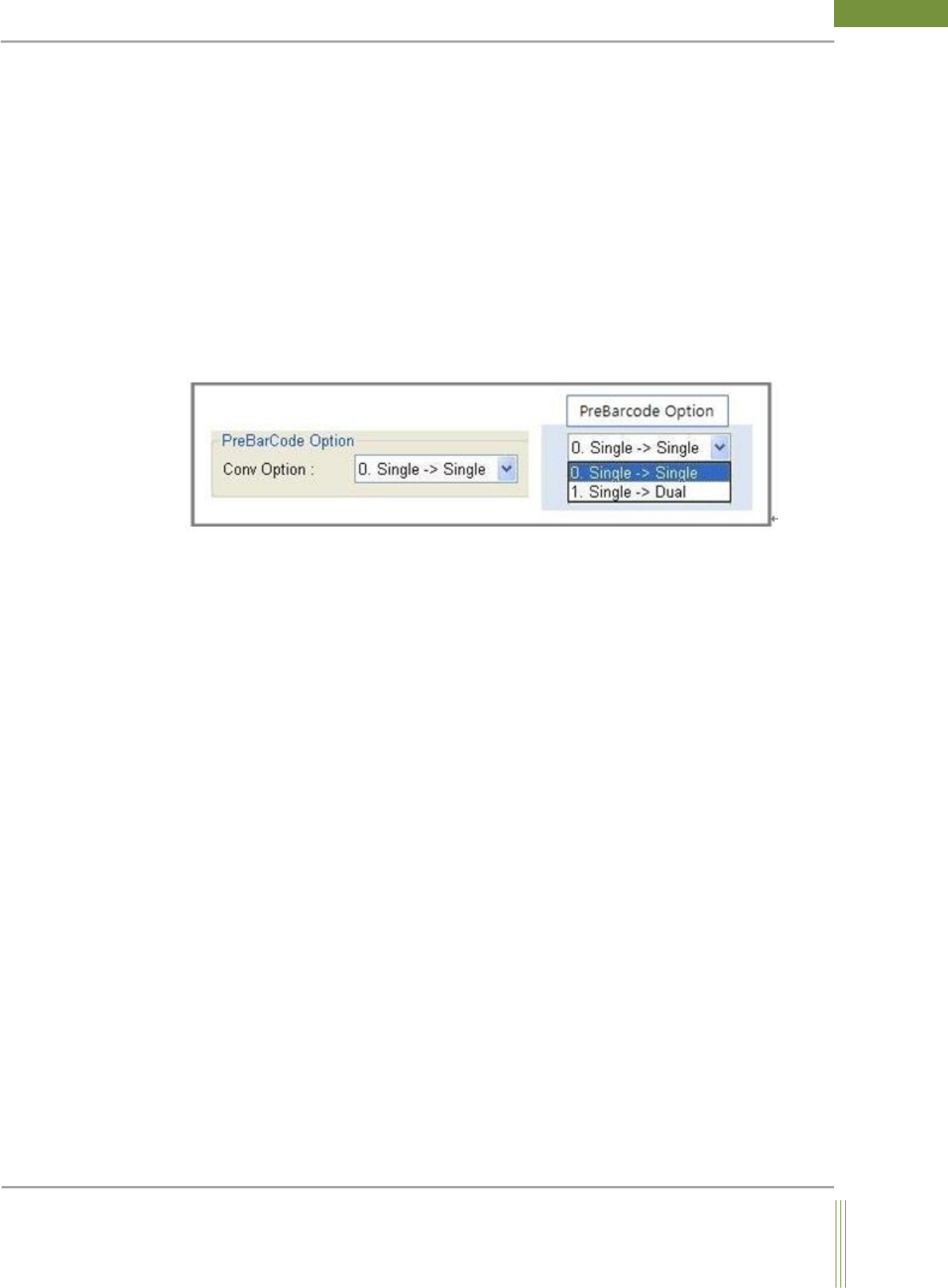

 PreBarcode option

Conv Option:

0. Single -> Single: Default Option

1. Single -> Dual: Option for Virtual DualLane (DualLane GUI, OneStage Conveyor)
