WinMCS_Manual(ENG) rev1.0
Koh Young Technology Inc.
Vacuum Holder Option (factory Setting)
If is a function for the settings when you install Vacuum Holder..
1. Vacuum Option:
0. UNUSE: Unuse Vacuum Option.
1. USE: Use Vacuum Option.
2. Blow Time:
It is to set Vacuum Blow Time.
3. Hold Time:
It is to set Vacuum Hold Time.
4. OPT Blow Port:
It is to set Vacuum Blow Output Port.
5. OPT Vacuum Port:
It is to set Vacuum Hold Port.
49
Service Manual
Koh Young Technology Inc.
Sol Sensor Option (factory Setting)
This is a option for sensor installation on the running system which is using sol.
1. Sensor Option :
0. Don’t Use: Do not use Sol Sensor Option.
1. USE: Use Sol Sensor Option.
2. Plate Time :
Rail Up/Down time시간 설정
3. Stopper Time :
Stopper Up/Down 시간 설정
Simultaneous Loading/Unloading Option(factory Setting)
1. Loading Type :
0. Sequential: Default Loading / Unloading Sequence.
1. Simultaneous: Simultaneous Loading / Unloading Sequence
50
WinMCS_Manual(ENG) rev1.0
Koh Young Technology Inc.

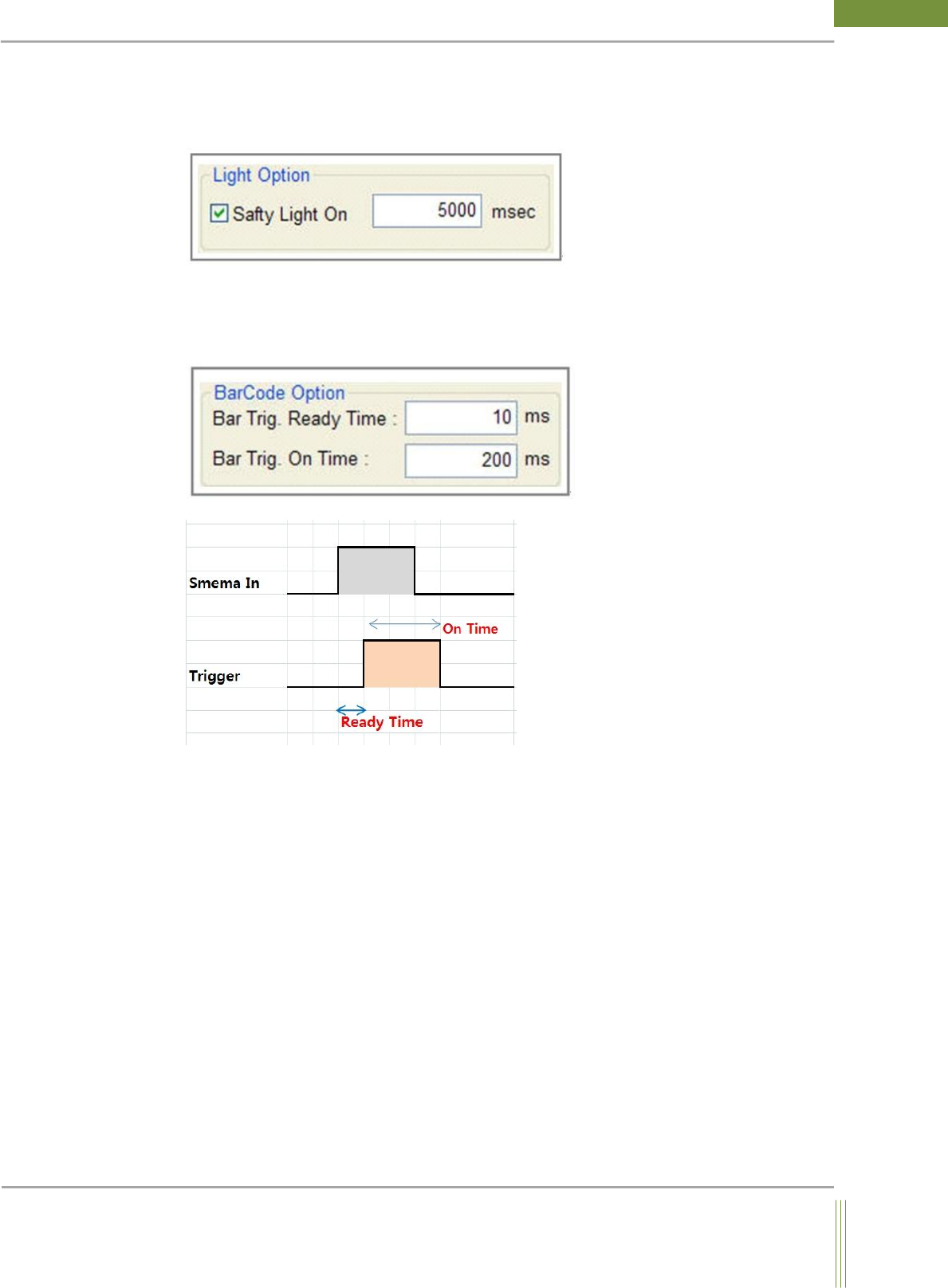

Light Safety Option(Light Option)
If 2D light is turned on for a certain time, the LED could be burned out. This function is to
turn the light off automatically if it is turned on over the arrowed time.
Safety Light On:
If 2D light is turned on for the set time, it is automatically turned off.
BarCode Trigger Option
It is the setting for the Barcode Trigger On Time. It maintains the OnTime for the set time.
1. Bar Trig. Ready Time:
After delaying the set time as above picture, sends Trigger Signal.
2. Bar Trig. On Time:
Sends On signal during the set time as above picture.
